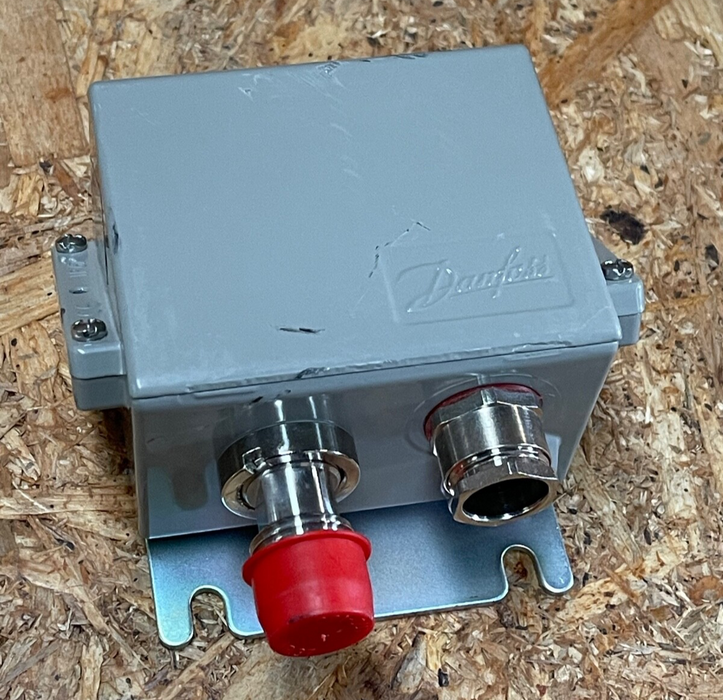

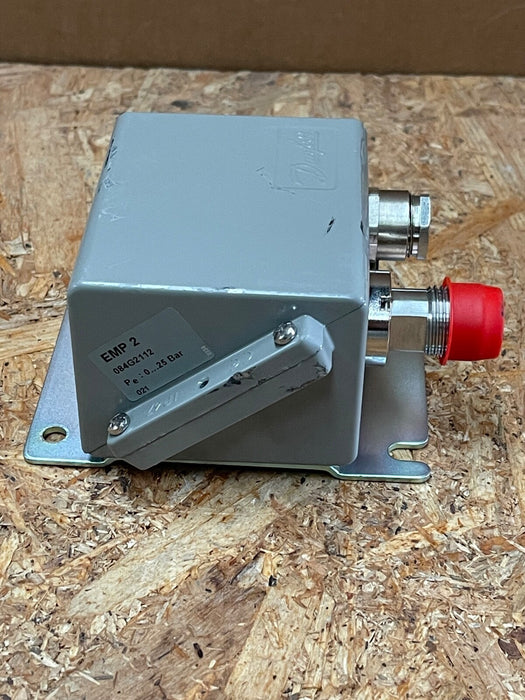

Danfoss – EMP 2 (084G2112) – Gauge Pressure Transmitter, 0–25 bar 4–20 mA Output

Main Features

• Manufacturer: Danfoss (EMP 2 series, box-type industrial transmitter)

• Model/MPN: EMP 2, part number 084G2112 – gauge‑relative pressure measurement

• Measuring Range: 0 to 25 bar (0–362.6 psi), suitable for hydraulic and marine applications

• Output Signal: 4–20 mA current loop for analog system integration

• Supply Voltage: 12–32 V DC (nominal 24 V DC operation)

• Pressure Connection: G ½ female (with combi G¼ as option) per EN 228‑1 standards

• Electrical Connection: Dual PG‑13.5 cable entries with internal terminal block

• Performance Specs:

  • Accuracy ±0.5 % FS (BFSL ±0.3% typ.)

  • Fast response ~4 ms

• Environmental Ratings:

  • Ambient: –10 °C to +70 °C

  • Process medium: –10 °C to +70 °C

  • Enclosure: IP65–IP67 rugged for harsh environments; approved for marine & industrial use (DNV, ABS, GL, RINA, CCS, BV, LR, NKK)

• Mechanical Details:

  • Robust metal housing with mounting bracket

  • Compact and durable for field installations
