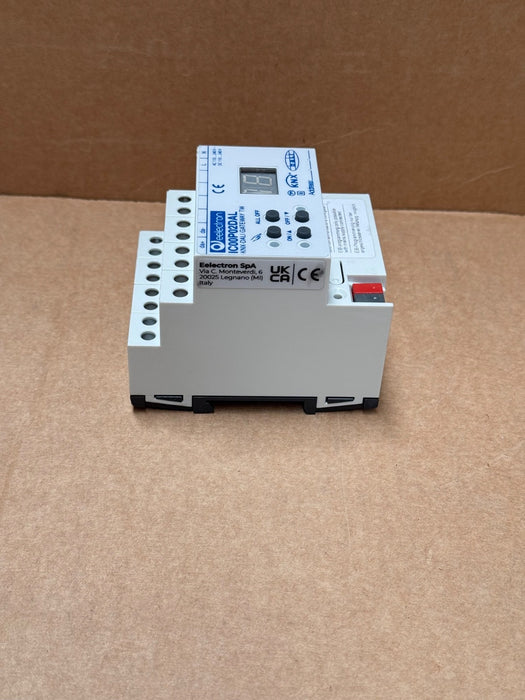

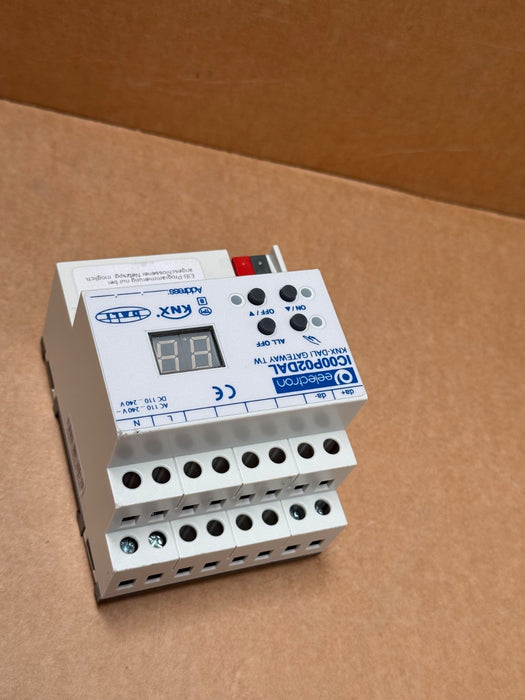

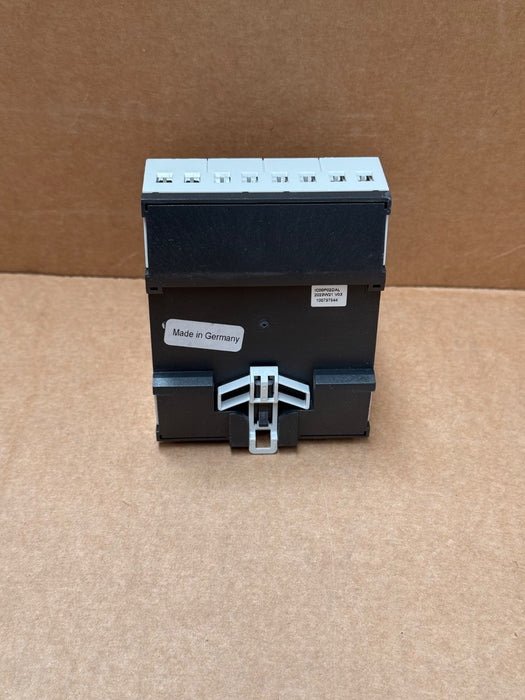

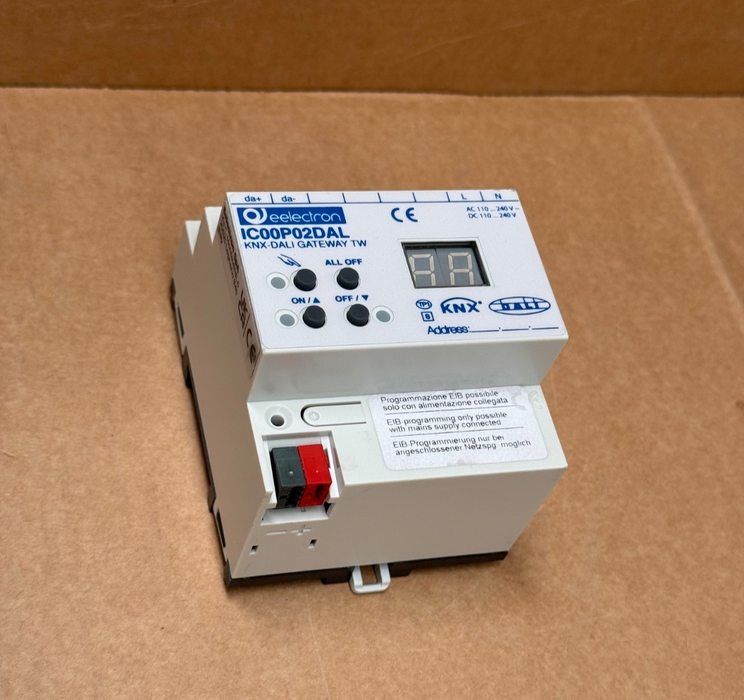

Eelectron – IC00P02DAL – KNX/DALI Gateway Tunable White, DIN‑Rail Interface

The Eelectron IC00P02DAL is a KNX/DALI gateway interface (DALI Device Type 8 for Tunable White) that bridges KNX bus systems with DALI lighting networks. It supports up to 64 DALI ballasts, 32 independently addressable groups, and full colour-temperature control, ideal for intelligent lighting solutions in smart buildings and commercial projects.

Key Features:

• Model: IC00P02DAL (KNX/DALI Gateway Tunable White) ()

• DALI Control: Switch, dim, and tune white across 64 devices or up to 32 groups; supports absolute/relative dimming & scenes

• KNX Bus Powered: No external supply – powered via KNX (≤ 4 mA)

• DIN‑Rail Mounting: 4-module, IP20 enclosure with KNX/Programming button & LEDs

• Tunable White (DT8): Provides independent colour-temperature and brightness control per DALI‑2 standards

• Multi-mode Addressing: Up to 6 addressing options for flexible group/device setup
