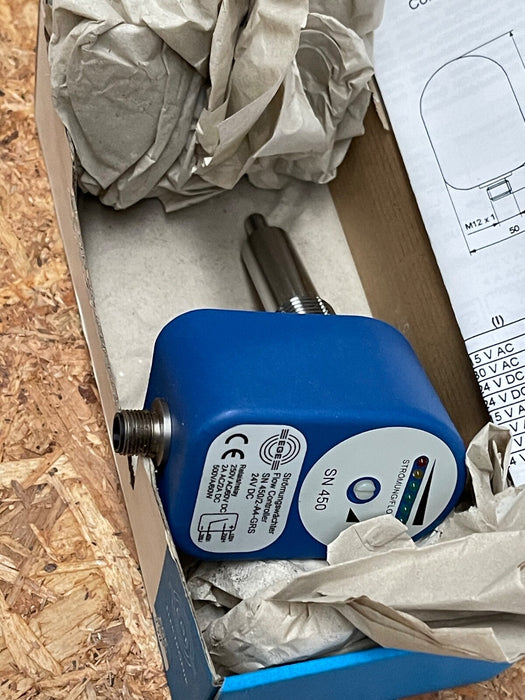

EGE Elektronik - SN 450/2-A4-GRS - Thermodynamic Flow Controller, G1/2”, 24 V DC

The EGE Elektronik SN 450/2-A4-GRS is a thermodynamic flow controller designed for monitoring the flow of liquids such as water and oil in industrial applications. Utilizing the thermodynamic measurement principle, this sensor provides reliable detection of flow rates, ensuring optimal performance in various systems.

Key Features:

• Model: SN 450/2-A4-GRS

• Brand: EGE Elektronik

• Sensor Type: Thermodynamic Flow Controller

• Detection Range:

  • Water: 1–150 cm/s

  • Oil: 3–300 cm/s

• Output Type: Relay Output

• Supply Voltage: 24 V DC ±20%

• Current Consumption: <80 mA

• Switching Voltage: Max. 250 V AC / 60 V DC

• Switching Current: Max. 4 A AC / 4 A DC

• Switching Power: Max. 1000 VA / 60 W

• Sensor Length: 80 mm

• Thread Size: G1/2”

• Medium Temperature Range: -20°C to +80°C

• Ambient Temperature Range: -20°C to +70°C

• Compressive Strength: 100 bar

• Protection Rating: IP67

• Housing Material: PBT (Polybutylene Terephthalate)

• Sensor Material: AISI 316 Ti Stainless Steel

• Connection: 2 m PVC Cable, 5×0.5 mm²

• Display: LED Array for Flow Indication

• Applications: Ideal for monitoring flow in cooling circuits, lubrication systems, and other industrial liquid flow applications
