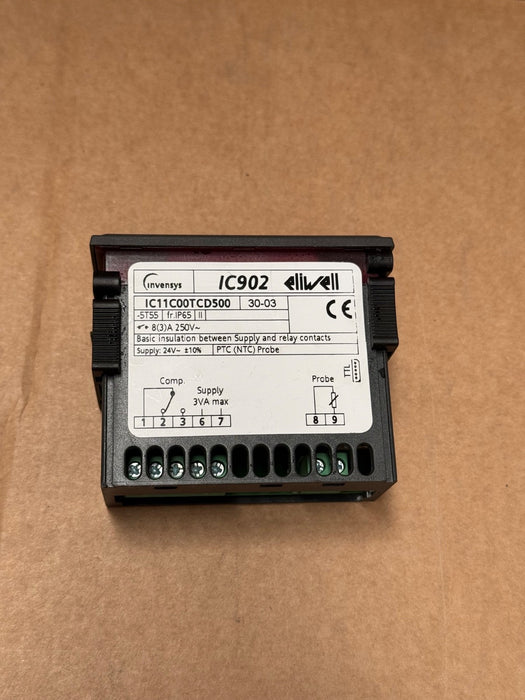

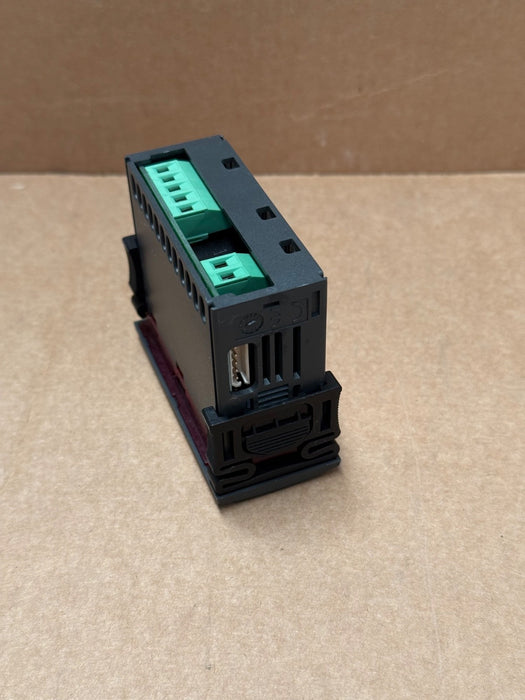

Eliwell – IC11C00TCD500 – IC 902/902P Temperature Controller, 24 VAC, 8 A Relay

The Eliwell IC11C00TCD500 (IC 902 series) is a single-intervention temperature controller powered by 24 VAC. It supports PTC or NTC sensor input, features a single SPDT relay output rated at 8 A/250 VAC, and offers cold-only control with selectable decimal precision—designed for refrigeration, HVAC, and simple process control tasks.

Key Features:

• Model: IC11C00TCD500 (IC 902, 24 VAC, 8 A relay)

• Power Supply: 24 VAC

• Sensor Input: Configurable PTC or NTC probe (probe not included) ()

• Output: 1 × SPDT relay, 8 A @ 250 VAC

• Function: Cold-only control mode, selectable decimal display

• Compatible Format: IC 902 panel, 74 × 32 mm panel cut-out

• Use Cases: Refrigeration evaporator, condensing unit, or controlled cooling systems
