Entrelec – BFM12D 20023.15 – DIN‑Rail Diode Module, 250 V AC/DC, 1 A, 12‑diode

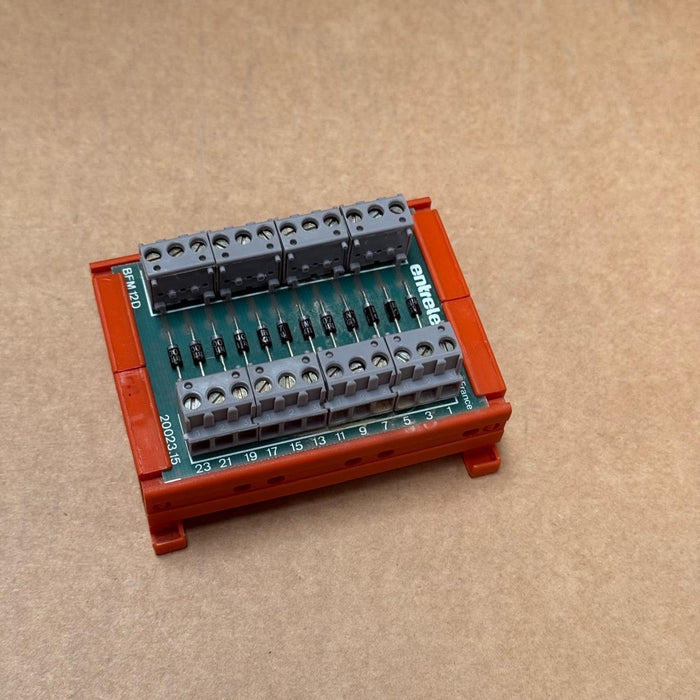

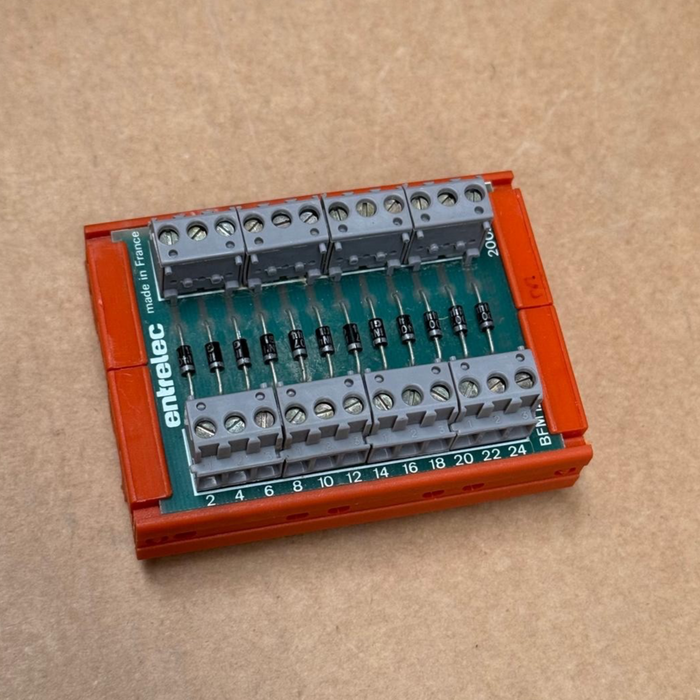

The BFM12D 20023.15 from Entrelec is a compact DIN-rail mounted diode module designed for signal bussing, reverse polarity protection, and relay coil safeguarding in automation and control systems. It contains 12 1N4007 diodes and accepts industrial-grade voltages up to 250 VAC/DC.

Key Features:

• Model: BFM12D

• Part No.: 20023.15

• Configuration: 12 diodes (1N4007) in a module with common anode/cathode setup

• Voltage Rating: 250 VAC / 250 VDC; diodes rated 1000 V peak, 1 A current

• Length: 83.6 mm (3.30 in)

• Connection: Screw-clamp terminals supporting up to 2.5 mm² wire

• Housing: Self-extinguishing polyamide on epoxy-glass base; UL/VDE/CSA certified

• Functions: Signal bussing, decoupling, reverse voltage protection, relay coil shielding
