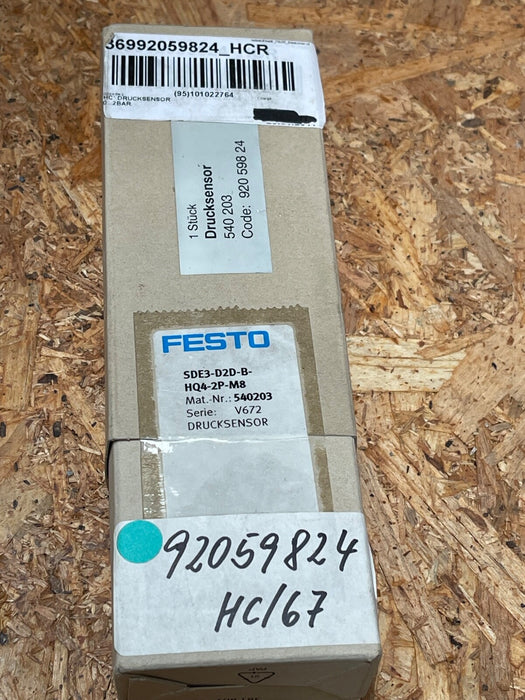

Festo - 540203 - SDE3-D2D-B-HQ4-2P-M8 Pressure Sensor, 0–2 bar, 2x PNP, LCD

The Festo SDE3-D2D-B-HQ4-2P-M8 (Part No. 540203) is a compact piezoresistive pressure sensor designed for precise monitoring of compressed air systems. With dual independent relative pressure inputs and two programmable PNP switching outputs, it offers reliable performance in various industrial applications. The sensor features an illuminated LCD display for clear readouts and supports H-rail mounting for easy installation.

Key Features:

• Model: SDE3-D2D-B-HQ4-2P-M8

• Part Number: 540203

• Brand: Festo

• Pressure Range: 0 to 2 bar (2x relative pressure inputs)

• Output: 2x PNP switching outputs, freely programmable

• Display: Illuminated LCD with yellow switching status indication

• Accuracy: ±2% FS

• Repeatability: ±0.3%

• Hysteresis Setting Range: 0% to 90%

• Threshold Setting Range: 0% to 100%

• Electrical Connection: 4-pin M8x1 plug (EN 60947-5-2)

• Voltage Supply: 15 to 30 V DC

• Max Output Current: 100 mA

• Protection: IP65, reverse polarity and short-circuit protection

• Mounting: H-rail or through-hole

• Pneumatic Connection: QS-4 push-in connector (4 mm)

• Operating Medium: Compressed air per ISO 8573-1:2010 [7:4:4]

• Temperature Range: 0°C to 50°C

• Housing Material: Reinforced PA/PC

• Weight: Approximately 37 g

• Certifications: CE, RoHS, c UL us, RCM

• Applications: Ideal for monitoring and controlling compressed air in automation systems, ensuring optimal performance and energy efficiency.
