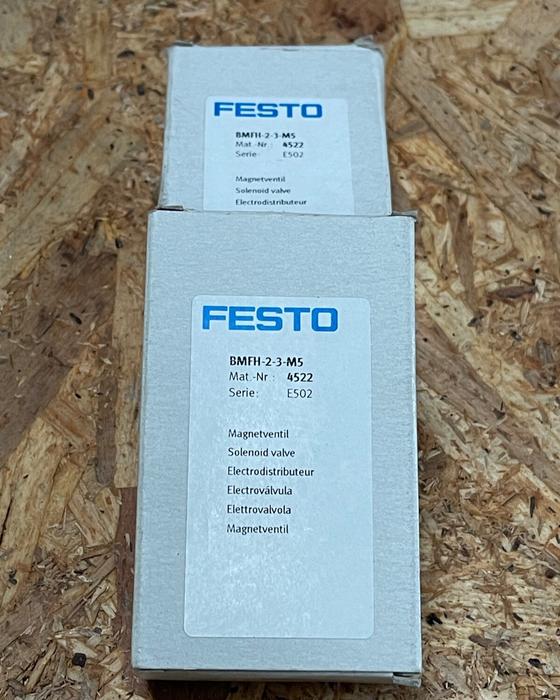

Festo - BMFH-2-3-M5 (4522) - 2x3/2-Way Solenoid Valve, M5 Ports, 50 l/min

The Festo BMFH-2-3-M5 (Part No. 4522) is a compact, electrically actuated solenoid valve designed for precise control of pneumatic systems. Featuring two 3/2-way monostable functions, this valve offers reliable switching with a standard nominal flow rate of 50 l/min. Its M5 pneumatic ports and robust design make it suitable for various industrial automation applications.

Key Features:

• Model: BMFH-2-3-M5

• Part Number: 4522

• Brand: Festo

• Valve Function: 2x 3/2-way, monostable, closed

• Type of Actuation: Electric

• Standard Nominal Flow Rate: 50 l/min (DIN 1343)

• Operating Pressure: 0 to 8 bar

• Pneumatic Working Ports: M5

• Reset Type: Mechanical spring

• Design Structure: Poppet valve with spring return

• Manual Override: Non-detenting

• Mounting Position: Any

• Ambient Temperature Range: -10°C to +60°C

• Medium: Compressed air, filtered, lubricated or non-lubricated

• Body Material: Anodized aluminum

• Sealing Material: NBR

• Protection Class: IP65 with plug socket

• Electrical Connection: Via plug socket to DIN EN 175301-803, form B

• Applications: Ideal for controlling single-acting cylinders, actuators, and other pneumatic devices in automation systems
