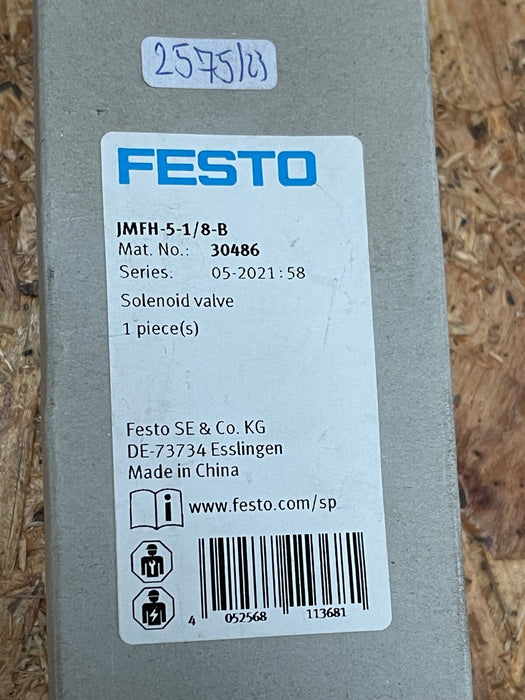

Festo - JMFH-5-1/8-B - 5/2 Bistable Solenoid Valve, G1/8”, 1000 L/min - 30486

The Festo JMFH-5-1/8-B (Part No. 30486) is a 5/2-way bistable (double solenoid) solenoid valve designed for pneumatic applications requiring high flow rates and reliable switching. With G1/8” ports and a compact form factor, it is ideal for controlling double-acting actuators in industrial automation systems.

Key Features:

• Model: JMFH-5-1/8-B

• Brand: Festo

• Part Number: 30486

• Valve Type: 5/2-way bistable (double solenoid)

• Port Size: G1/8”

• Nominal Flow Rate: 1000 L/min

• Operating Pressure: 2 to 10 bar

• Actuation Type: Electric (via F coil, ordered separately)

• Mounting: PR rail or through-hole mounting

• Manual Override: Non-detenting

• Construction Width: 26 mm

• Nominal Size: 8 mm

• Sealing Principle: Soft sealing

• Material: Die-cast aluminum housing with NBR seals

• Ambient Temperature: –5 °C to +40 °C

• Media Temperature: –10 °C to +60 °C

• Applications: Suitable for pneumatic automation tasks requiring rapid and repeatable actuator control.
