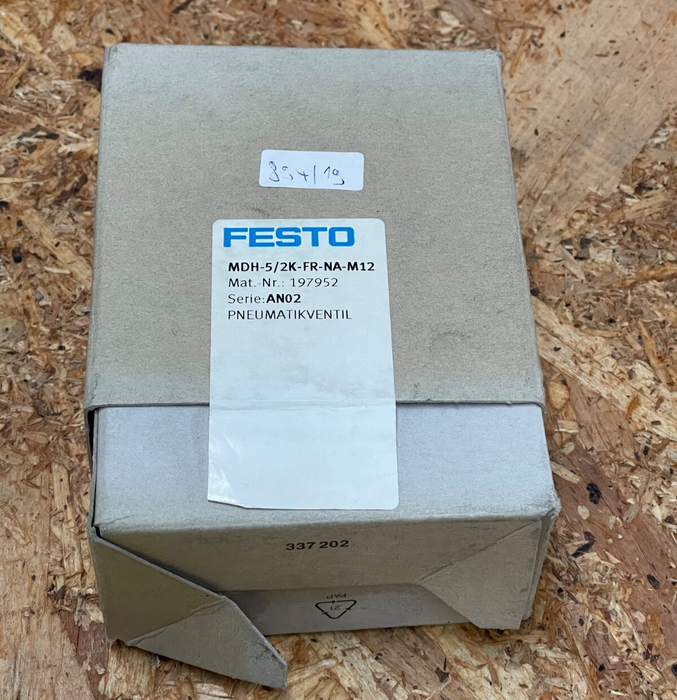

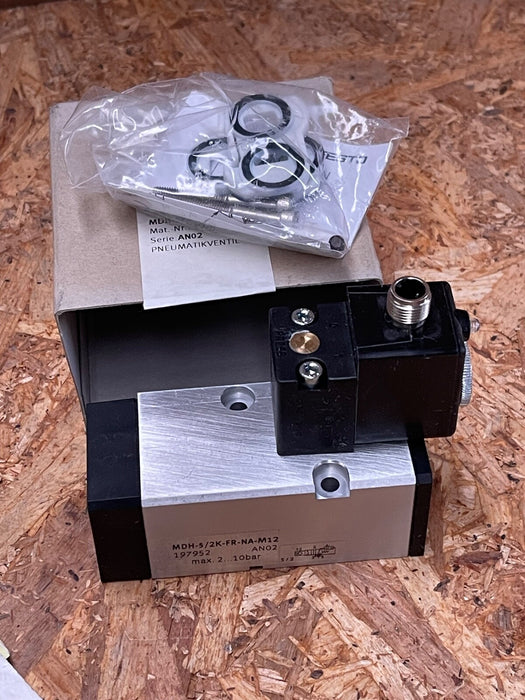

Festo - MDH-5/2K-FR-NA-M12 - 5/2-Way Solenoid Valve, Monostable, 24 V DC

The Festo MDH-5/2K-FR-NA-M12 is a compact 5/2-way solenoid valve designed for precise control in pneumatic systems. Featuring a monostable function with a mechanical spring return, this valve ensures reliable switching operations. Its M12 electrical connector allows for easy integration into automation setups. The valve’s robust construction and IP65 protection rating make it suitable for various industrial applications.

Key Features:

• Model: MDH-5/2K-FR-NA-M12

• Brand: Festo

• Valve Function: 5/2-way, monostable (spring return)

• Actuation Type: Electrical

• Operating Voltage: 24 V DC

• Electrical Connection: M12 connector

• Standard Nominal Flow Rate: Up to 1,200 l/min

• Operating Pressure Range: –0.9 to 16 bar

• Design Structure: Piston slide

• Reset Type: Mechanical spring

• Protection Class: IP65

• Sealing Principle: Soft sealing

• Mounting Position: Any

• Ambient Temperature Range: –10 °C to +50 °C

• Housing Material: Die-cast aluminium

• Seal Material: NBR

• Applications: Ideal for use in industrial automation, packaging machinery, and other pneumatic control systems.
