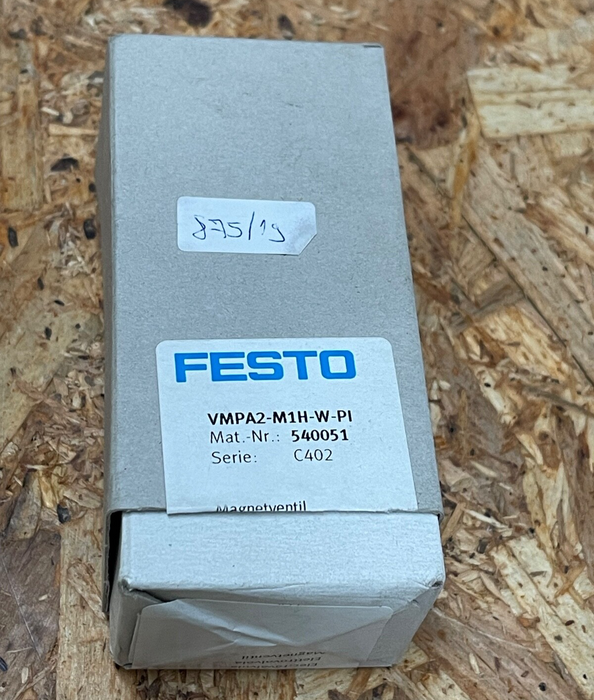

Festo - VMPA2-M1H-W-PI - 3/2-Way Solenoid Valve, 24 V DC, 20 mm, IP65 540051

The Festo VMPA2-M1H-W-PI (part number 540051) is a 3/2-way solenoid valve designed for modular valve terminals and automation systems. It features monostable function with a spring return and supports a nominal flow rate of up to 470 l/min. The valve has a 20 mm width and is suitable for vacuum and standard pneumatic applications. It can be mounted in any position and includes a manual override for flexible operation.

Key Features:

• Model: VMPA2-M1H-W-PI

• Part Number: 540051

• Brand: Festo

• Valve Type: 3/2-way, monostable (normally open)

• Actuation: Electrical with spring return

• Valve Width: 20 mm

• Nominal Flow Rate: 470 l/min (with QS-8), 480 l/min (with QS-10)

• Operating Pressure: –0.9 to 10 bar

• Control Pressure: 3 to 8 bar

• Response Times: On: 13 ms, Off: 22 ms

• Operating Voltage: 24 V DC

• Voltage Tolerance: ±25%

• Protection Class: IP65

• Manual Override: Latching and momentary

• Mounting: Through-hole, any orientation

• Seal Type: Soft sealing

• Housing Material: Die-cast aluminum

• Seal Material: NBR

• Weight: Approx. 100 g

• Temperature Range: –5 °C to +50 °C

• Media: Compressed air, vacuum

• Standards: c UL us recognized, RoHS compliant
