Festo - VSVA-B-B52-ZD-A1-1T1L with VABS-S4-1S-G14-B-R3 - 5/2-Way Bistable

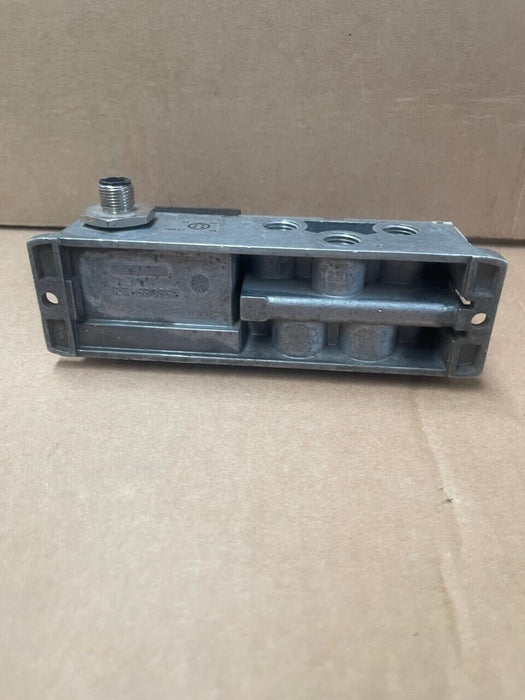

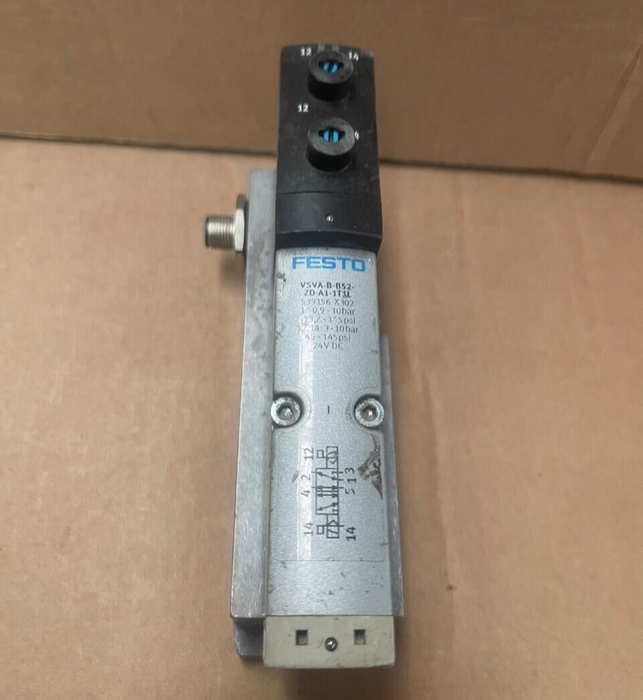

The Festo VSVA-B-B52-ZD-A1-1T1L is a 5/2-way bistable solenoid valve designed for precise control of pneumatic actuators. Paired with the VABS-S4-1S-G14-B-R3 sub-base, this assembly offers a robust and efficient solution for various industrial automation applications.

Key Features:

• Valve Function: 5/2-way bistable, allowing for two stable positions and reliable switching between them.

• Actuation Type: Electrical, enabling integration into automated systems.

• Standard Nominal Flow Rate: 1,100 l/min, ensuring efficient airflow for rapid actuator response.

• Operating Pressure Range: -0.9 to 10 bar, suitable for a wide range of pneumatic applications.

• Mounting Position: Flexible installation in any orientation.

• Manual Override: Features detenting, non-detenting, and covered options for manual operation during setup or maintenance.

• Degree of Protection: Rated IP65 and NEMA 4, providing resistance against dust and water ingress.

Technical Specifications:

• Width: 26 mm

• Structural Design: Piston gate valve with soft sealing principle

• Pilot Pressure: 3 to 10 bar

• Flow Rate: 1,400 l/min (valve), 1,200 l/min (on individual sub-base)

• Switching Time (Reversal): 18 ms

• Duty Cycle: 100%

• Operating Medium: Compressed air in accordance with ISO 8573-1:2010 [7:4:4]

• Ambient Temperature: -5°C to 50°C

• Product Weight: 276 g

• Electrical Connection: Plug-in according to ISO 15407-2

• Materials:

• Seals: FPM, HNBR, NBR

• Housing: Aluminium die-cast, PA

• Screws: Galvanised steel
