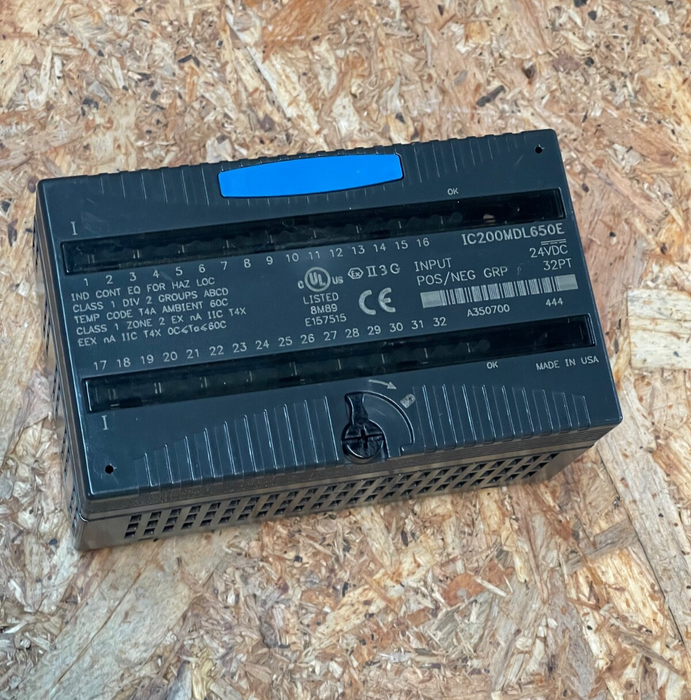

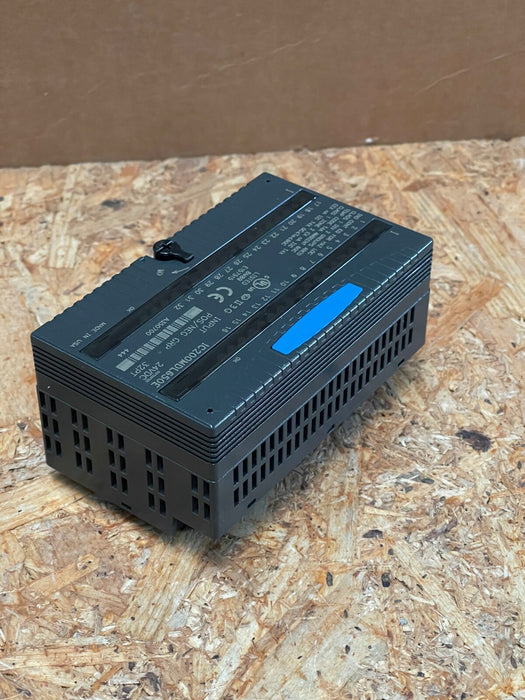

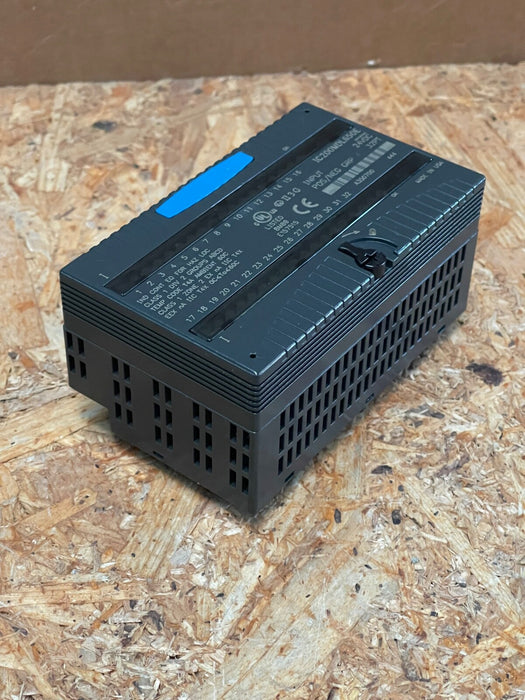

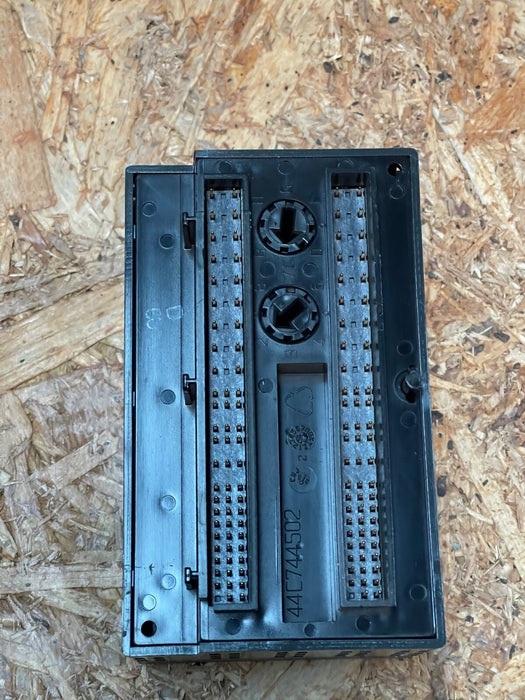

The GE Fanuc IC200MDL650E is a high-density discrete input module from the VersaMax I/O platform. It provides 32 digital inputs divided into four groups of eight, supporting both positive and negative logic wiring, with fast 0.5 ms response time and group-to-group optical isolation. LEDs for each point and overall module health make it ideal for industrial automation and control systems.

Key Features & Technical Specifications:

Model: IC200MDL650E (VersaMax discrete input module – 32 points)
Inputs: 32 DC channels, grouped 4 x 8, supporting both positive and negative logic wiring
Voltage Range: 0–30 VDC (nominal 24 VDC); input current 2.0–5.5 mA ON, 0–0.5 mA OFF
Response & Filter: 0.5 ms basic response; optional filter settings (0 ms, 1 ms default, 7 ms) totaling 0.5–7.5 ms
Isolation: Optical isolation group-to-group rated at 250 VAC continuously, 1500 VAC for 1 minute
Indicators: Individual channel LEDs plus global “OK” LED for backplane power status
Power Draw: 50 mA maximum from 5 V backplane rail
Form Factor & Environmental: ~110 × 67 × 50 mm, ~300 g; operates up to 60 °C; VersaMax plug-in style
