The GE Fanuc IC200MDL650H is a high-density VersaMax PLC input module offering 32 discrete input channels divided into four groups of eight. Designed for flexible integration, it supports both positive and negative logic, has fast response times, LED diagnostics for each point, and optical isolation between groups—ideal for industrial automation applications.

Key Features & Technical Specifications:

Model: IC200MDL650H (VersaMax Discrete Input, Revision H)
Inputs: 32 channels; 24 VDC nominal (range 0–30 VDC), 2.0–5.5 mA on-state, 0–0.5 mA off-state per point
Channel Groups: 4 groups of 8; each group can be wired for positive or negative logic
Isolation: Group-to-group isolation rated 250 VAC continuous and 1500 VAC for 1 minute
Response & Filtering: 0.5 ms response on/off time; configurable input filter options (0/1/7 ms)
Diagnostics: LED indicators for each point and a green OK LED for module health/backplane presence
Power & Consumption: Powered by backplane 5 V rail; typical draw 50 mA
Form Factor: VersaMax plug-in module; 110 × 66.8 × 50 mm; 150 g approx.
Operating Conditions: Industrial-grade; 0–60 °C depending on carrier/base

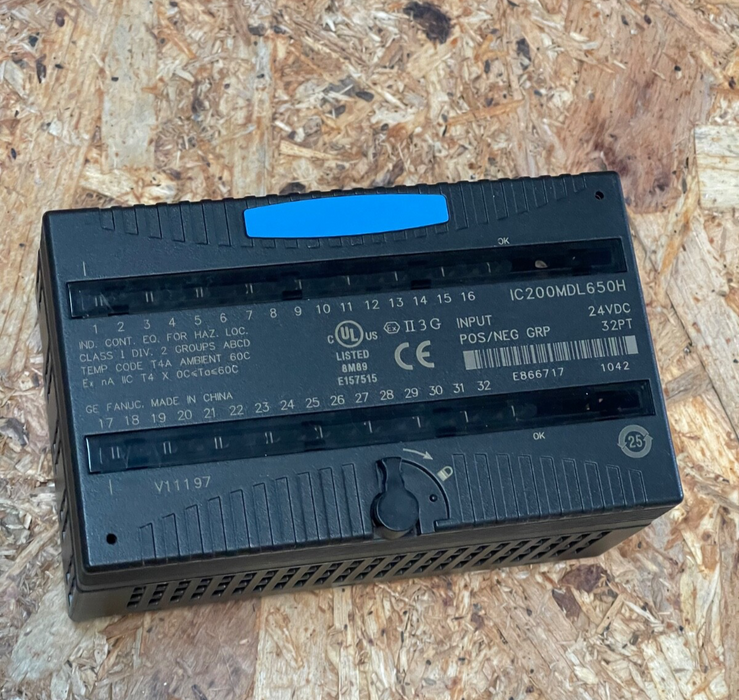

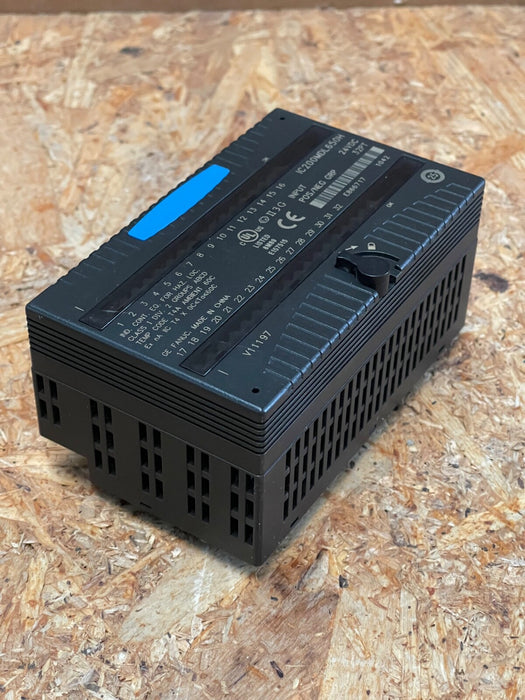

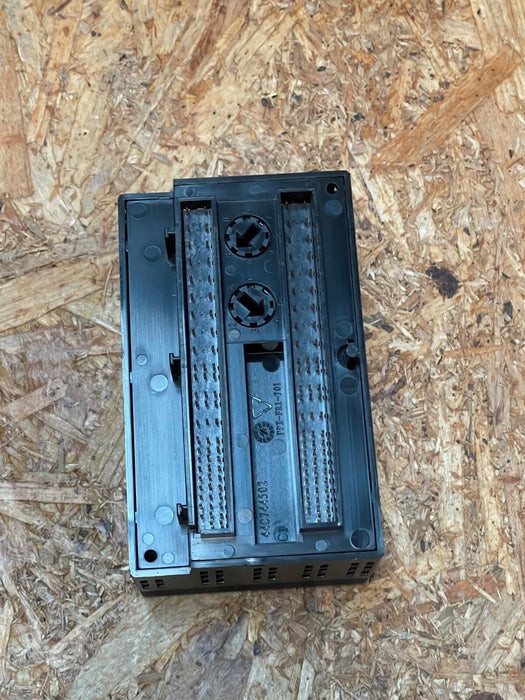

GE Fanuc – IC200MDL650H – VersaMax 32-Point 24 VDC Discrete Input Module (Rev H)
