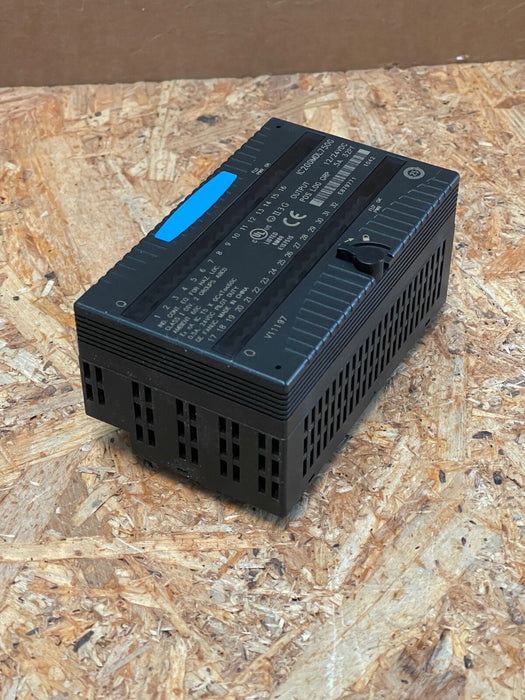

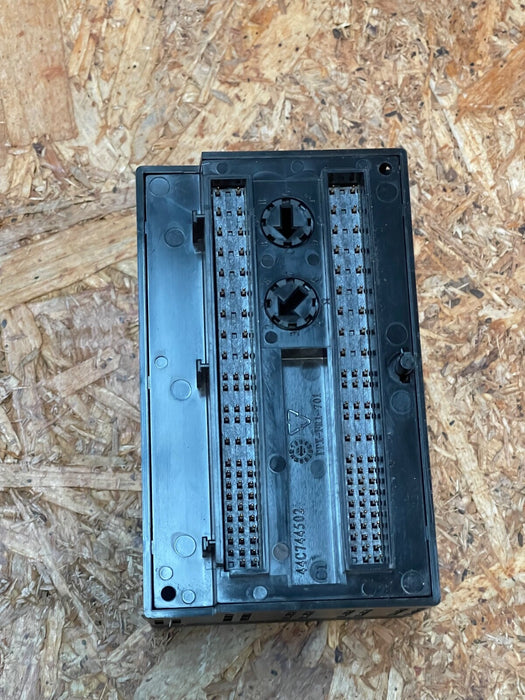

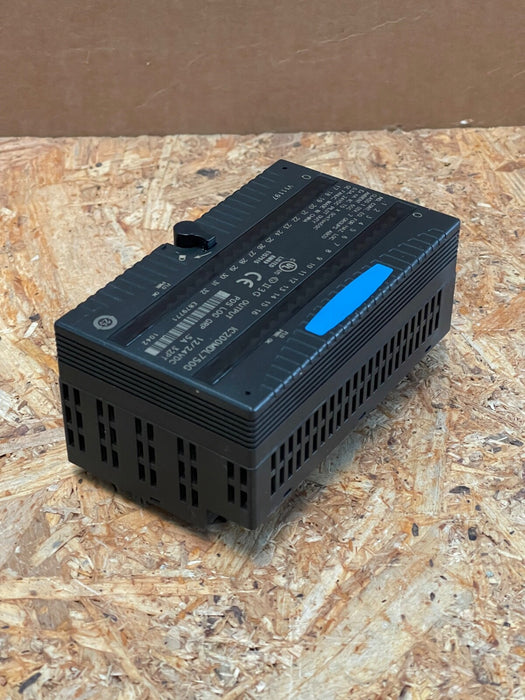

GE Fanuc – IC200MDL750G – VersaMax 32‑Point 12/24 VDC Discrete Output Module

The GE Fanuc IC200MDL750G is a high-density discrete output module in the VersaMax I/O series, offering 32 sourcing outputs in two groups of 16. Designed for positive-logic control of DC loads such as solenoids, relays, or LEDs, it delivers 0.5 A per point, with fast response and robust diagnostics—ideal for industrial automation.

Key Features & Technical Specifications:

• Model: IC200MDL750G (Rev G) Discrete Output Module

• Outputs: 32 DC sourcing outputs (positive logic), arranged as two groups of 16

• Voltage Rating: Nominal 12/24 VDC, with a range of 10.2–30 VDC

• Current Rating: 0.5 A continuous per channel; supports up to 2 A inrush for 100 ms

• Backplane Consumption: 90 mA @ 5 VDC rail

• Response Times: ON ≤ 0.2 ms, OFF ≤ 1 ms

• Isolation: Group-to-group isolation rating of 250 VAC continuous, 1500 VAC for 1 min; note: no individual channel isolation

• LED Indicators: Individual channel status LEDs + “OK” and field power LEDs

• Operating Conditions: 0–30 °C (thermal derating applies); rated for Class I Div.2 hazardous locations

• Form Factor: 110 × 66.8 × 50 mm; ~900 g with carrier; DIN-rail mounting via VersaMax carrier
