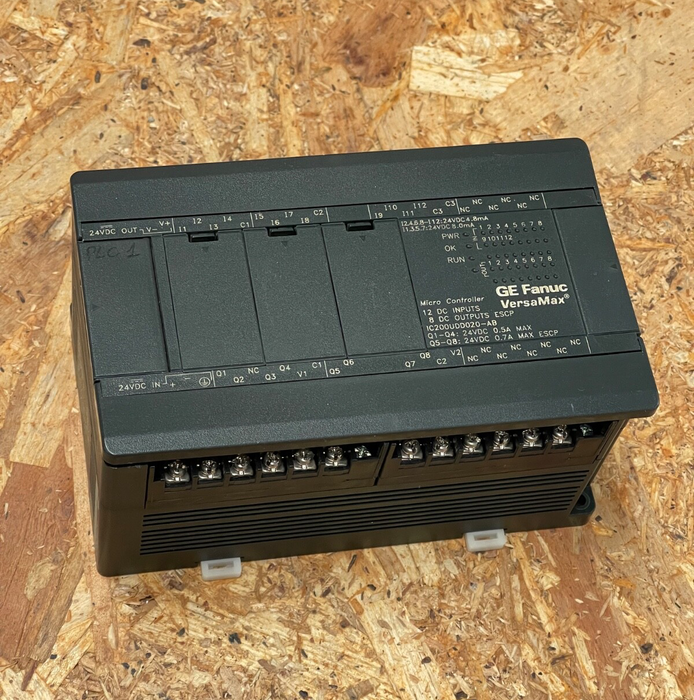

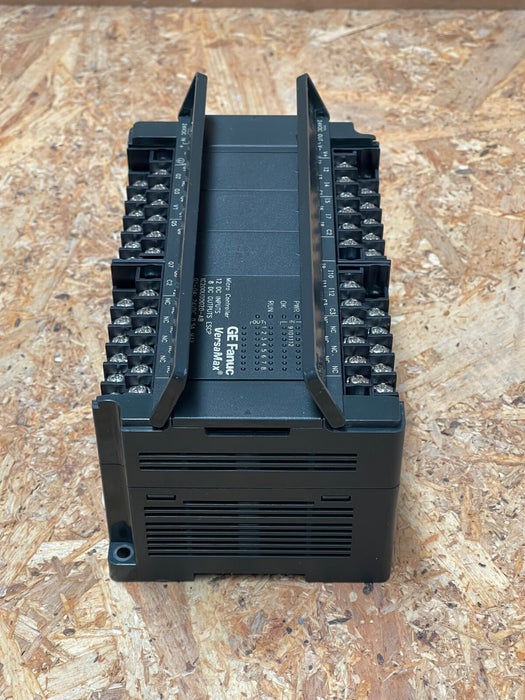

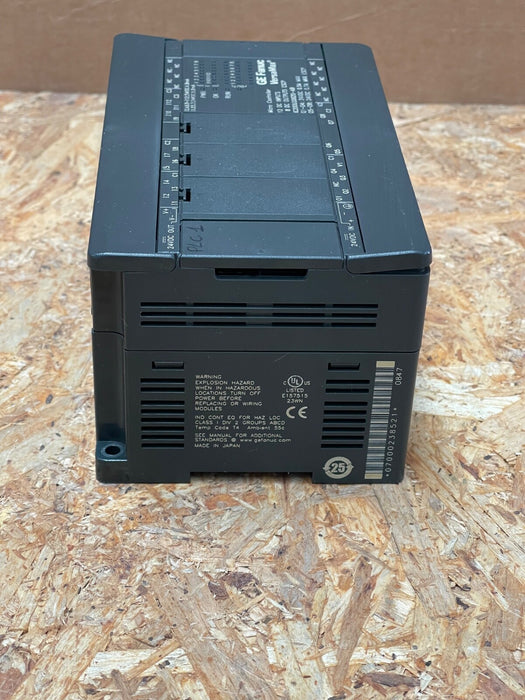

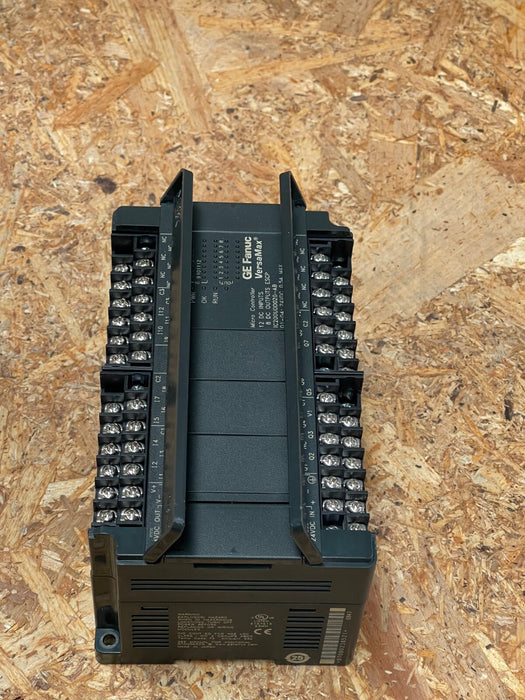

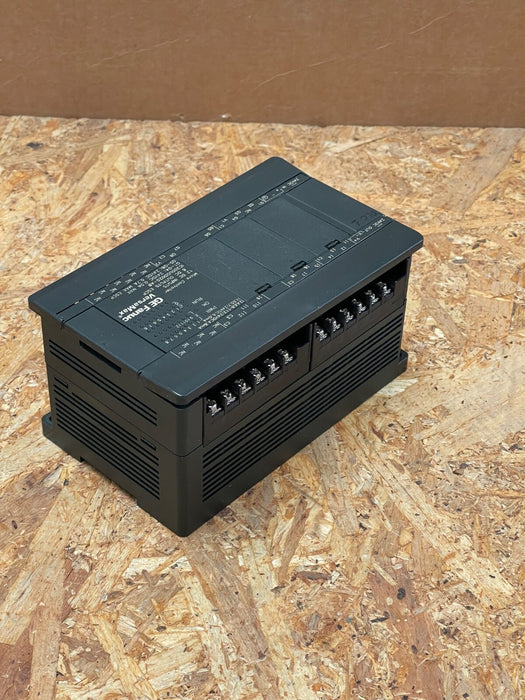

GE Fanuc – IC200UDD020‑AB – VersaMax Micro 20‑Point PLC (12 IN / 8 OUT, 24 VDC

The GE Fanuc IC200UDD020‑AB is a VersaMax Micro PLC (Micro Plus), delivering 12 discrete inputs and 8 sourcing DC outputs with built-in 24 VDC power supply. Compact yet feature-rich, it includes high-speed counting, configurable input logic, and ESCP output protection, making it ideal for small to medium industrial automation tasks.

Key Features & Technical Specifications:

• Model: IC200UDD020‑AB — VersaMax Micro Plus PLC, 20 I/O

• Inputs: 12 × 24 VDC (positive or negative logic); typical input current 4.8–8 mA

• Outputs: 8 × sourcing DC outputs (24 VDC supply), with ESCP protection — Q1–Q4 up to 0.5 A, Q5–Q8 up to 0.7 A; 2 A inrush capability

• Power Supply: 24 VDC internal, 0.2 A typical; hold-up time ~10 ms

• High-Speed Counters: Onboard; configurable up/down counters up to 100 kHz

• Communications: Built-in RS-232; expandable with serial communication port (e.g., IC200CHSxx carrier)

• Isolation & Safety: Group-to-group isolation 1.5 kV RMS; logic-to-field isolation 500 VAC; Class I Div 2 rated

• Environment & Form Factor: 19.7 × 67 × 56 mm; DIN rail compatible; 0–55 °C operation; 6 oz (0.33 lb)
