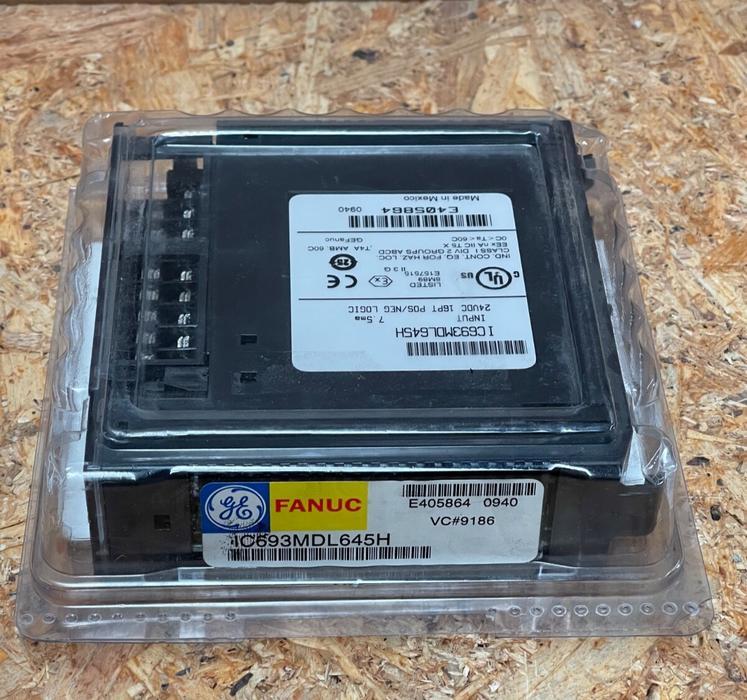

GE Fanuc – IC693MDL645H – Series 90‑30 PLC 16‑Point 24 V DC Positive/Negative

The GE Fanuc IC693MDL645H is a 16-point input module designed for the Series 90‑30 PLC platform, supporting both sourcing (positive) and sinking (negative) logic. It operates on a 24 V DC supply and draws only ~7 mA per input, making it suitable for a wide range of field devices while ensuring efficient backplane communication.

Key Features:

• Model: IC693MDL645H (Series 90‑30)

• Brand: GE Fanuc / Emerson

• Inputs: 16 points, compatible with both positive and negative logic

• Supply Voltage: 24 V DC (range 0–30 V)

• Input Current: Approximately 7.5 mA per channel (typical ~7 mA)

• Isolation: Field-side to backplane > 1500 V

• Logic Compatibility: Supports both sink and source wiring without jumper changes

• Diagnostics: Front-panel LEDs for each input status

• Operating Temp: Designed for industrial environments (0–60 °C typical)
