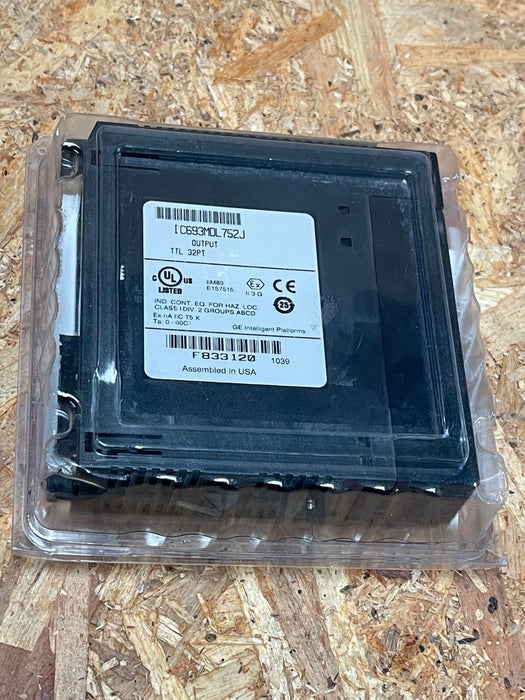

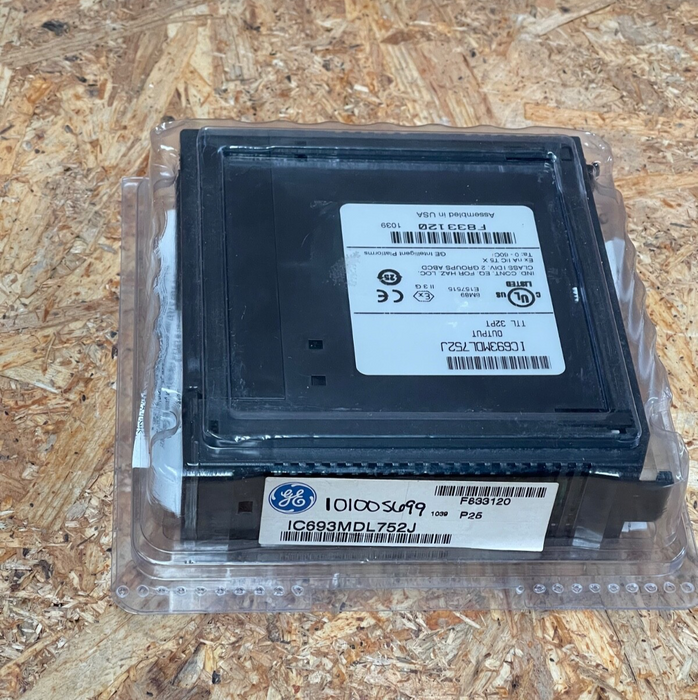

GE Fanuc – IC693MDL752J – Series 90‑30 32‑Point TTL Negative‑Logic Output Module

The GE Fanuc IC693MDL752J is a 32-channel TTL (5/12/24 V DC) negative-logic (active-low) output module designed for the Series 90‑30 PLC platform. Featuring four isolated groups of 8 outputs, this compact, opto-coupled module provides reliable, high-density output control for industrial automation systems.

Key Features:

• Model: IC693MDL752J (Series 90‑30 output module)

• Outputs: 32 discrete TTL outputs, negative logic (active when low), 0.5 A sink max at 12/24 V DC

• Voltage Compatibility: Operates on 5, 12, or 24 V DC TTL logic levels

• Isolation: Four output groups with opto-isolation, dedicated commons per group for safety and segregation

• Indicators: Status LEDs for each of the 32 output points for easy diagnostics

• Form Factor: Fits 5- or 10-slot rack; plug-compatible with standard IC693 slots

• Environmental Specs: Operational 0–60 °C, UL/CE certified, Class I Div 2 for hazardous locations
