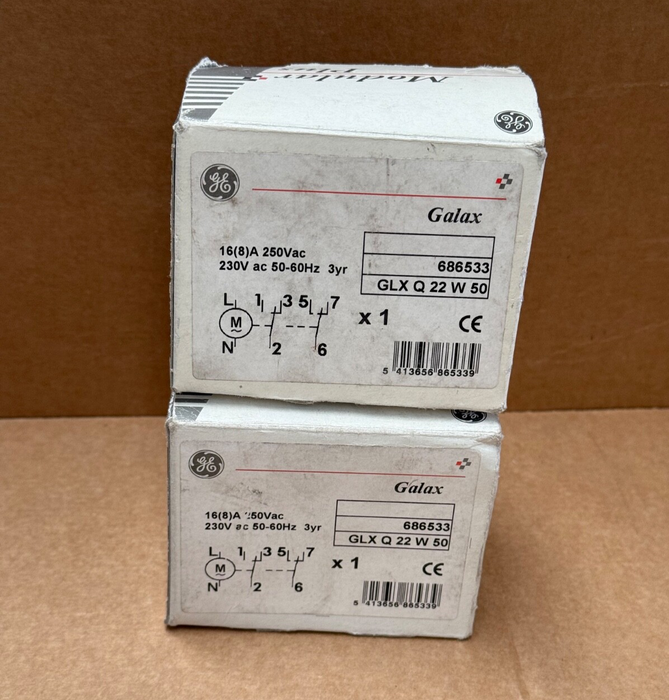

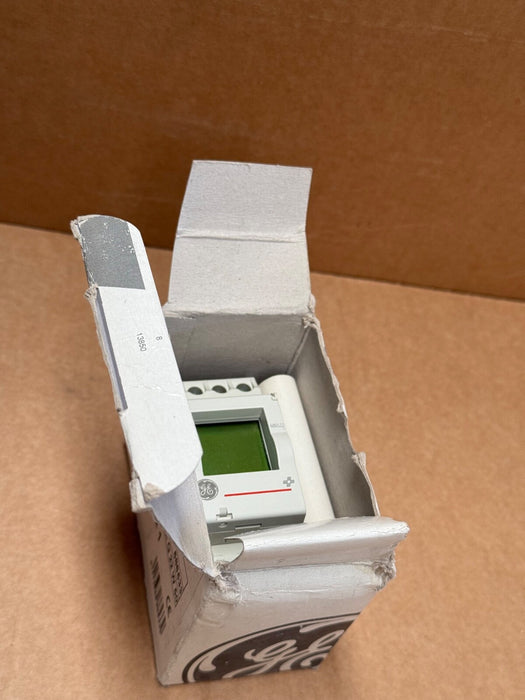

GE – GALAX GLX Q 22 W 50 (686533) – 7×24h Digital DIN‑Rail Timer, 16 A, 230 VAC

The GE GALAX GLX Timer model Q 22 W 50 (part number 686533) is a versatile, DIN-rail-mountable digital time switch. It offers 7-day programmable control for lighting, HVAC, pumps, or motor circuits and delivers reliable performance with its 1-channel SPDT contact and quartz timebase.

Key Features & Specifications

• Model / Part No.: GLX Q 22 W 50 / 686533

• Schedule: 7×24h weekly programmable

• Contact: 1 CO (SPDT), 16 A at 250 VAC (resistive), 8 A inductive

• Operating Voltage: 220–240 VAC, 50–60 Hz

• Time Accuracy: Quartz‑controlled ±1 min/day; 3‑year internal battery backup

• Minimum Switching Interval: 1 minute

• Program Capacity: 50 ON/OFF events per week

• Size: 2 DIN modules wide; suitable for 35 mm DIN rail

• Operating Temp: –25…+55 °C; fully sealed and tamper‑proof

• Certifications: Compliant to BS EN 60730‑1/2‑7, VDE, CE
