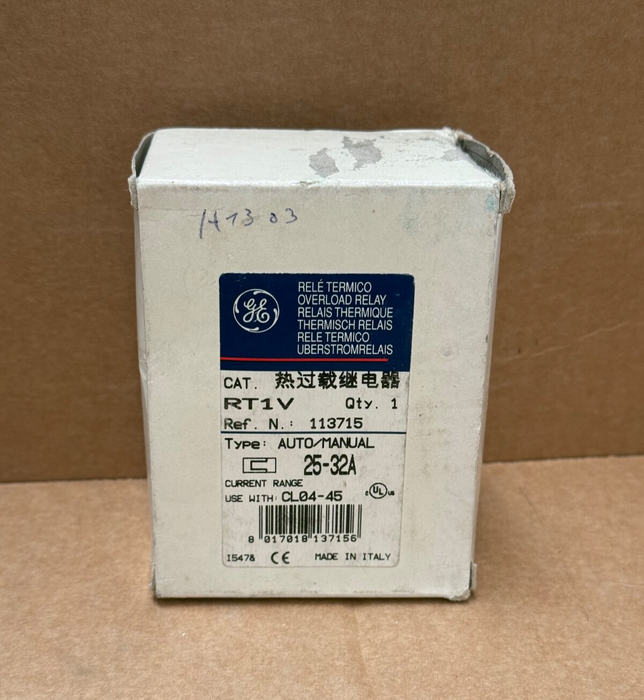

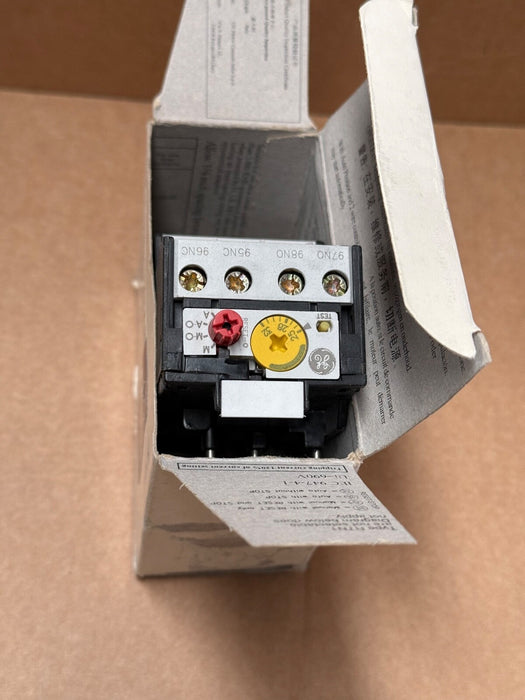

GE – RT1V (113715) – Thermal Overload Relay, 25–32 A, Class 10

The GE RT1V (part number 113715) is a 3-pole thermal overload relay designed for integration with GE C‑2000/CL series contactors (CL00–CL04, CL25, CL45). This adjustable 25–32 A relay offers reliable motor protection with manual or automatic reset, phase-loss detection, and compact DIN-rail mounting options—ideal for industrial control panels and motor safety circuits.

Key Features & Specifications

• Model / P/N: RT1V (113715)

• Trip Range: Adjustable 25–32 A

• Trip Class: 10A – trips within 10 seconds over rated current

• Contacts: 3 poles + Phase-loss protection; 1 NO + 1 NC auxiliary contacts on top

• Reset Options: Selectable manual or automatic reset

• Mounting: Directly mounts under CL series contactors or onto DIN rail with bracket

• Voltage Rating: Suitable up to 690 VAC

• Certifications: UL recognized, CE and RoHS compliant
