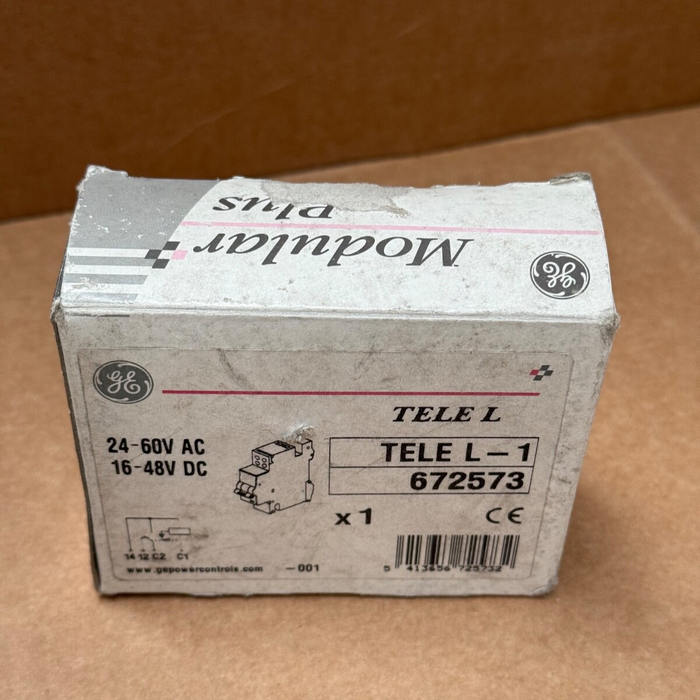

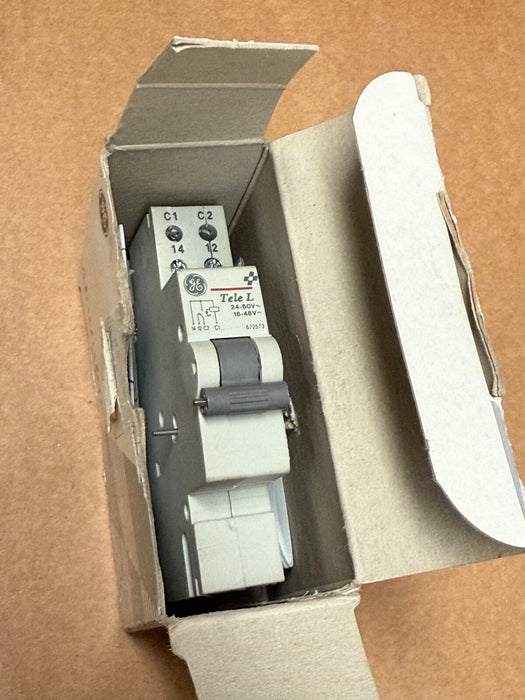

GE – TELEL‑1 (672573) – 24–60 VAC / 24–48 VDC Shunt-Trip Release, 1-Pole

The GE TELEL‑1 (Catalog #672573 / 4TQG672573R0000) is a precision DIN-rail shunt-trip release designed for remote opening of breakers using a 24–60 VAC or 24–48 VDC control signal. Ideal for industrial and safety-critical applications, it features fast operation, compliance with IEC 947‑2, and compatibility with GE ElfaPlus / Fixwell modular systems.

Key Features & Specifications

• Model / P/N: TELEL‑1 (672573 / 4TQG672573R0000)

• Function: Shunt-trip release for remote breaker trip

• Control Voltage Range: 24–60 VAC (50 Hz) or 24–48 VDC

• Poles: 1P, DIN-module width (22.5 mm)

• Trip Response Time: <10 ms

• Electrical Endurance: 2,000 operations; 10,000 mechanical cycles

• Coil Impedance: approx. 24 Ω @ 50 Hz

• Terminal Capacity: up to 2.5 mm² wire

• Certifications: CE, IEC 947‑2, ETIM 5.0/6.0 compliant

• Weight: ~125 g
