GECA – Logic 162 (31620958) – 2‑Module DIN‑Rail Mechanical Time Switch 230 VAC

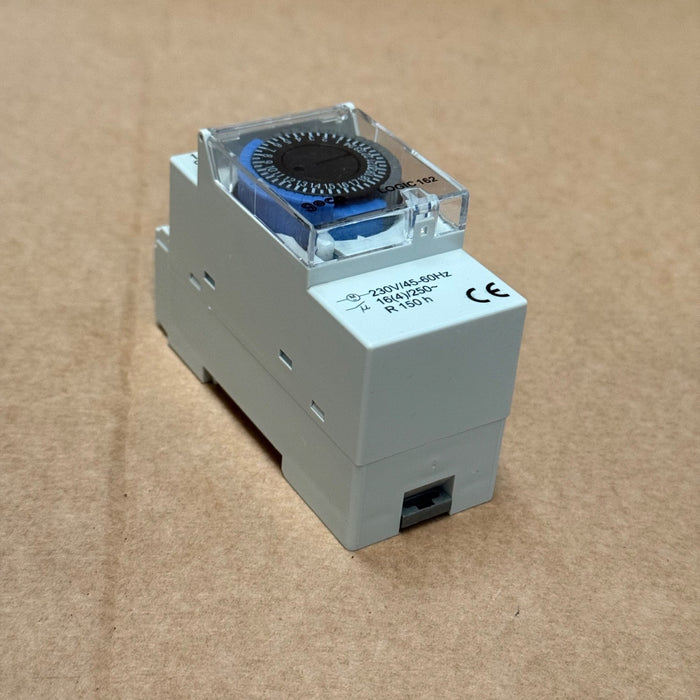

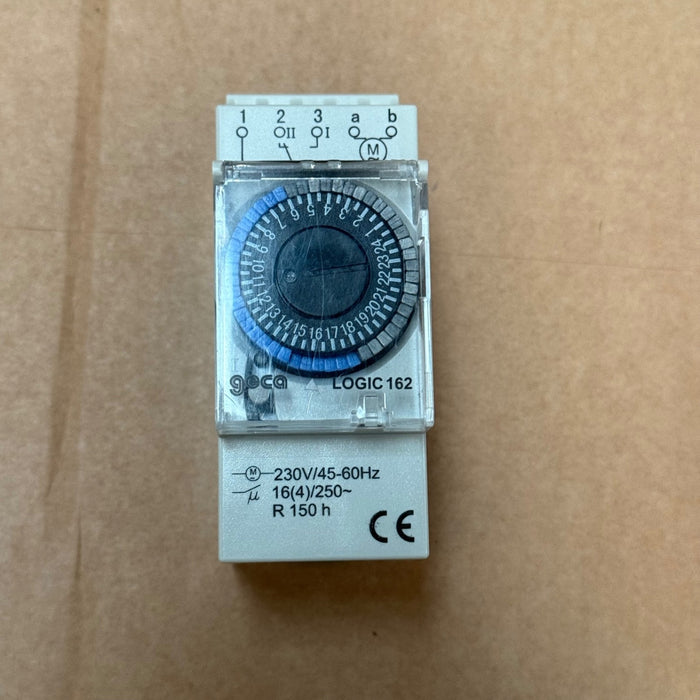

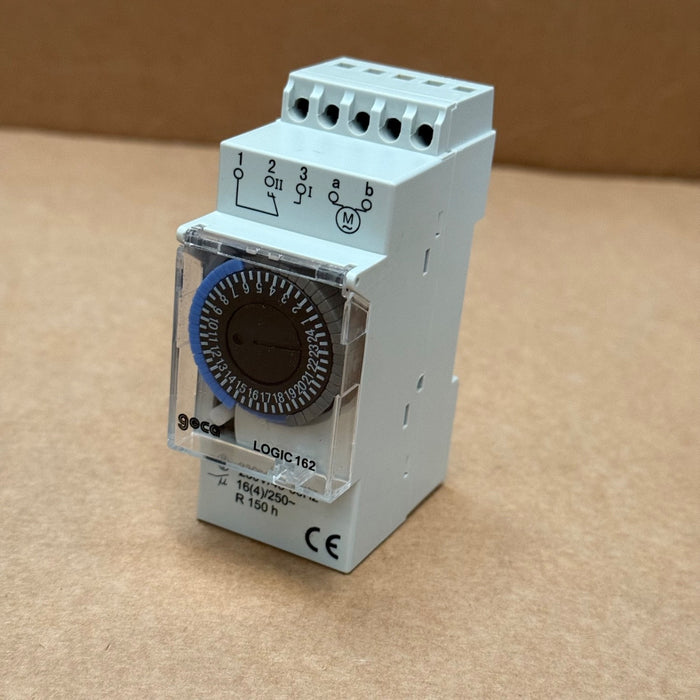

The GECA Logic 162 (part number 31620958) is a panel-mount, two-module-wide mechanical time switch for DIN-rail installation. It allows daily scheduling of electrical loads with high reliability, ideal for lighting, pumps, and heating systems. The device features a durable quartz clock and manual override.

Key Features:

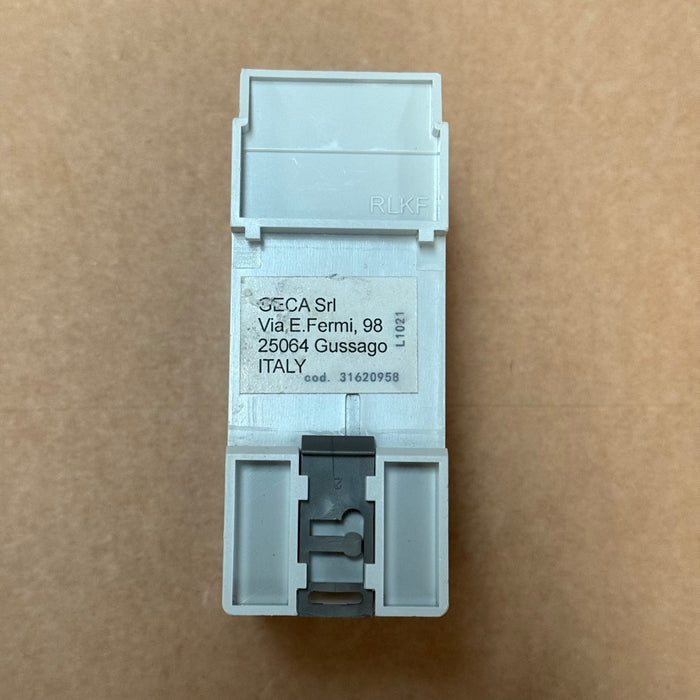

• Model & Part #: Logic 162 / 31620958

• Mounting: 2-module DIN-rail

• Power Supply: 230 VAC, 50–60 Hz

• Switching Capacity: 16 A resistive / 4 A inductive @ 230 VAC

• Daily Program: Up to 96 switching events per day (15‑minute intervals)

• Clock Reserve Power: ~100–200 hours battery backup

• Operation: Automatic/program or manual override mode
