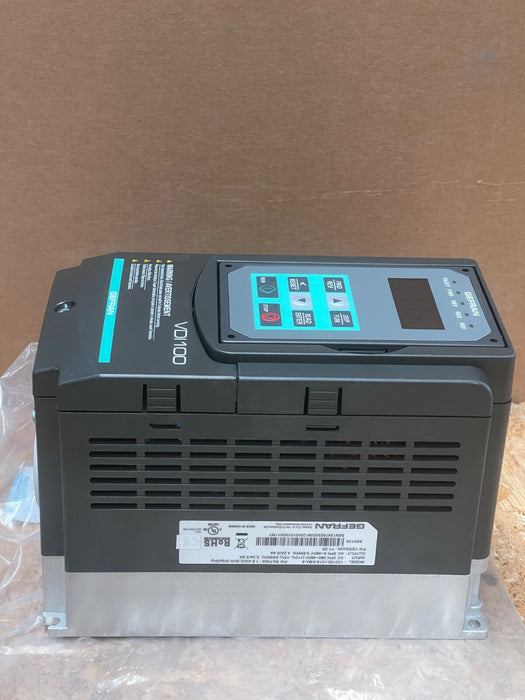

The Gefran VDI100‑1015‑KBX‑4 is a compact 1.5 kW, 400 V three-phase vector inverter from the VDI100 series, ideal for advanced motor control in industrial automation. It includes an internal braking unit and EMI filter, offering high performance with minimal panel space. This versatile inverter supports both asynchronous and permanent magnet motors through multiple control modes, and it comes factory-fitted with an integrated keypad for easy setup.

🔧 Key Features

Model / P/N: VDI100‑1015‑KBX‑4 (internal brake + EMI filter)
Power / Voltage: 1.5 kW nominal (2.2 kW light/3 kW heavy duty) • 380–480 V ac, 3-phase
Brake Unit: Built-in internal brake resistor and transistor; no external hardware needed
Control Modes: V/f, open/closed-loop vector control, permanent magnet support

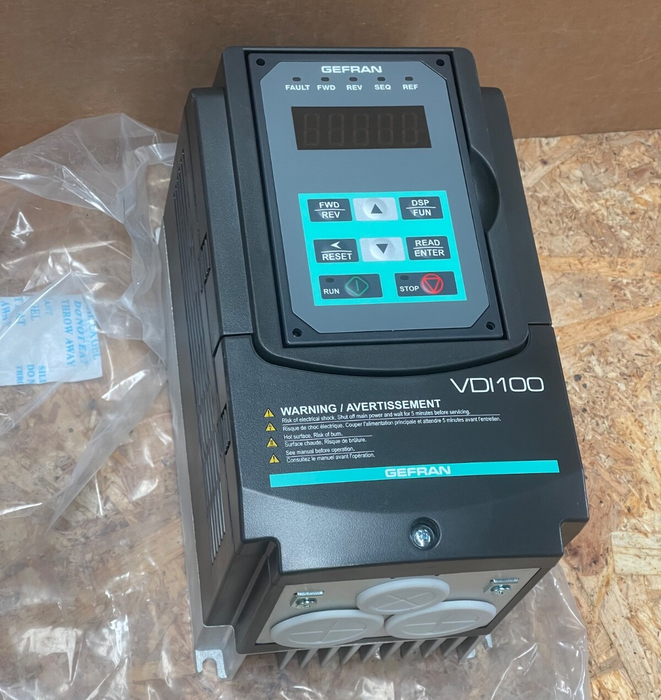

Interface: Integrated 5-digit LED keypad with start/stop and adjustment keys
Communications: RS-485 with Modbus RTU/ASCII via standard RJ45
Protection: IP20 rated, suitable for industrial cabinet mounting
