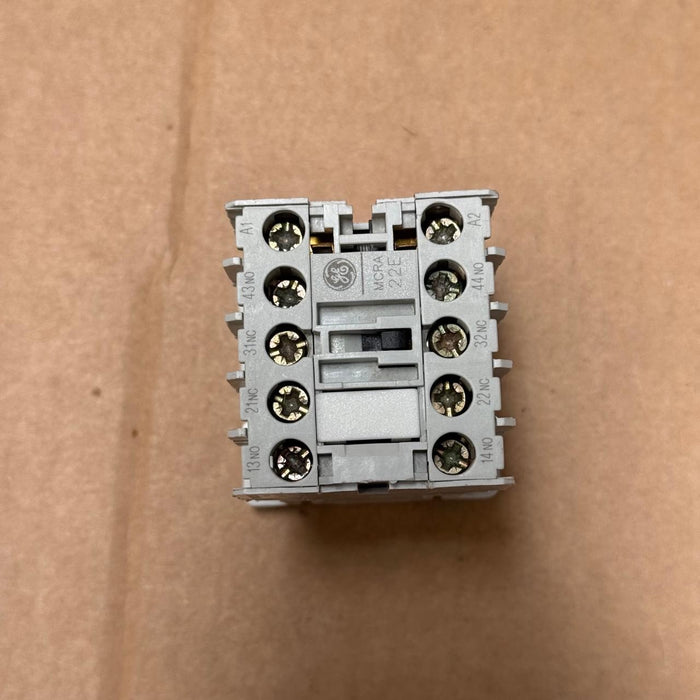

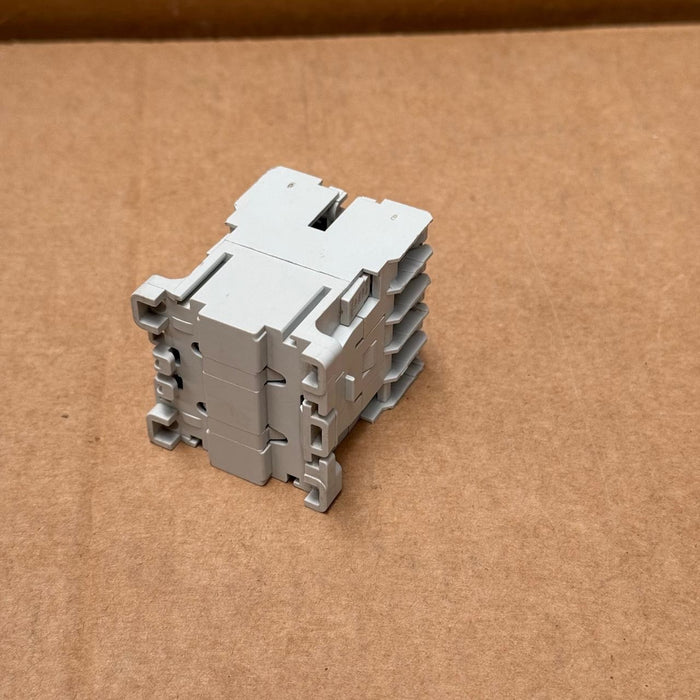

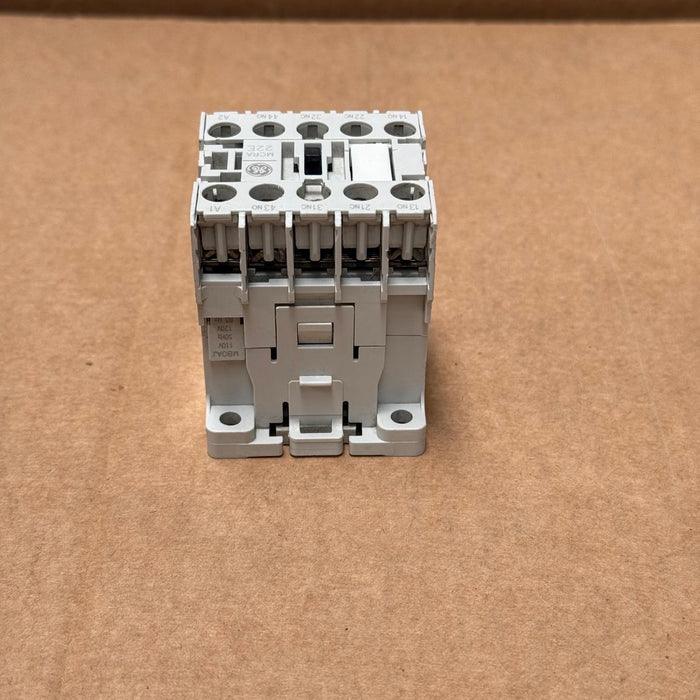

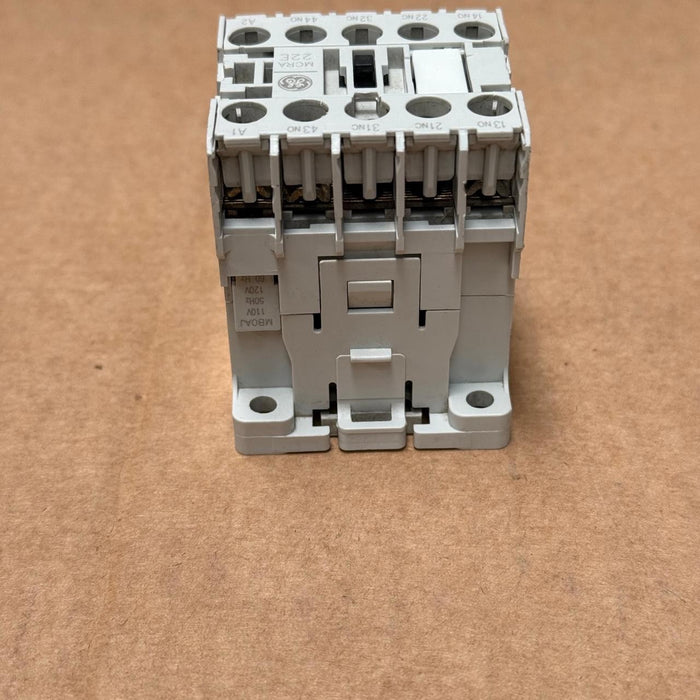

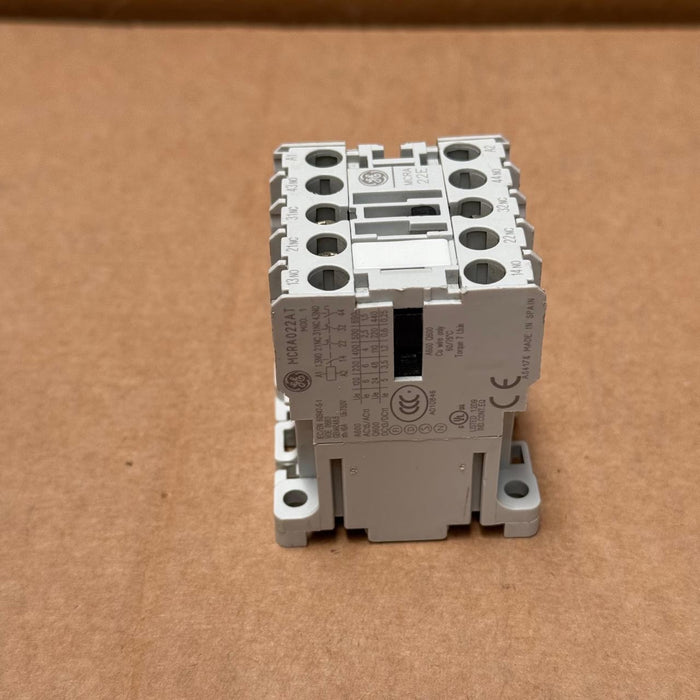

General Electric – MCRA022AT – C‑2000 Mini-Control Relay, 2 NO + 2 NC, 110–120 V

The MCRA022AT is a compact four-pole mini-contactor relay in GE’s C‑2000™ series. Configured for two normally-open and two normally-closed contacts, with a 110–120 VAC coil, it provides reliable control for industrial automation, interlocks, and PLC applications.

Key Features:

• Manufacturer: General Electric (C‑2000™)

• Model / P/N: MCRA022AT

• Contact Configuration: 2 NO + 2 NC, rated 10 A continuous, IEC/EN-rated A600/Q600

• Coil Voltage: 110–120 VAC, 50/60 Hz (suffix “AT”)

• Terminal Type: Screw terminals; optional Faston or PCB variants available

• Mounting: Clip-on 35 mm DIN rail (EN 50022) or panel mount via screws

• Protection & Standards: IP20 gauge, compliant with IEC/EN 60947‑1/5‑1; UL/CSA/CE

• Coil & Current Specs: Suitable for AC control circuits up to 600 V, DC up to 240 V; coil draws low power, ideal for PLC outputs

• Weight: Approx. 170 g (6 oz) ()
