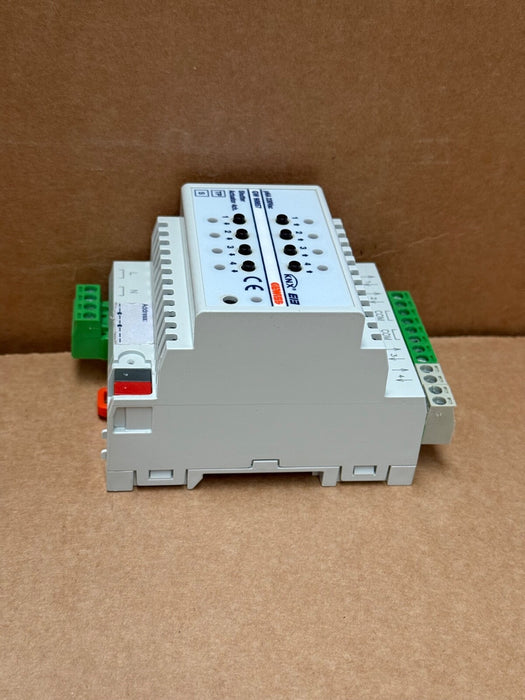

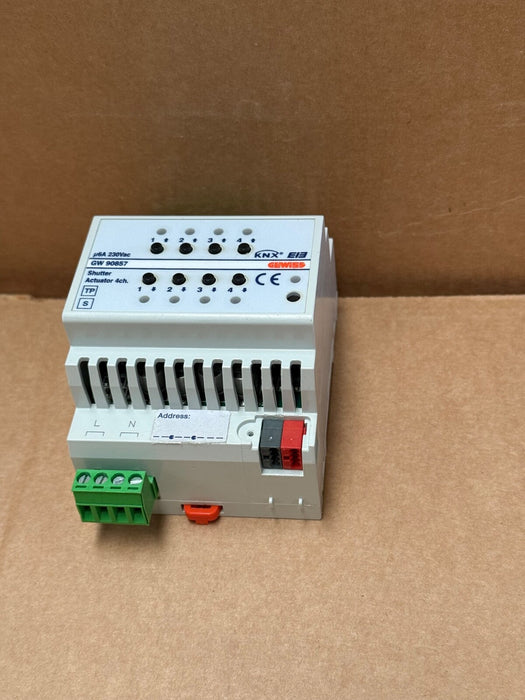

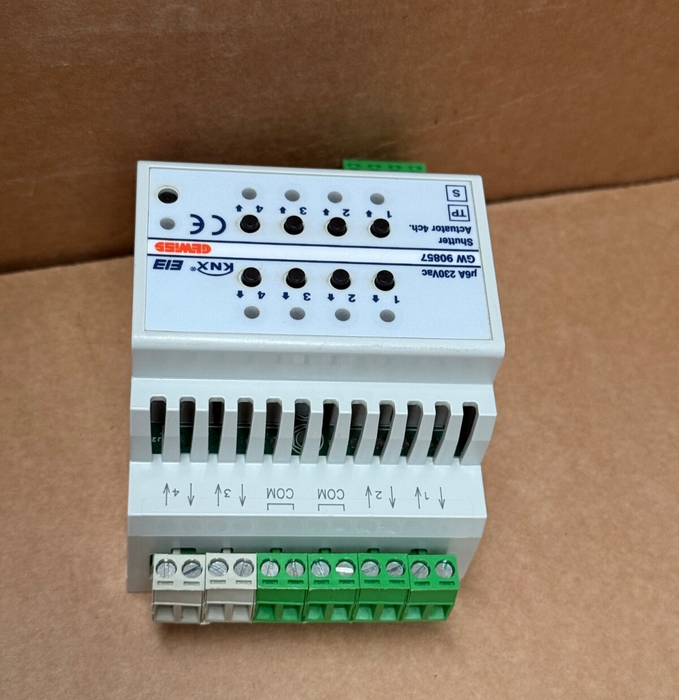

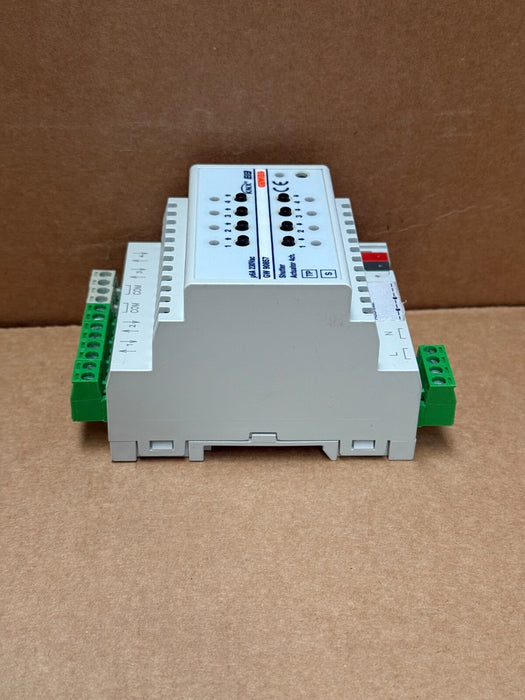

The Gewiss GW90857 is a 4‑channel actuator for roller shutters, curtains, awnings, and Venetian blinds within KNX building automation systems. Mounted on DIN rail (4 modules wide), it delivers 8 interlocked relay outputs (2 per channel) rated up to 6 A motor and 8 A resistive load, and supports local and bus control with LED indicators and front push-buttons. It remains operational locally even without KNX voltage, using auxiliary 230 VAC power to maintain manual control.

Key Specifications

Model / P/N: GW90857
Type: KNX Shutter Actuator, 4 channels (8 NO outputs), mechanically interlocked
Load Ratings: Motors: 6 A (EN60669‑2‑1); Resistive: 8 A @ 250 VAC
KNX Bus Power: 29 V DC SELV, max 10 mA
Auxiliary Power: 230 VAC for local operation when KNX bus is down
Indicators & Controls: 8 green LEDs (UP/DOWN status), 8 front push-buttons, local override without bus
Mounting & Size: DIN‑rail, 4 modules wide, IP20, operating −5…+40 °C, humidity ≤93% non-condensing
Certifications: Compliant with EN50428, EN50090‑2‑2, EN60669‑2‑1; CE, KNX certified
