The Gewiss GWD6916 P‑Comfort load management relay controls prioritized and non-priority loads to avoid overloading single-phase systems. Designed for DIN-rail mounting within the 90 AM modular range, it continuously monitors power consumption and automatically disconnects non-essential loads when the configured threshold is exceeded.

Key Features & Specifications

Model / P/N: GWD6916 P‑Comfort (wire version)
Rated Voltage: 230 V AC
Relay Capacity:
- Nominal current: 32 A
- Relay contact rating: 16 A AC1 @ 250 V AC
Power Monitoring:
- Adjustable threshold: 0–8 kW (default 3.8 kW)
- Audible alarm when limit is exceeded
Timing Control:
- Delay for opening non-priority contacts: 10–120 s (default 45 s)
- Reconnection delay: 10–255 s (default 90 s)
Load & Energy Metrics: Active power, energy consumed/supplied
Form Factor: 2 DIN-module width
Operating Conditions: –5 °C to +45 °C; storage –25 °C to +70 °C
Cable Capacity: Rigid: ≤ 6 mm²; Flexible: ≤ 4 mm²
Acoustic Level: 85 dB at 10 cm
Standards: EN 60669‑1, EN 60669‑2‑1 compliant

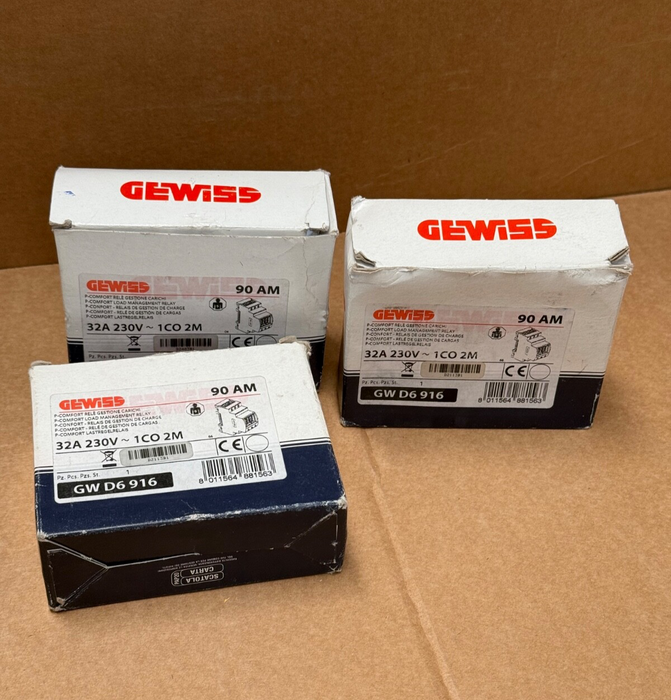

Gewiss – GWD6916 – P-Comfort Load Management Relay, Wired, 32 A, 230 V
