The HBM WE2110 is a high-precision digital weighing indicator designed for use with analog strain gauge load cells. Utilizing advanced Sigma-Delta A/D conversion technology, it offers fast and accurate weight measurements, making it suitable for applications such as truck and rail scales, dosing systems, and industrial automation.

Key Features:

Model: WE2110
Brand: HBM
Function: Digital weighing indicator for analog strain gauge load cells
Display: 6-digit green LED, 14 mm character height
Resolution: Up to 100,000 divisions; OIML certified for up to 6000 divisions (Class III/IV)
A/D Conversion Rate: Up to 60 measurements per second
Input Range: 0.2 to 3 mV/V
Load Cell Excitation: 8 V DC; supports up to 8 × 350 Ω load cells

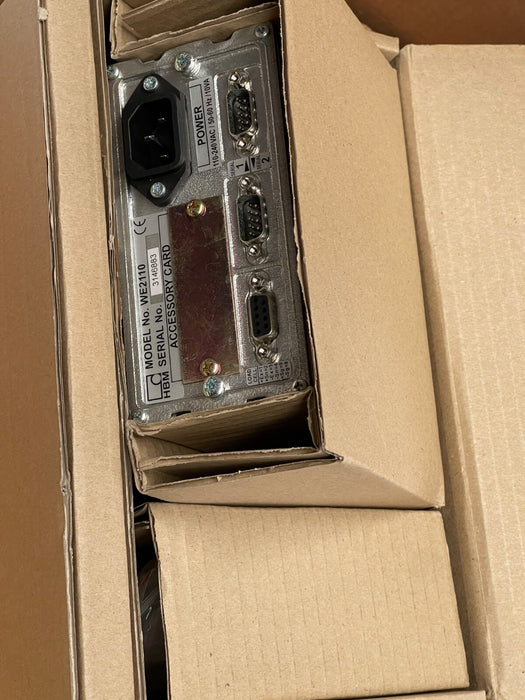

Interfaces:
- 1 × RS-232/RS-485 (4-wire)
- 1 × RS-232 for printer or remote display
Power Supply:
- 110–240 V AC (50–60 Hz)
- 12–24 V DC
Mounting: Panel mount; dimensions 150 × 72 × 115 mm
Protection:
- Front panel: IP65
- Housing: IP40
Operating Temperature: -10 °C to +60 °C
Optional Add-On Cards:
- ZCC: Analog output (±10 V or 4–20 mA), 2 digital outputs, 1 digital input
- ZS: 4 opto-isolated digital inputs and 4 outputs
Applications: Ideal for use in truck and rail scales, dosing systems, and industrial automation requiring precise and reliable weight measurements.

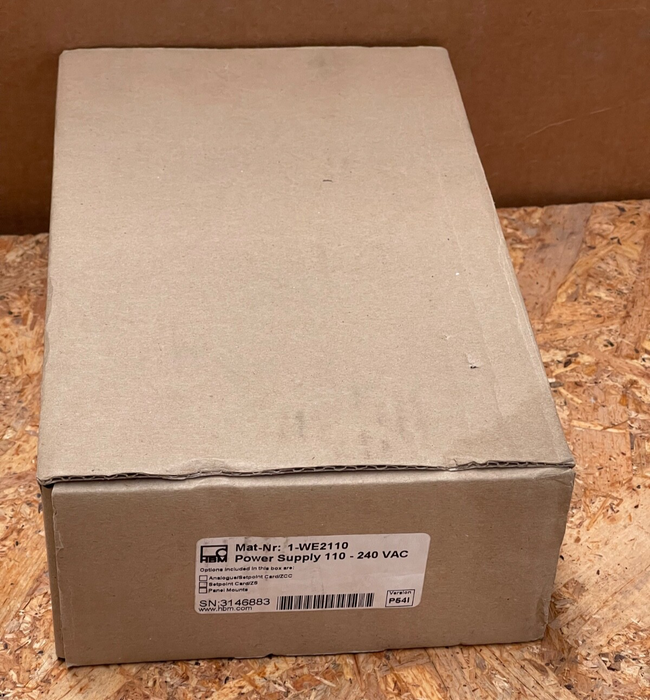

HBM - 1-WE2110 - Digital Weighing Indicator, 6-Digit LED, RS-232/RS-485
