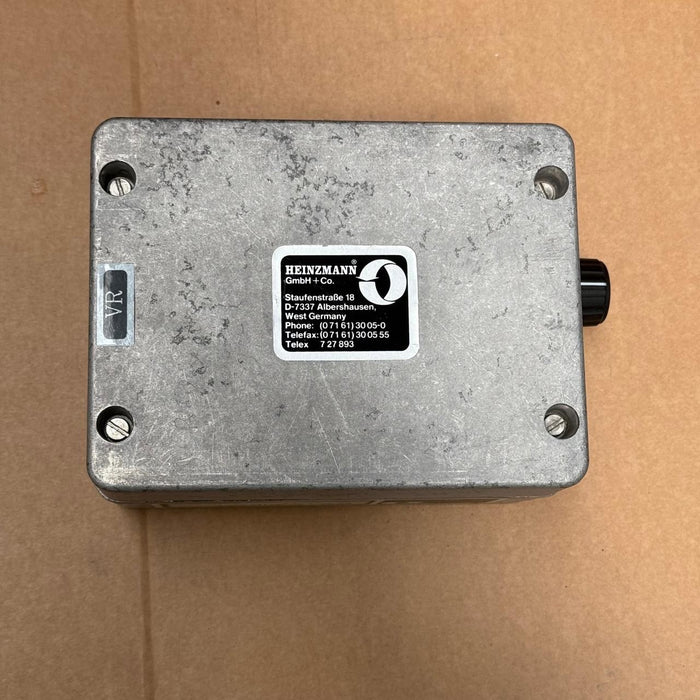

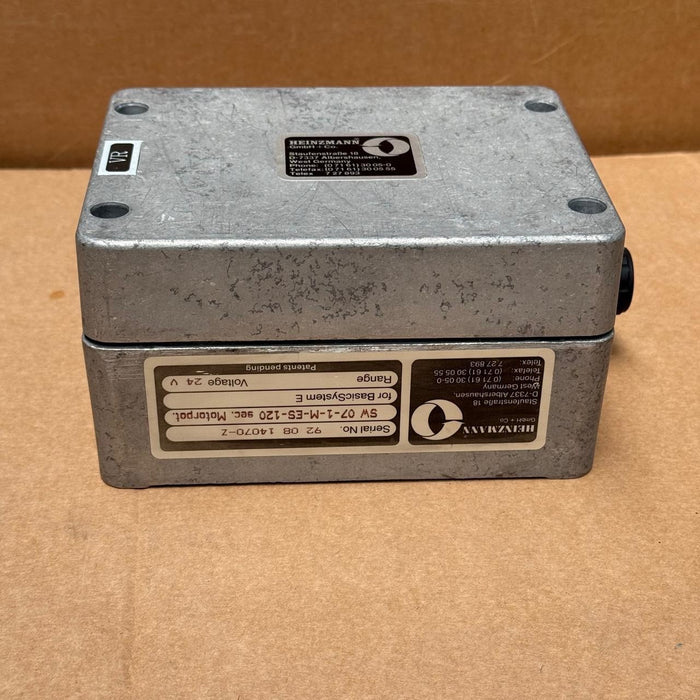

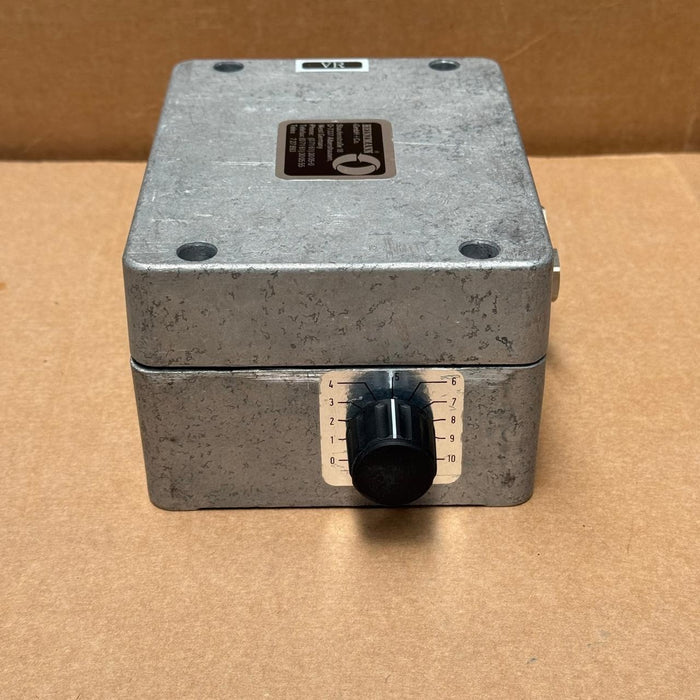

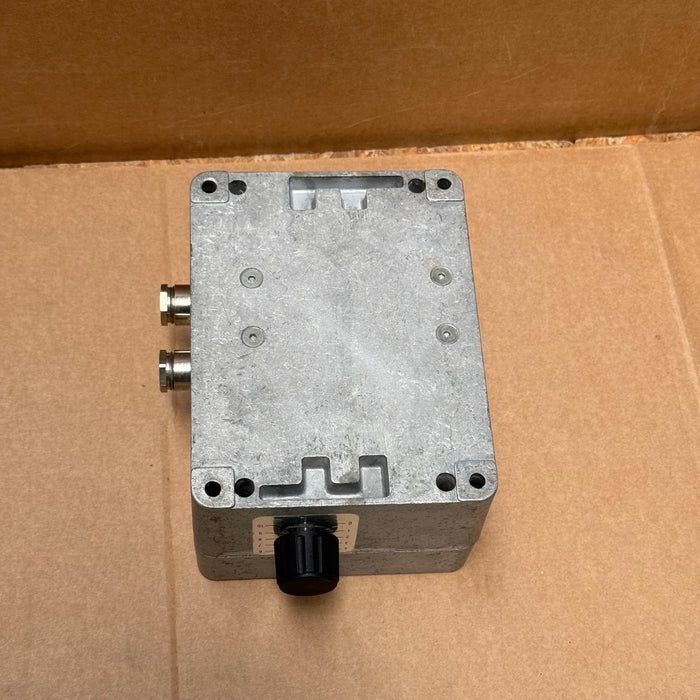

Heinzmann – SW 07‑1‑M‑ES‑120 – Motor Potentiometer, 120 s, with Limit Switch

The SW 07‑1‑M‑ES‑120 is a motor-driven potentiometer from Heinzmann featuring a 300° travel range and a 120-second adjustment time. Equipped with adjustable limit switches (“‑ES” variant), it enables precise electrical position limits and includes an internal relay board for interlocking control.

Key Features:

• Model / P/N: SW 07‑1‑M‑ES‑120

• Adjustment Time: 120 seconds for full 300° sweep

• Limit Switches: Includes stop limit cams for position control

• Configuration: M-version (manual/remote) with integrated relay logic board

• Resistance: 5 kΩ

• Drive Motor: 24 V DC, max 0.3 A

• Built-in Interlock: Automatic reversal/stopping via internal relay circuitry

• Protection Class: IP 44; temperature: −55 °C to +70 °C; humidity: up to 98%

• Housing Weight: Approximately 2.6 kg
