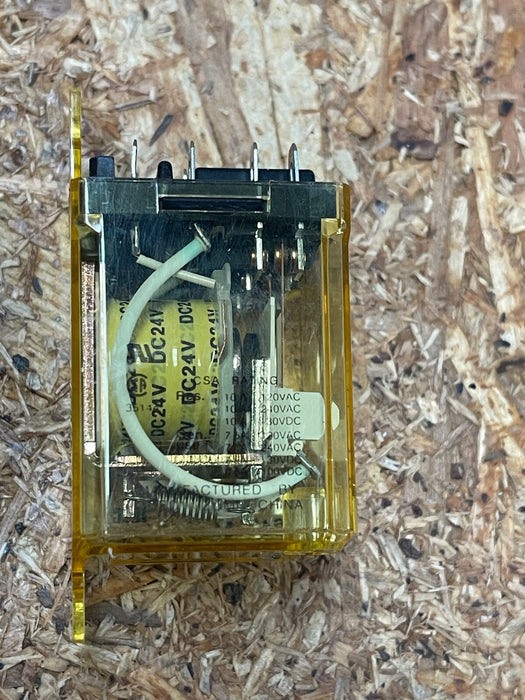

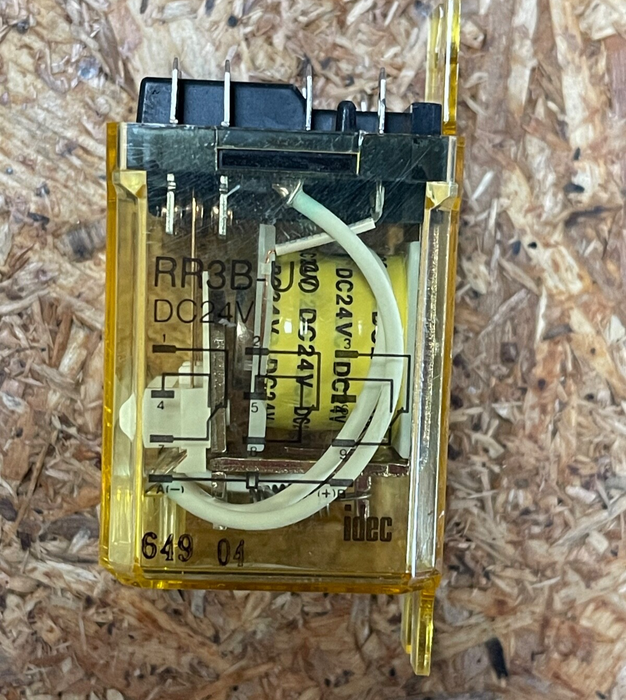

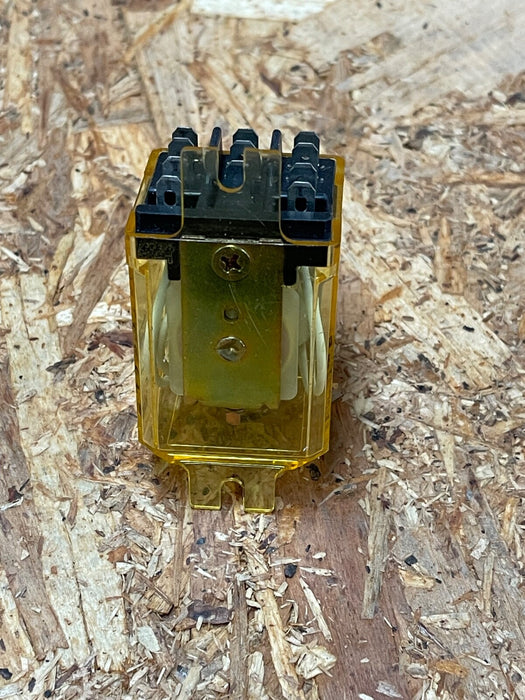

IDEC – RR3B-USDC24V – 3PDT Power Relay, 10 A, 24 V DC Coil, LED Indicator

Main Features

• Manufacturer: IDEC Corporation

• Model/MPN:

  RR3B-USDC24V

  (part of IDEC’s RR Series)

• Relay Type: Plug-in 3-pole double-throw (3PDT/3 Form C) power relay

• Coil Voltage: 24 V DC, coil current approx. 60 mA

• Contact Rating: 10 A per contact at 240 VAC or 30 V DC (max switching capacity ~2,400 VA / 300 W)

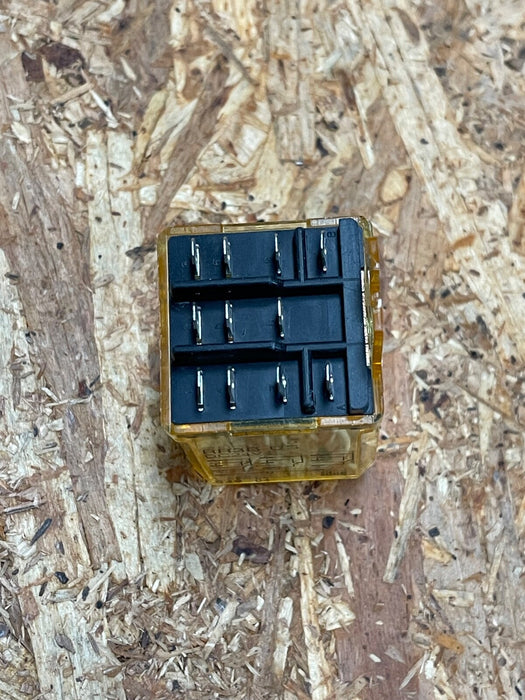

• Terminal Style: Blade-type terminals, designed for socket mounting (e.g., SR3B‑05)

• Indicator & Testing: Built-in LED coil-energized indicator; optional manual test/check button versions available

• Certifications: UL, CSA, TUV, CE, with high mechanical life (~10 million operations)

• Operating Range: −25 °C to +40 °C (DigiKey listing), IP and environmental ratings per industrial relay standards
