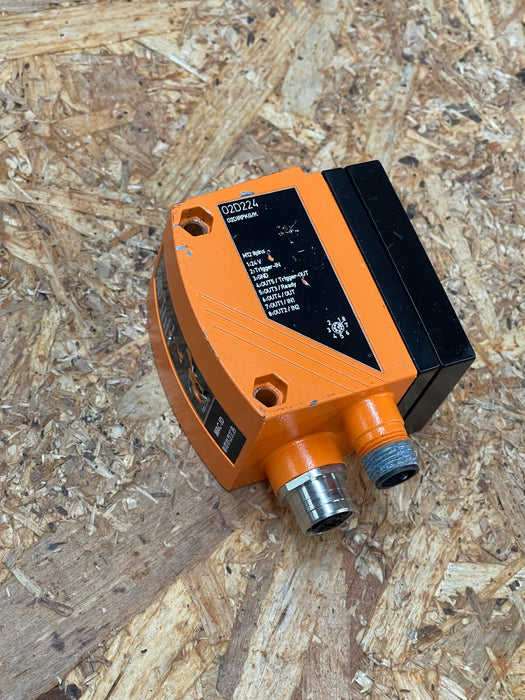

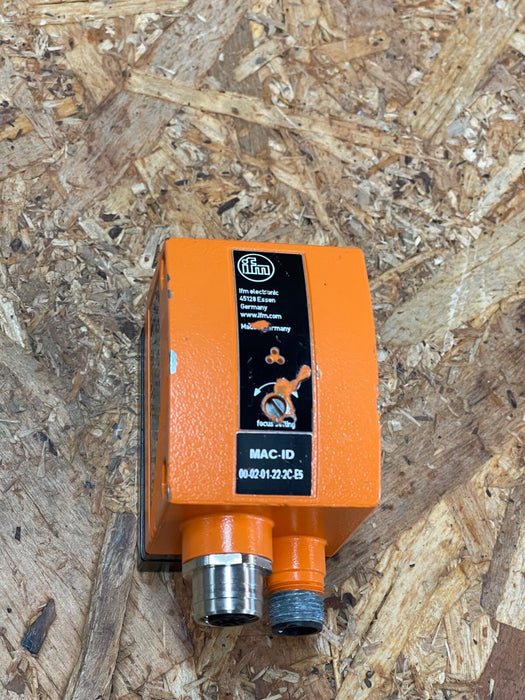

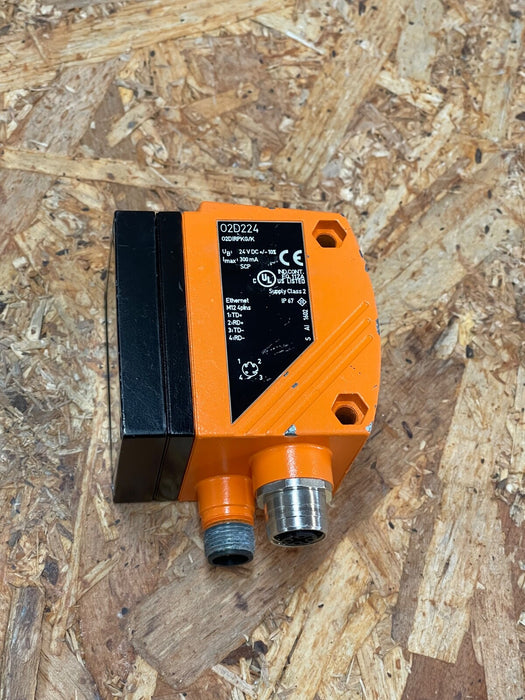

IFM Efector – O2D224 (O2DIRPKG/K) – Object Recognition 2D Sensor, 24 V DC, IP67

The IFM O2D224 is a robust fixed-mount object recognition sensor with infrared illumination and Ethernet communication, designed for precise inspection, presence detection, and dimension verification in industrial applications. With a 640×480 CMOS imager and 20 Hz scan rate, it can autonomously differentiate objects regardless of orientation.

Key Features & Technical Specifications:

• Model / MPN: O2D224 (O2DIRPKG/K)

• Image Sensor: 640 × 480 px CMOS, 20 Hz update

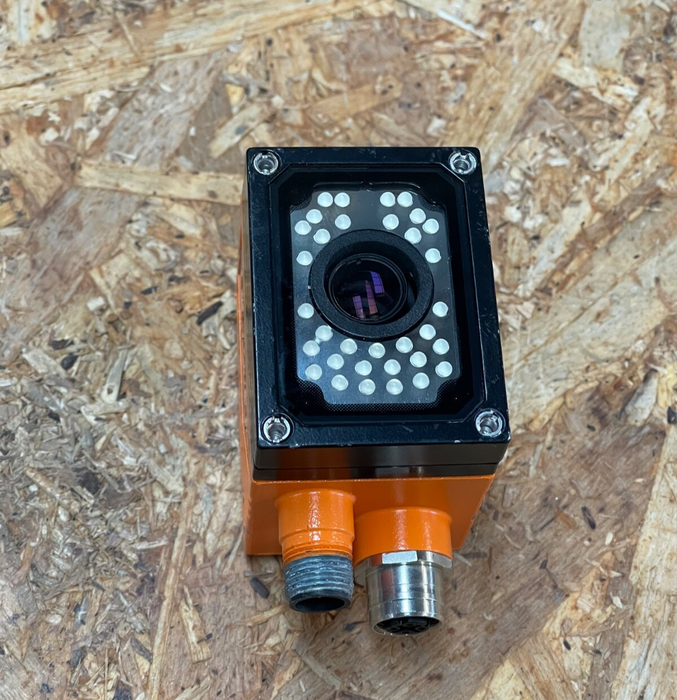

• Light Source: Infrared LEDs @ 850 nm

• Power & Consumption: 24 V DC ±10%, approx. 300 mA

• I/O Configuration:

  • 2 PNP digital inputs

  • 5 configurable PNP digital outputs (100 mA max each)

• Communications: Ethernet M12 D-coded (10/100 Mbps), supports TCP/IP, EtherNet/IP, PROFINET

• Detection Range & Resolution:

  • 75 mm distance: 15×11 mm FOV, 0.08 mm resolution

  • 2000 mm distance: 400×300 mm FOV, 2.53 mm resolution

• Housing & Environmental: Die-cast zinc, IP67, operating –10…+60 °C, rugged IEC-rated

• Indicators/UI: 10-segment bar display, 3 green LEDs, 4 yellow status LEDs; configurable via buttons or PC

• Certifications: cULus, EN 61326 EMC, IEC shock/vibration; equipped with Class 2 power supply requirement
