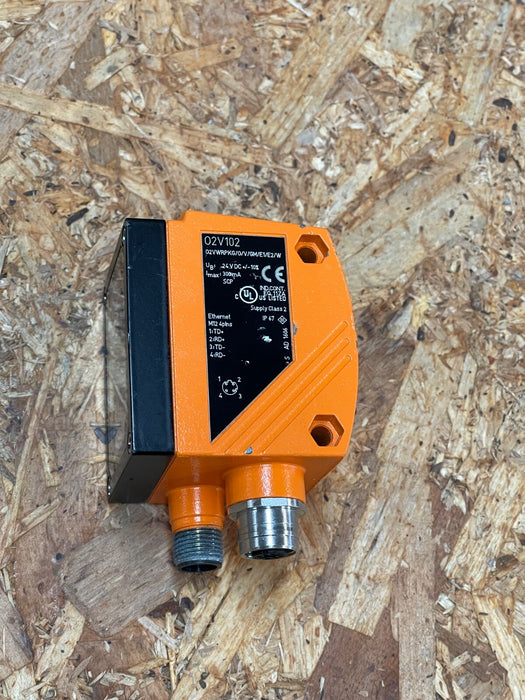

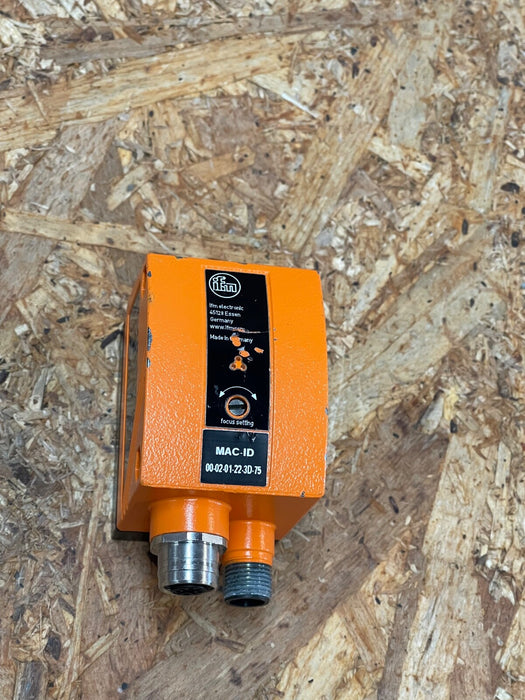

IFM Efector – O2V102 (O2VWRPKG/0/V/GM/E1/E2/W) – Object‑Inspection Vision Sensor

The IFM O2V102 is a robust industrial vision sensor designed for object inspection, counting, and presence detection. Featuring a 640×480 pixel CMOS camera with built-in white‑light LEDs, Ethernet communication, and up to 5 configurable PNP outputs, it excels in tasks like full/empty monitoring, label detection, and quality assurance.

Key Features & Technical Specifications:

• Model: O2V102 (O2VWRPKG/0/V/GM/E1/E2/W)

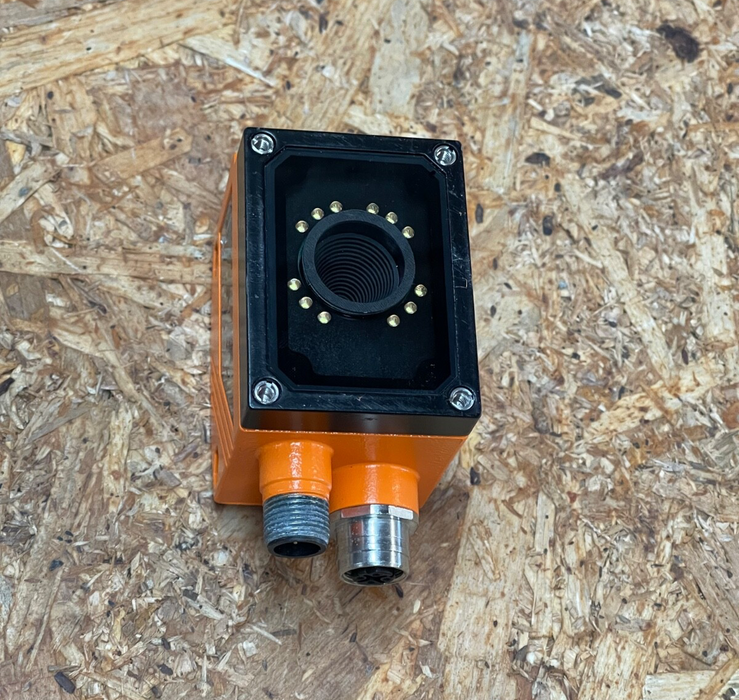

• Camera & Lighting: 640×480 px, 20 Hz scan rate, integrated white‑light LEDs

• **Field of View / Detection Resolution:**

  – 50 mm: 33×24 mm, 0.075 mm resolution

  – 2000 mm: 1320×945 mm, 2 mm resolution

• Connectivity: Ethernet (TCP/IP, EtherNet/IP), M12 D-coded connector

• Power & I/O: 24 V DC ±10%, 300 mA; 2 PNP inputs, up to 5 PNP outputs (100 mA each)

• Housing & Ratings: Die-cast zinc, IP67; operating range –10…60 °C

• User Interface: 10-segment bar display, +4 status LEDs; set parameters via buttons or PC software

• Certifications & Ruggedness: cULus, EN 61326 EMC, shock/vibration per IEC standards
