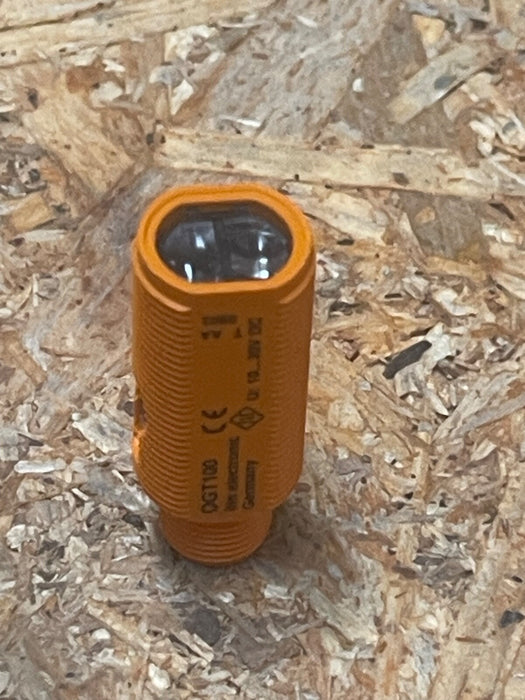

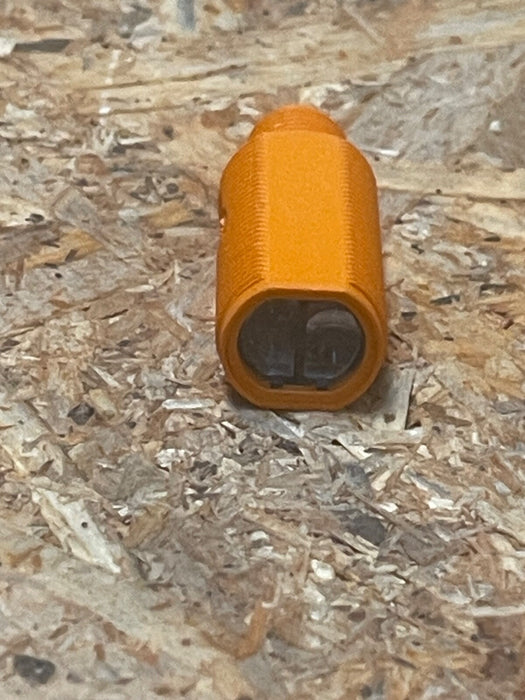

IFM EFECTOR – OGT100 – M18 Diffuse-Reflection Photoelectric Sensor 10–400 mm PNP

The IFM EFECTOR OGT100 is a compact and reliable M18 diffuse-reflection photoelectric sensor. Ideal for medium-distance object detection in conveying and material handling applications, it features adjustable sensitivity and a responsive PNP output with an M12 connector, all housed in a robust IP65 enclosure.

Key Features:

• Model: OGT100 (IFM EFECTOR)

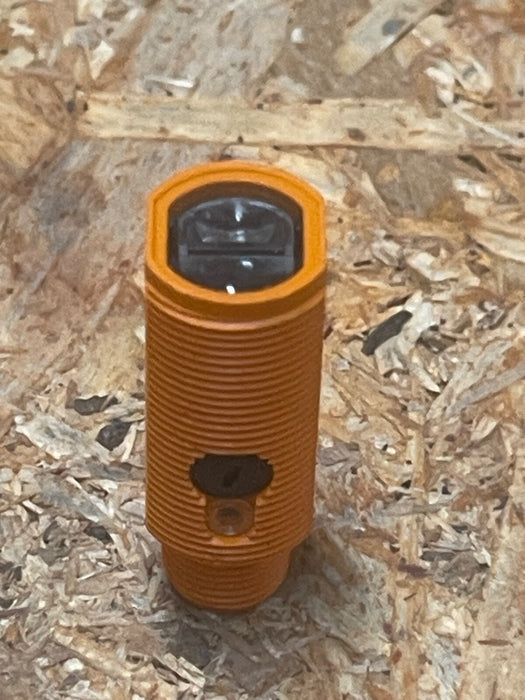

• Sensing Range: 10–400 mm (white target) with potentiometer adjustment

• Output: DC PNP, light-ON mode, 200 mA max load, ≤ 2.5 V voltage drop

• Switching Frequency: Up to 1,000 Hz, response time sub‑1 ms

• Operating Voltage: 10–30 V DC; current ~20 mA

• Light Source: 645 nm red light with 25 mm beam spot at max range

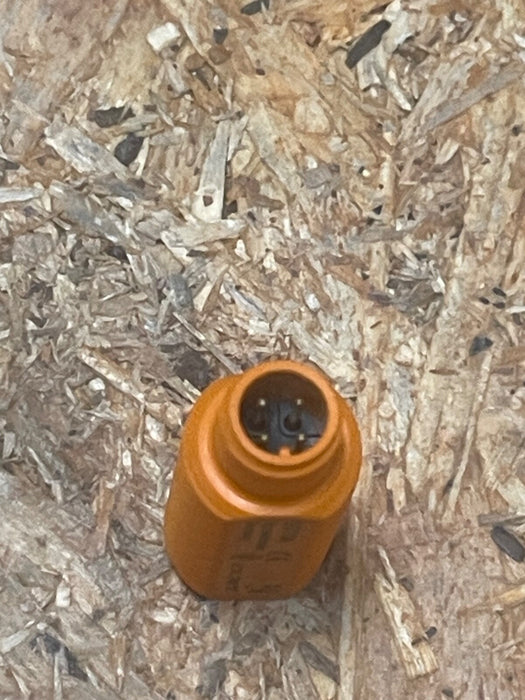

• Housing & Connector: M18 × 1 threaded ABS housing, M12 A‑coded connector, IP65

• Protection & Durability: Reverse polarity, short-circuit, overload protection; complies with EN 60947‑5‑2

• Ambient Conditions: –25 °C to +60 °C; MTTF ~901 years

• Dimensions & Weight: 44 mm length; ~14 g
