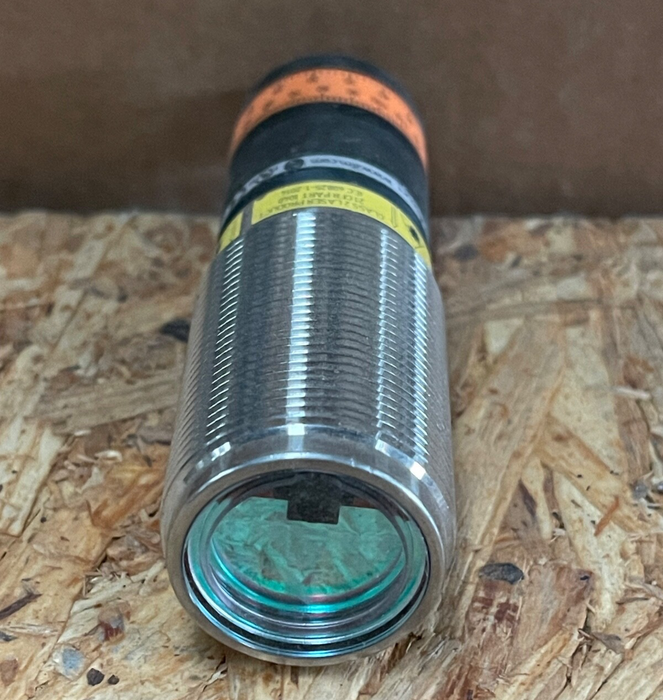

ifm electronic - OID200 - Laser Distance Sensor, 0.03–2 m, IO-Link

The ifm electronic OID200 is a high-performance laser distance sensor designed for precise object detection and distance measurement in industrial automation applications. Utilizing time-of-flight technology, it offers reliable performance with background suppression and color-independent detection, making it suitable for various challenging environments.

Key Features:

• Model: OID200

• Brand: ifm electronic

• Sensor Type: Laser distance sensor with time-of-flight measurement

• Measuring Range: 0.03 to 2.0 meters

• Output Configuration: 2 PNP digital outputs (NO/NC, complementary)

• Switching Frequency: 11 Hz

• Sampling Rate: 33 Hz

• Light Source: Red laser, 650 nm wavelength, Class 2

• Operating Voltage: 10–30 V DC

• Current Consumption: <75 mA at 24 V

• Interface: IO-Link (COM2, 38.4 kBaud, Revision 1.1)

• Housing Material: Stainless steel (AISI 316L)

• Protection Rating: IP65/IP67

• Ambient Temperature Range: -25°C to +60°C

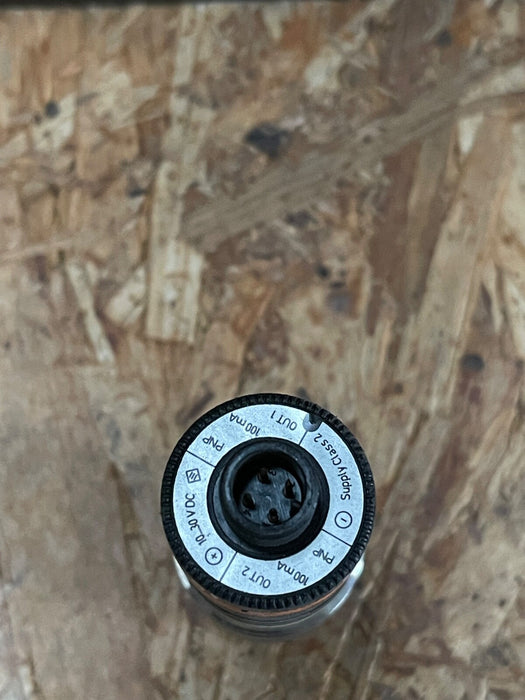

• Connection: M12 connector, 4-pin

• Dimensions: M30 x 1.5 thread, 100 mm length

• Weight: Approximately 209 g

• Display: LED indicators for power and switching status

• Adjustment: Setting ring for easy parameter configuration

• Applications: Ideal for object detection, positioning, and distance measurement in automation systems, including material handling, packaging, and assembly lines
