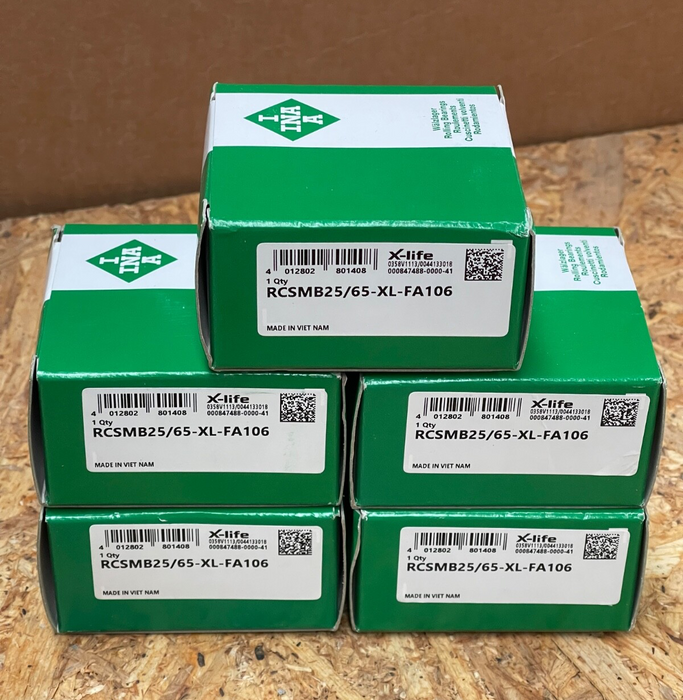

The INA RCSMB25/65-XL-FA106 is a high-performance radial insert ball bearing engineered for demanding industrial applications. Featuring a 25 mm inner diameter and a 65.1 mm outer diameter, this bearing incorporates a rubber interliner and an eccentric locking collar for secure shaft mounting. The double-sided P seals provide effective protection against contaminants, ensuring longevity and reliability. As part of INA’s X-Life series, it offers enhanced performance characteristics, including higher load ratings and extended service life.

Key Features:

Model: RCSMB25/65-XL-FA106
Brand: INA
Inner Diameter (d): 25 mm
Outer Diameter (D): 65.1 mm
Width (B): 31 mm
Locking Mechanism: Eccentric locking collar
Sealing: Double-sided P seals
Special Features: Rubber interliner for vibration damping
Dynamic Load Rating (Cr): 14,900 N
Static Load Rating (C₀r): 7,800 N
Weight: Approximately 0.24 kg
Series: X-Life (enhanced performance)
Special Treatment: FA106 (noise-tested)
Applications: Ideal for use in conveyor systems, agricultural machinery, and other industrial equipment requiring reliable bearing performance.
