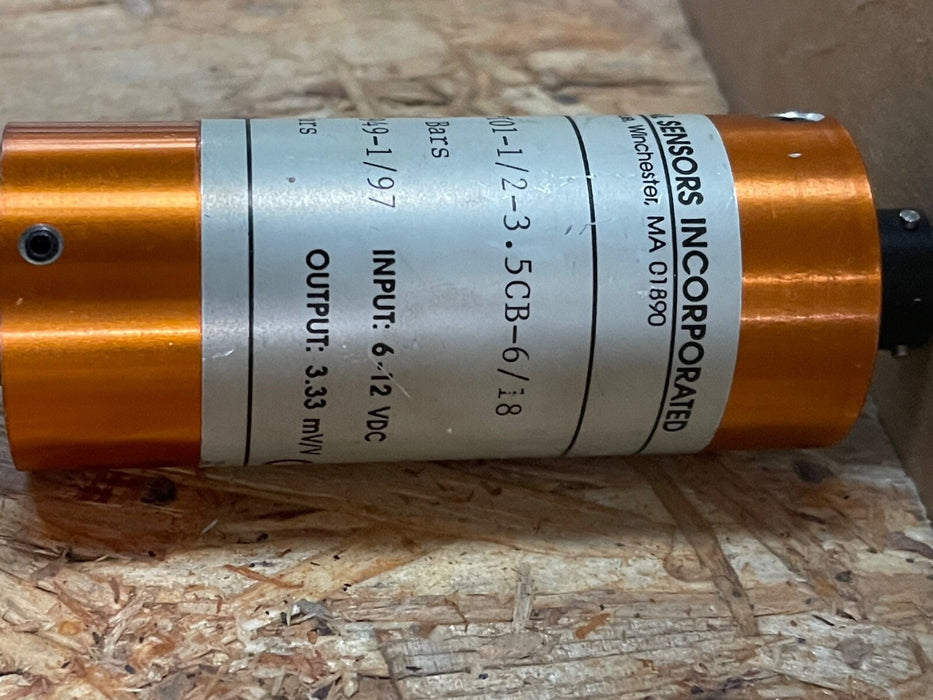

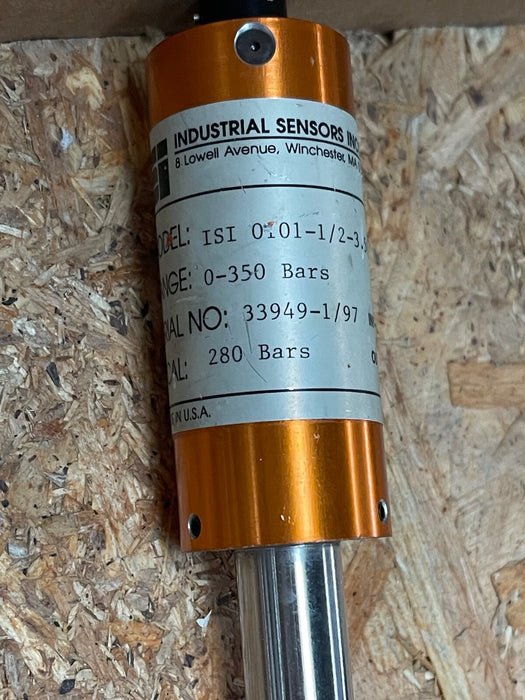

Industrial Sensors Inc – ISI 0101-1/2-3.5CB-6/18 – Pressure Transducer, 0–350Bar

The ISI 0101-1/2-3.5CB-6/18 is a high-pressure transducer manufactured by Industrial Sensors Inc., designed for precision pressure monitoring in industrial and hydraulic systems. Rated for up to 350 bar (5,076 psi), this sensor delivers a strain-gauge output of 3.33 mV/V and operates on a 6–12 V DC supply. Featuring a flexible armored conduit and rugged anodized aluminum housing, it is well-suited for use in demanding environments requiring accurate, reliable pressure measurement.

Key Features:

• Model: ISI 0101-1/2-3.5CB-6/18

• Brand: Industrial Sensors Inc. (Winchester, MA, USA)

• Pressure Range: 0–350 bar (approx. 0–5,076 psi)

• Calibrated Output: 3.33 mV/V

• Input Voltage: 6–12 V DC

• Overpressure Tolerance: 280 bar (per labeling)

• Sensor Type: Strain-gauge based pressure transducer

• Build: Cylindrical anodized aluminum body with orange finish

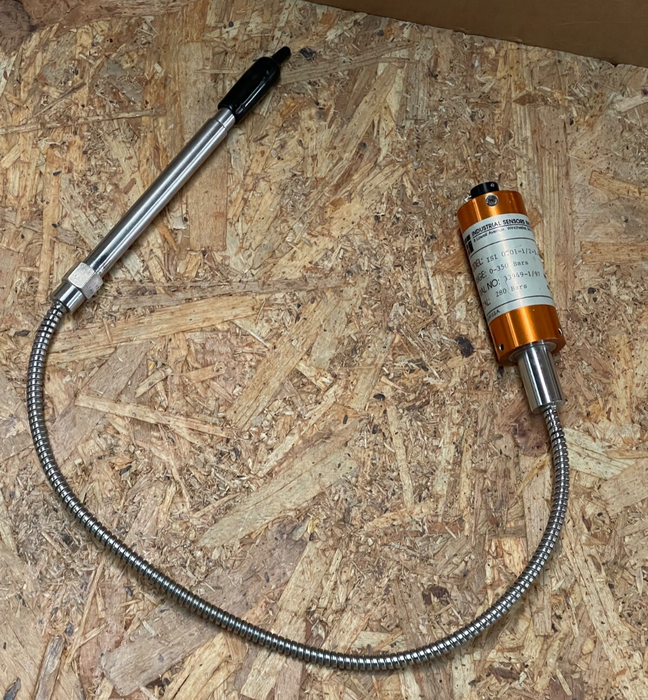

• Connection: Armored stainless-steel flex conduit to pressure interface
