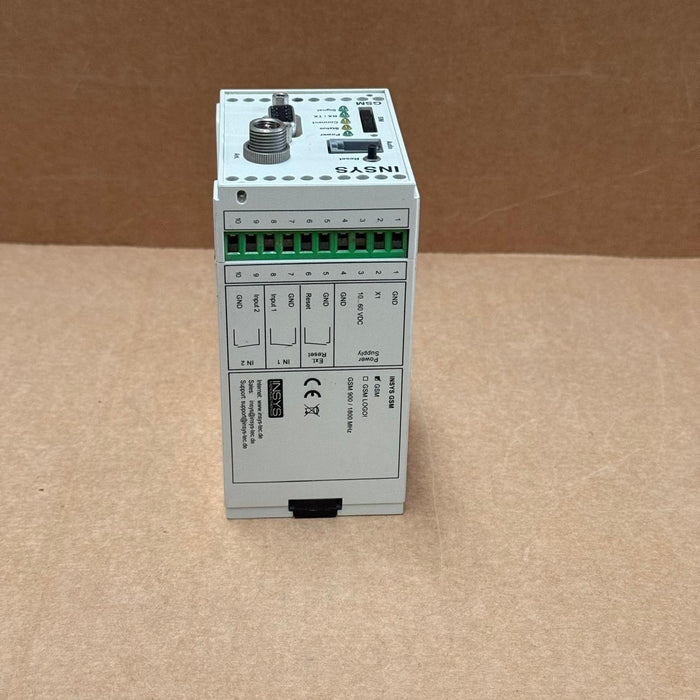

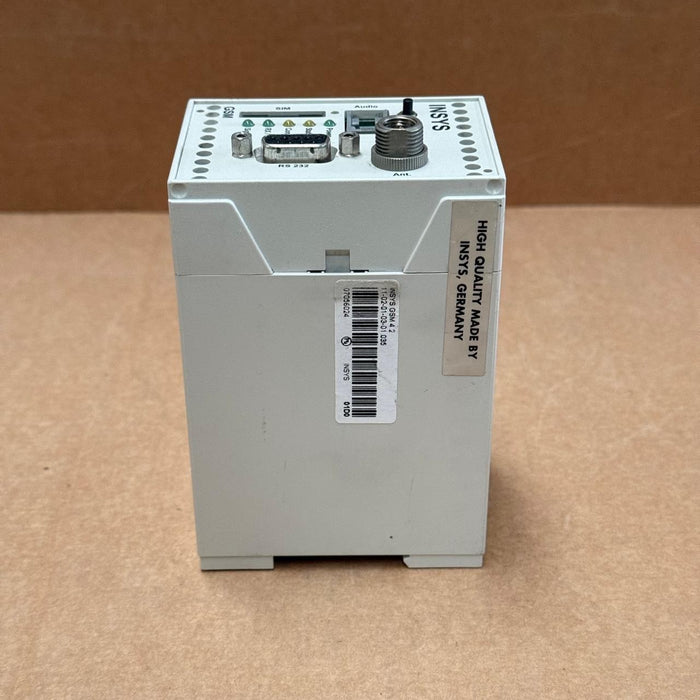

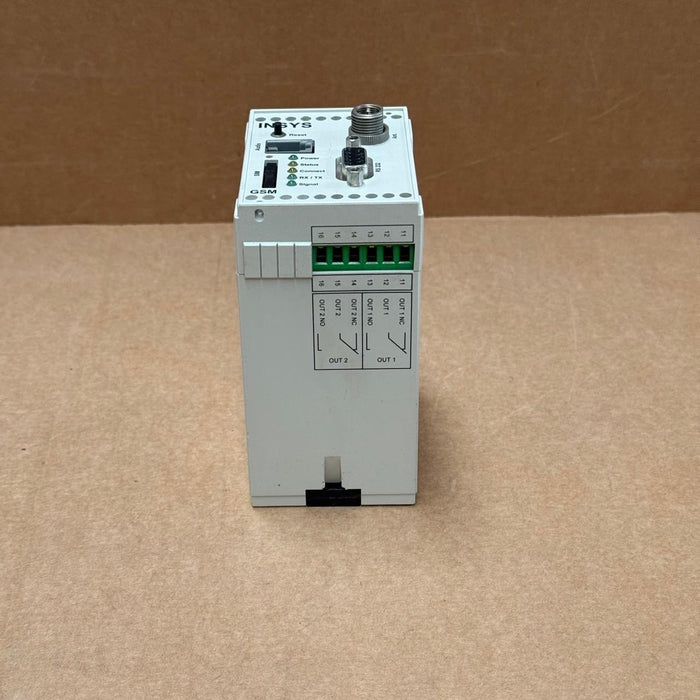

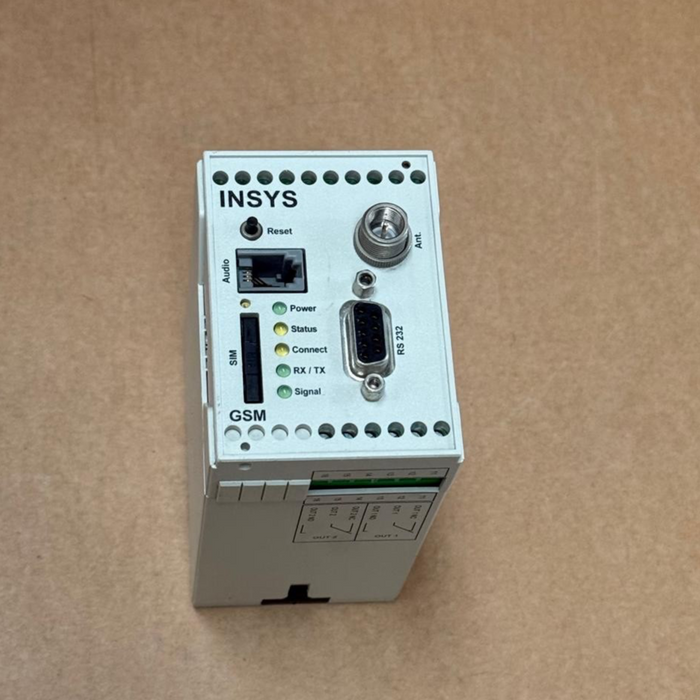

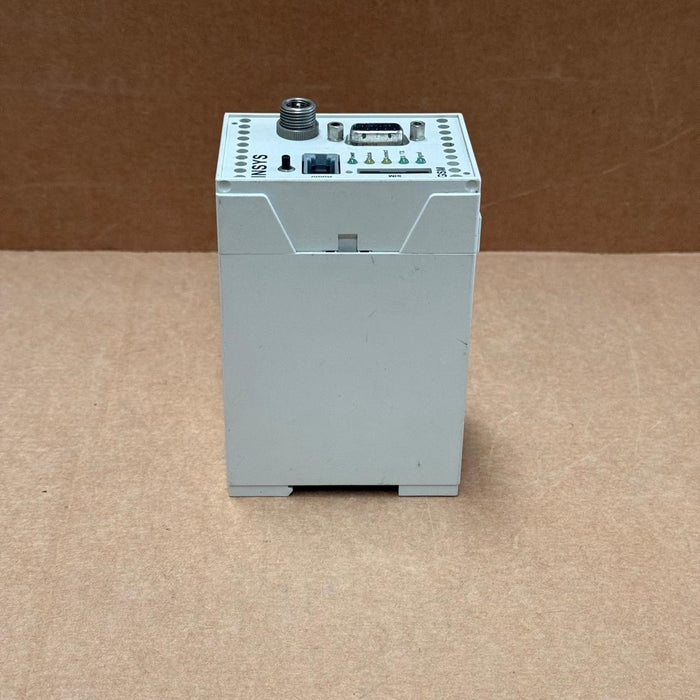

INSYS – 11‑02‑01‑03‑01.035 – GSM 4.2 DIN-Rail Modem, 4x Digital I/O, 10–60 VDC

The INSYS 11‑02‑01‑03‑01.035 is a GSM 4.2 modem designed for DIN-rail mounting in industrial environments. It supports SMS-based configuration and monitoring, features four configurable digital I/Os, and operates from a wide 10–60 VDC power input—ideal for remote control, alarms, and M2M communication.

Key Features:

• Model: GSM 4.2

• Part Number: 11‑02‑01‑03‑01.035

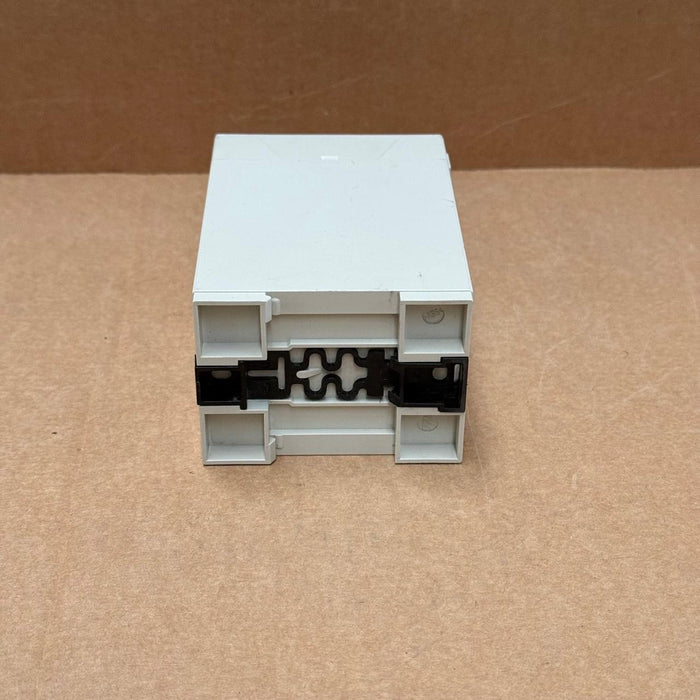

• Mounting: DIN Rail

• Power Supply: 10–60 VDC

• Interfaces:

 – 1x RS232 serial interface

 – 4x digital I/O (configurable)

• GSM Band Support: Quad-band GSM/GPRS

• Configuration: Via AT commands and SMS

• Antenna: SMA connector (external antenna required)

• Status Indicators: Power and modem status LEDs

• Operating Temperature: –25 °C to +60 °C

• Enclosure: Industrial-grade compact housing
