Intermatec – TP75W-48S24 – 75W DC-DC Converter 48V to 24V 3.13A

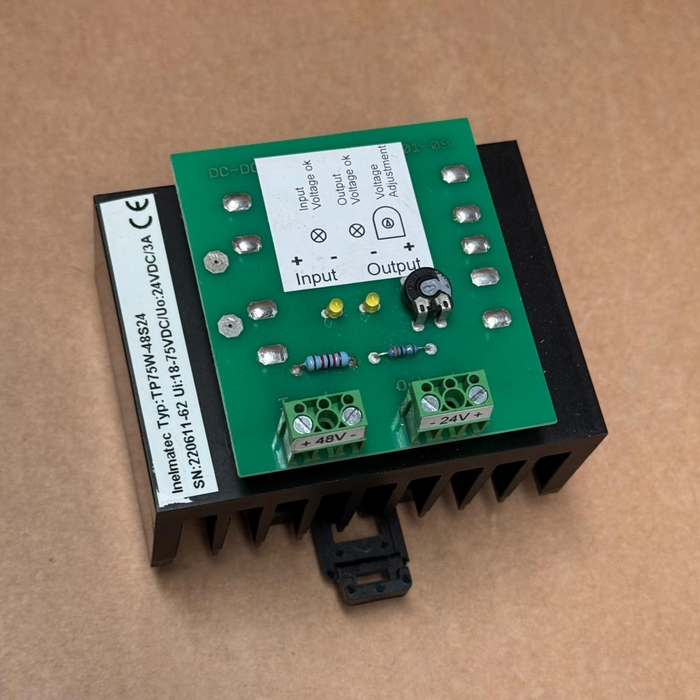

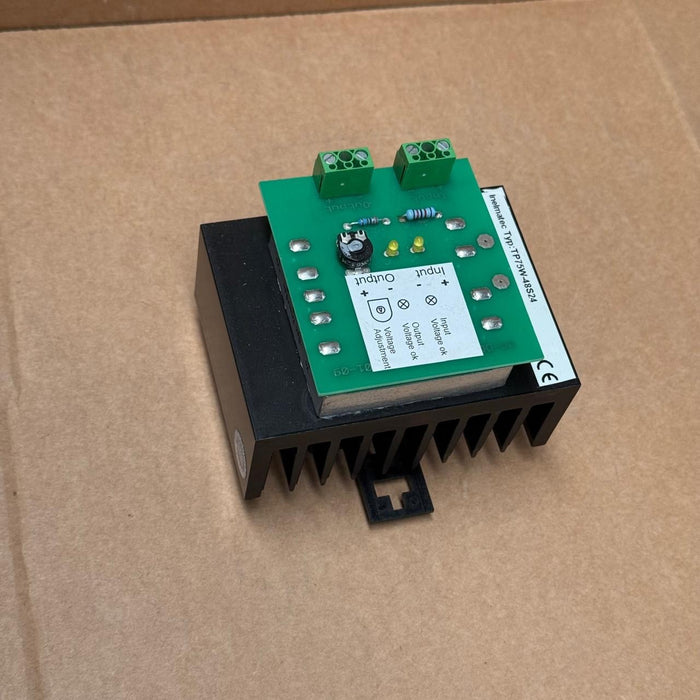

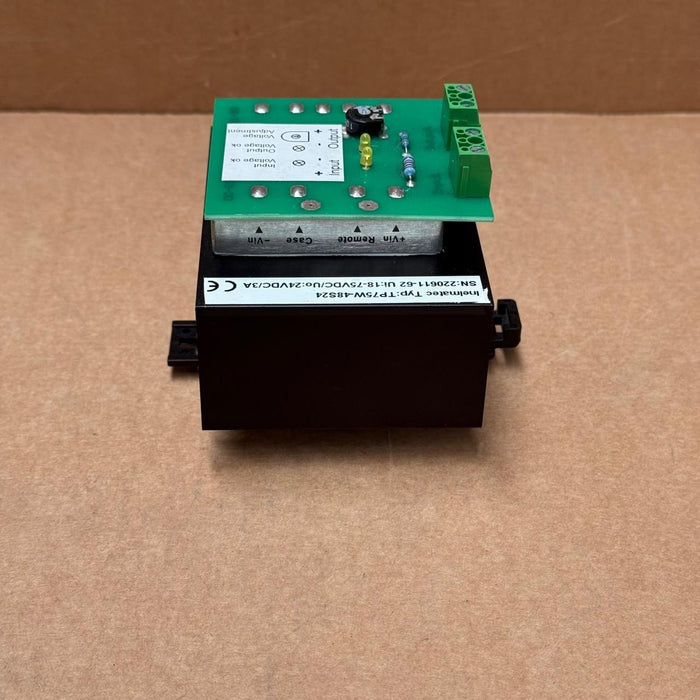

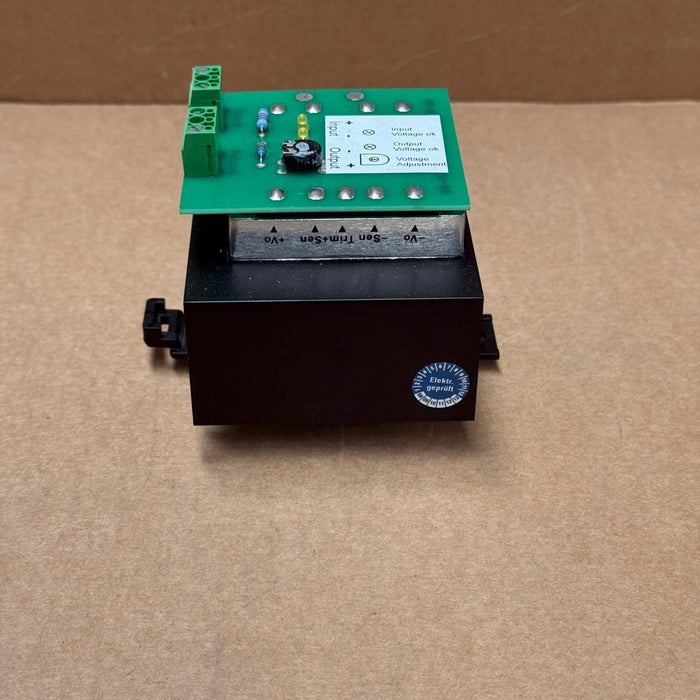

The Intermatec TP75W-48S24 is a compact DC-DC converter designed for industrial applications requiring stable 24V power output from a wide 18–75V DC input range. This model includes a robust heatsink and a terminal block interface for quick integration, featuring LED indicators and output voltage adjustment.

Key Features:

• Model: TP75W-48S24

• Manufacturer: Intermatec

• Input Voltage Range: 18–75 VDC

• Output Voltage: 24 VDC

• Output Current: 3.13 A

• Power Rating: 75 W

• Output Adjustment: Yes (via trim potentiometer)

• Indicators: Input voltage OK, Output voltage OK

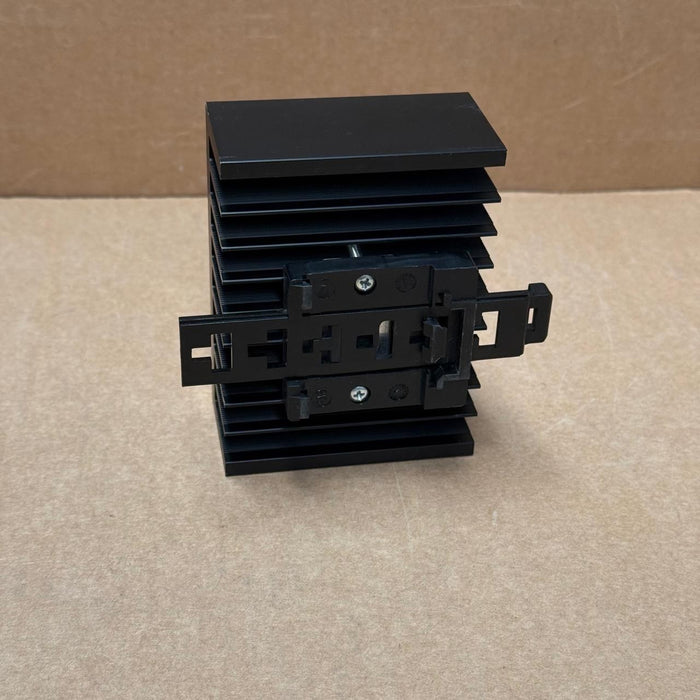

• Mounting: DIN rail with integrated heat sink

• Interface: Pluggable terminal block

• Dimensions: Approx. 95 x 75 x 60 mm
