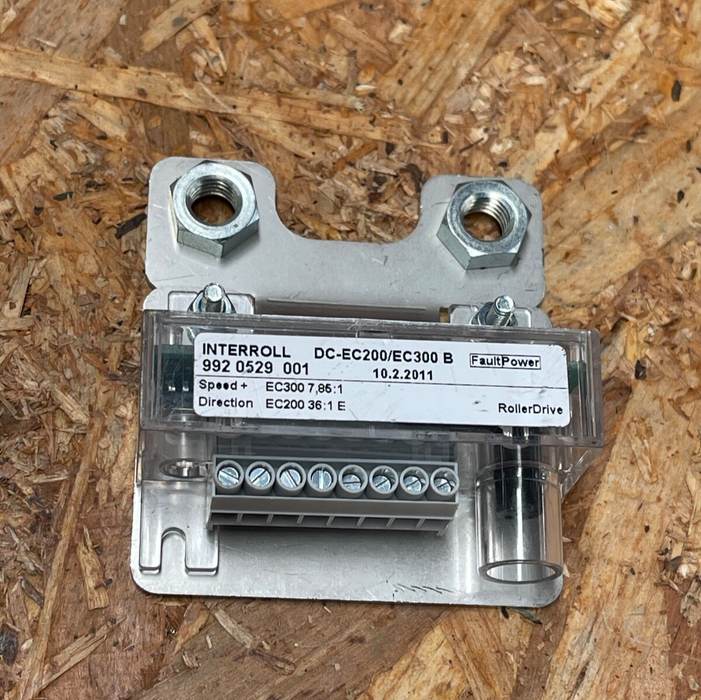

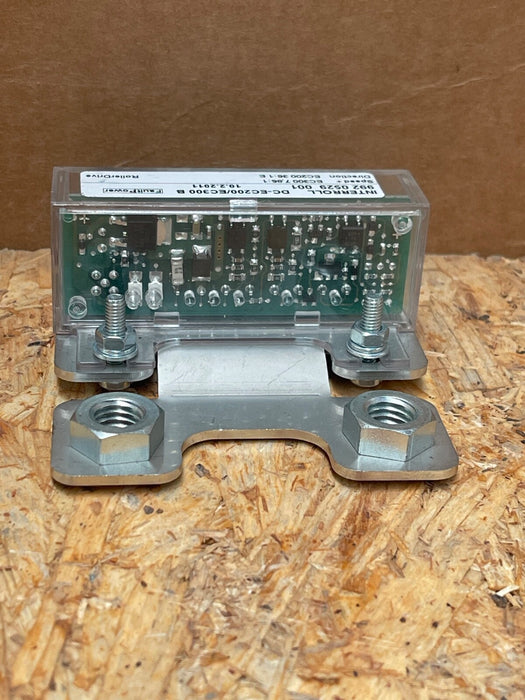

Interroll – DC‑EC200/EC300 B - 992 0529 001 – RollerDrive Conveyor Motor Control

The Interroll DC‑EC200/EC300 B (PN 992 0529 001) is a compact, DIN-rail mounted drive controller designed for the EC200/EC300 RollerDrive series. Engineered for use in conveyor systems, it supports 24 V DC brushless motors, delivering precise speed and torque control with integrated stall and thermal protection.

Key Features:

• Model: DC‑EC200/EC300 B, Part No. 992 0529 001

• Brand: Interroll – RollerDrive series

• Supply Voltage: 24 V DC (18–30 V DC)

• Current Rating: 4 A continuous (peak up to ~5.5 A)

• Protection: Stall retry logic, over-temperature and overload shutdown, safe restart cycles

• Environmental: IP54/IP66 enclosure; 0–40 °C operating; up to 1 km altitude

• Form Factor: 50 mm width, 0.04 kg; DIN-rail mount
