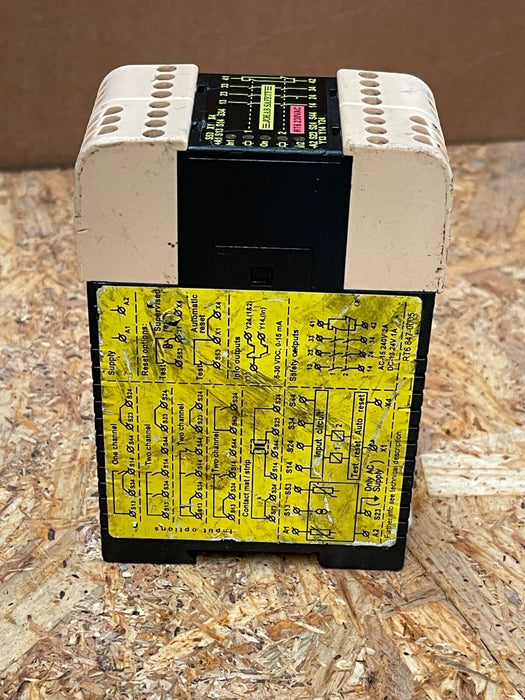

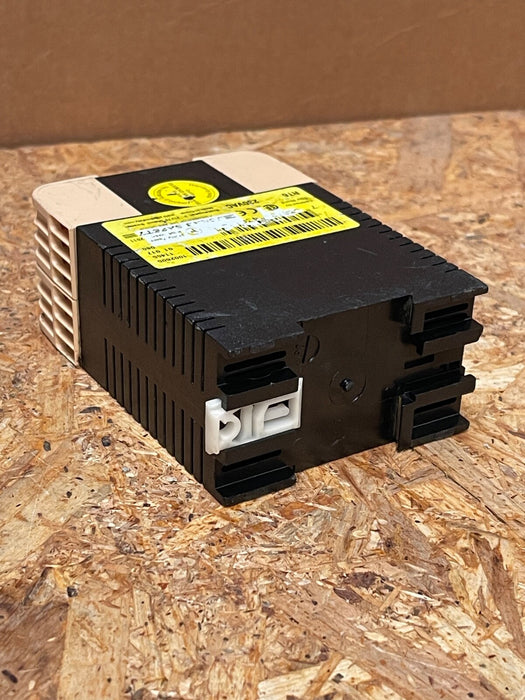

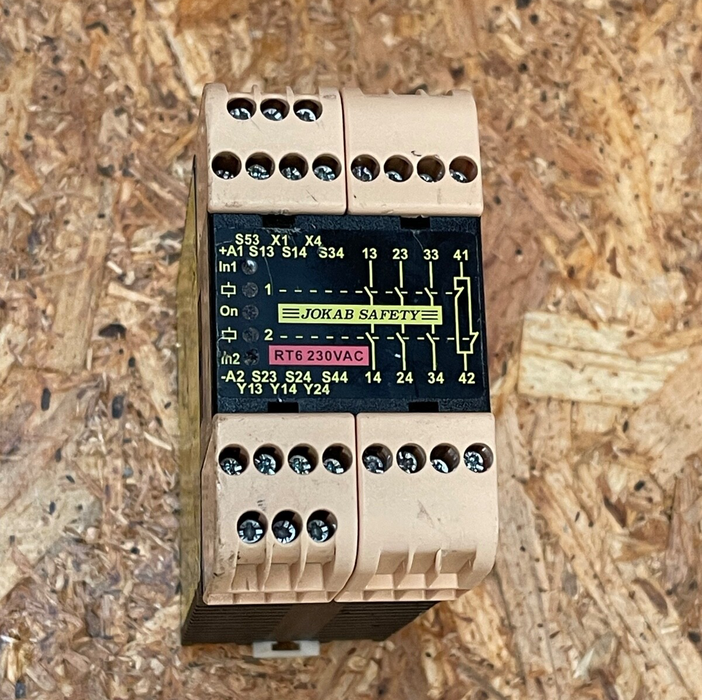

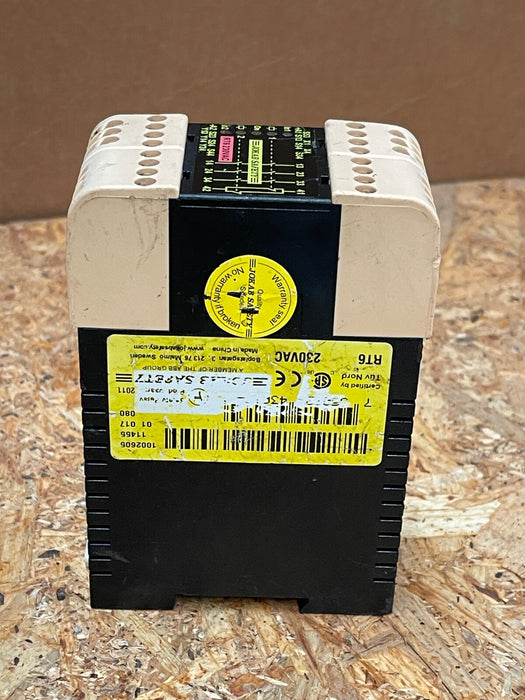

The ABB 2TLA010026R0500 (RT6 230AC) is a versatile safety relay designed for monitoring safety devices such as emergency stops, light curtains, and interlocked gates. Operating on a 230 V AC supply, this relay features a compact 45 mm housing and offers multiple input configurations, including single or dual-channel inputs. It provides three normally open (NO) and one normally closed (NC) safety outputs, ensuring reliable performance in safety-critical applications.

Key Features:

Model: RT6 230AC
Brand: ABB (Jokab Safety)
Part Number: 2TLA010026R0500
Supply Voltage: 230 V AC
Housing Width: 45 mm
Input Options: Single or dual-channel
Reset Modes: Manual supervised or automatic
Safety Outputs: 3 NO + 1 NC relay contacts
Information Outputs: 2 voltage-free transistor outputs
Mounting: DIN rail
Standards Compliance: SIL3 (EN 62061), PL e (EN ISO 13849-1), Category 4
Applications: Suitable for emergency stops, light curtains, interlocked gates, safety mats, and other safety devices
