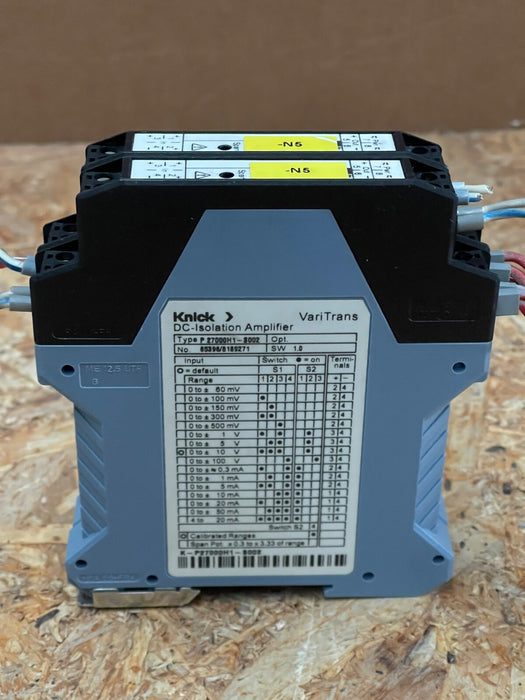

Knick – P27000H1‑S002 – Varitrans Universal Isolated Signal Conditioner
The Knick P27000H1-S002 is a precision, DIN-rail-mountable, 3-port isolation amplifier that converts and galvanically isolates DC voltage or current signals. Configurable via DIP switches for numerous input/output combinations, with full galvanic isolation up to 1 kV, it’s ideal for clean signal transmission in industrial control, process automation, and safety systems.
Key Features & Technical Specifications:
Model: P27000H1‑S002, part of Knick’s P27000 series

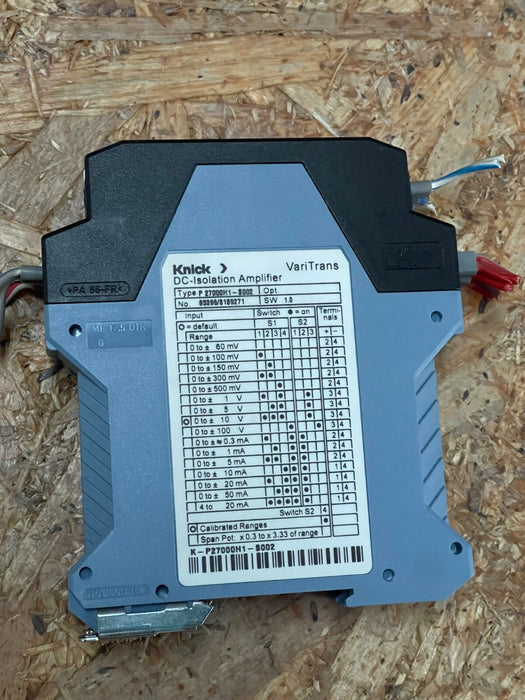

Input Range: Multipurpose—±20 mV to ±200 V or ±0.1 mA to ±100 mA (unipolar/bipolar), switchable

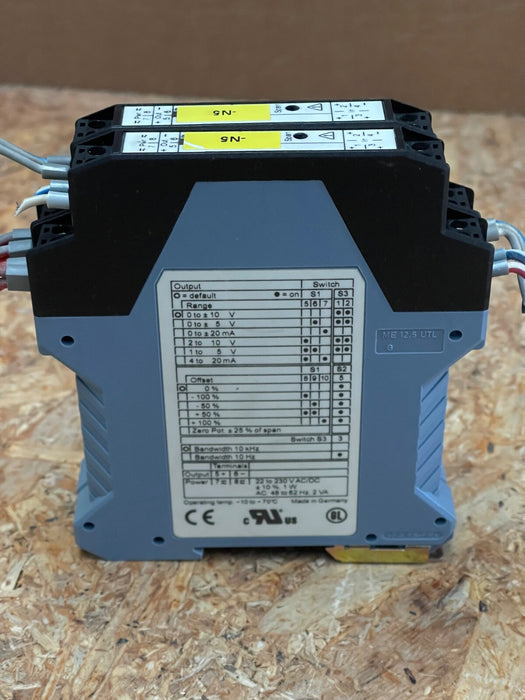

Output Range: Configurable to 0 … ±10 V or 0 … ±20 mA; also supports 4–20 mA
Power Supply: Wide-range 20–253 VAC/DC
Isolation: 3-port galvanic separation (input/output/power) up to 1000 VAC/DC; 5 kVAC test voltage
Accuracy: High-precision with switchable cut-off frequencies of 10 Hz or 10 kHz

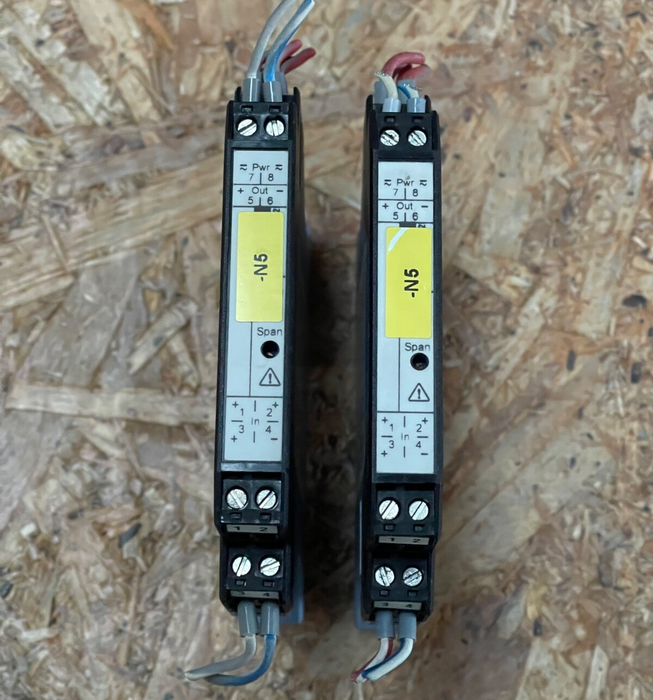

Construction: Compact 12.5 mm housing, DIN-rail mount, pluggable screw terminals, IP20 rated
Operating Temp: –10 °C to +70 °C; weight ~150 g
