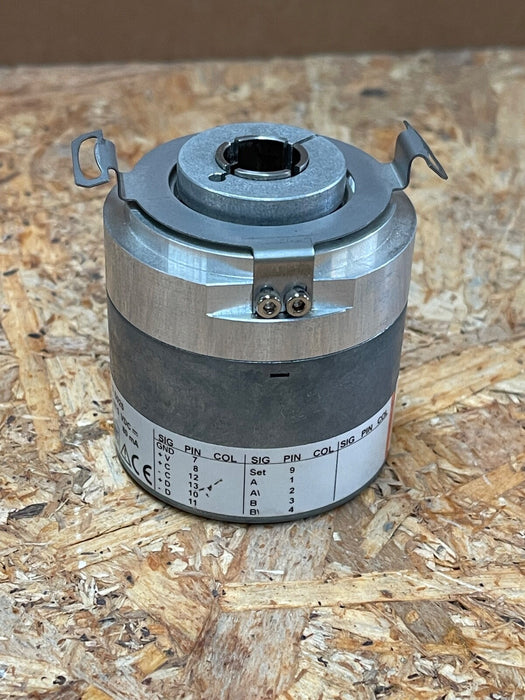

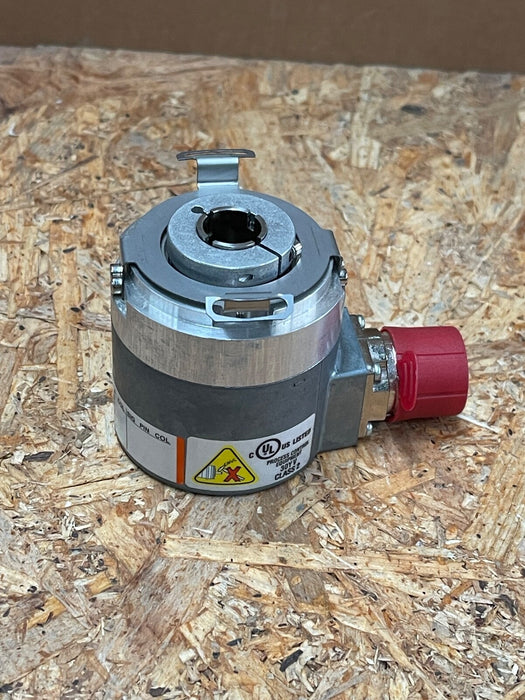

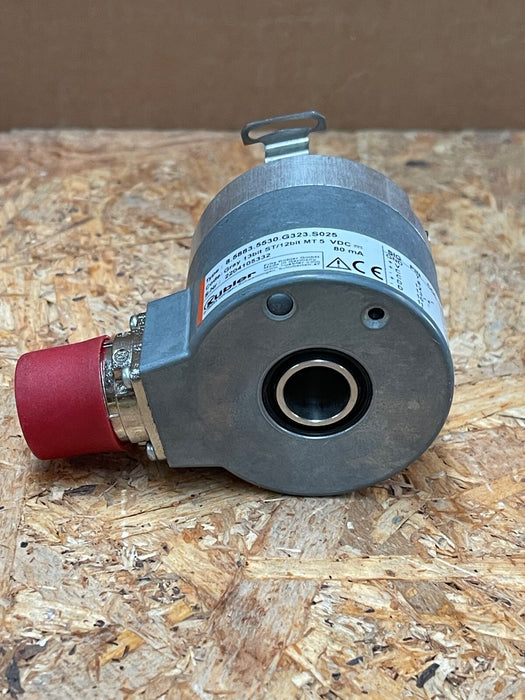

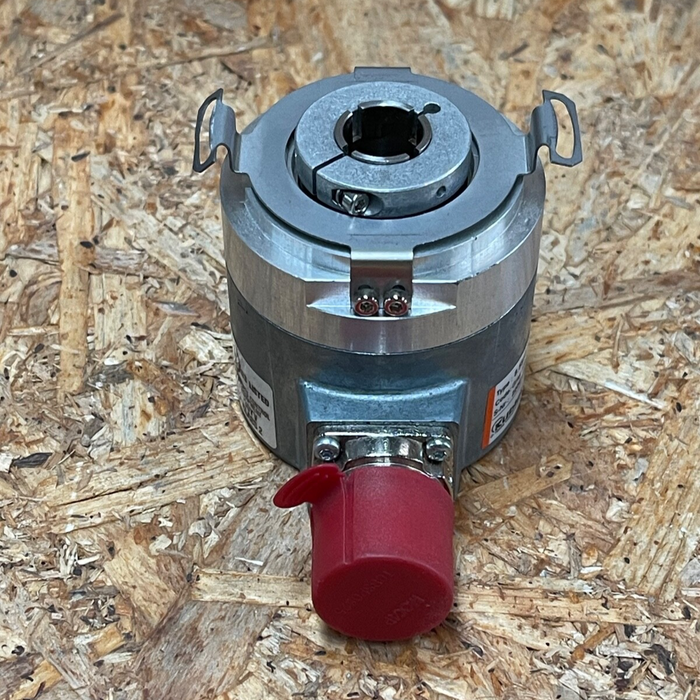

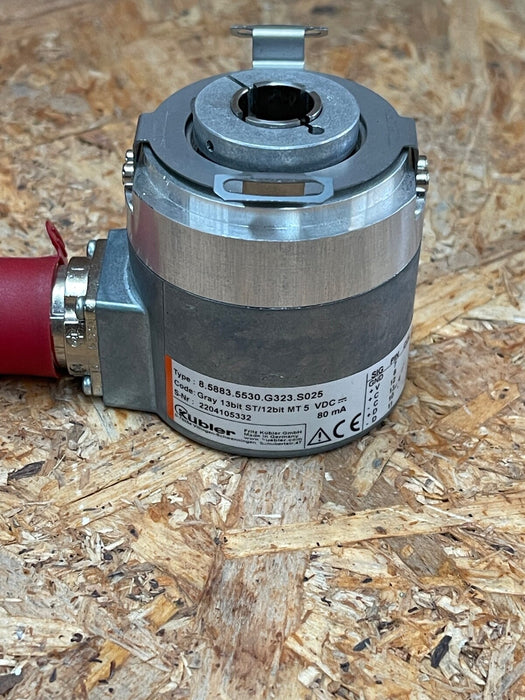

The Kübler Sendix 5883 (MPN 8.5883.5530.G323.S025) is a rugged, multiturn absolute encoder featuring a 58 mm diameter die-cast housing and a 14 mm hollow-through shaft. With optical sensing and mechanical gearing, it delivers high-resolution positional feedback and is engineered for harsh environments (IP65/IP67, –40 °C to +90 °C). The encoder supports SSI interface with 13‑bit singleturn and 12‑bit multiturn resolution, plus an additional 2048 ppr incremental SinCos track. Its 5 V DC supply ensures compatibility with industrial controls like PLCs, CNC, and servo systems.

Key Features:

Model: 8.5883.5530.G323.S025 (Sendix 5883)
Brand: Kübler
Shaft: 14 mm hollow-through shaft
Interface: SSI output, Gray code
Resolution: 13 bit singleturn; 12 bit multiturn; 2048 ppr SinCos incremental track
Housing: 58 mm; die-cast flange; options for Synchro, Servo, Clamping or Euro flange
Protection: IP65/IP67; –40 °C to +90 °C operating temperature
Speed: Up to 9,000 rpm
Supply Voltage: 5 V DC (optionally 10–30 V DC)
Connection: Options include radial/tangential cable, M12 or M23 connector
Weight: Approx. 0.45–0.50 kg
