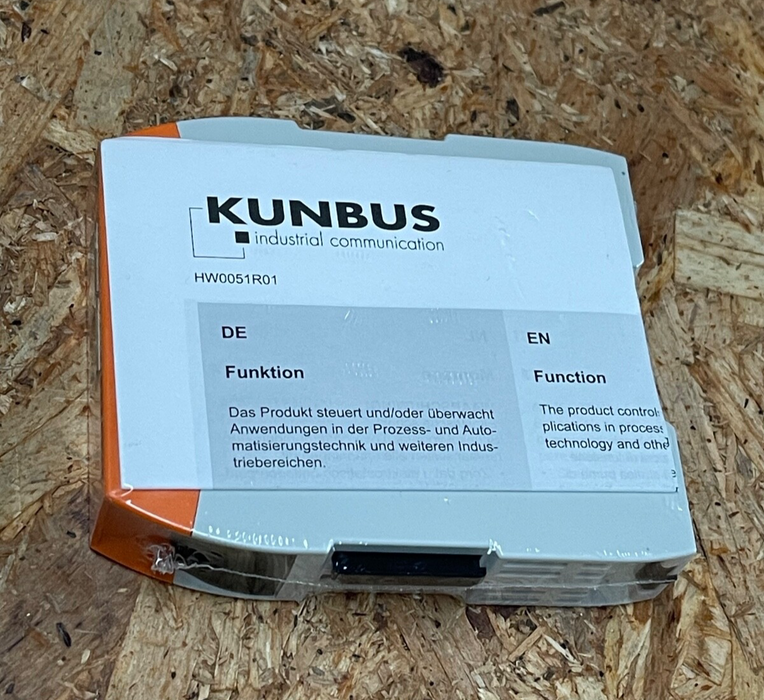

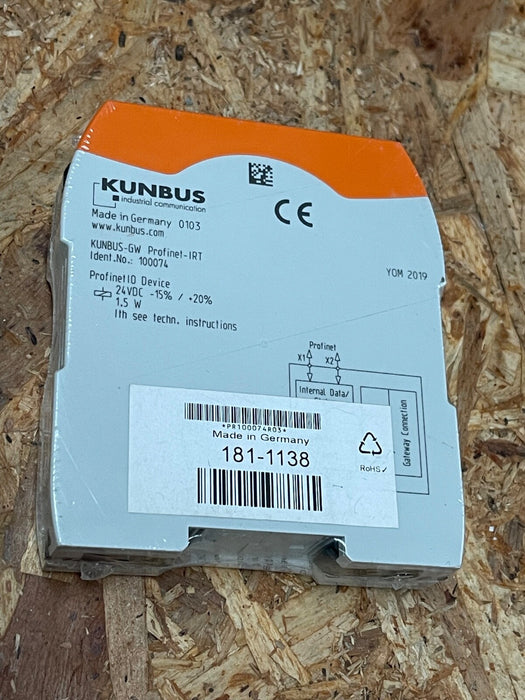

KUNBUS – PR100074 RevPi Gate PROFINET IRT – DIN‑Rail PROFINET Gateway

Main Features

• Manufacturer: KUNBUS (Revolution Pi line)

• Model/MPN: PR100074 – PROFINET IRT Device/Slave gateway

• Function: Enables Revolution Pi base modules (Core or Connect) to connect as a PROFINET IRT device (slave) on industrial Ethernet networks

• Connectivity:

  • 2 × RJ45 Ethernet ports, supports up to 100 Mbps

  • Communicates via overhead PiBridge connector to RevPi base

• I/O Data Capacity: 512 bytes input/output cyclic data exchange

• Power & Consumption: Powered from 24 V DC (±15–20%), typical current draw ~100 mA

• Form Factor: DIN‑rail mountable (EN 50022), compact 22.5 mm width, approx. 110 × 22.5 × 101 mm, 90 g

• Operating Conditions: +0 °C to +60 °C ambient temperature, IP20 enclosure

• Certifications: CE and UL (E494534); suitable for RevPi Connect 5/S and RevPi Core S/3+ systems
