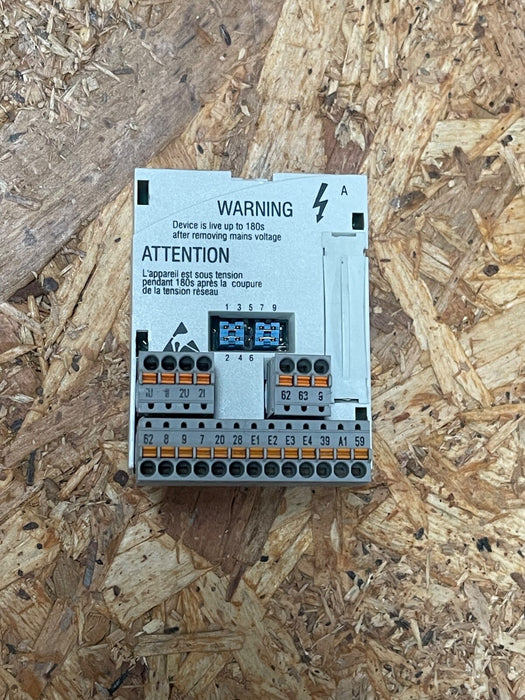

Lenze – E82ZAFAC010 – Application I/O Module, 2 AI/2 AO, 6 DI/2 DO, Plug‑In PT

Main Features

• Manufacturer: Lenze Automation GmbH

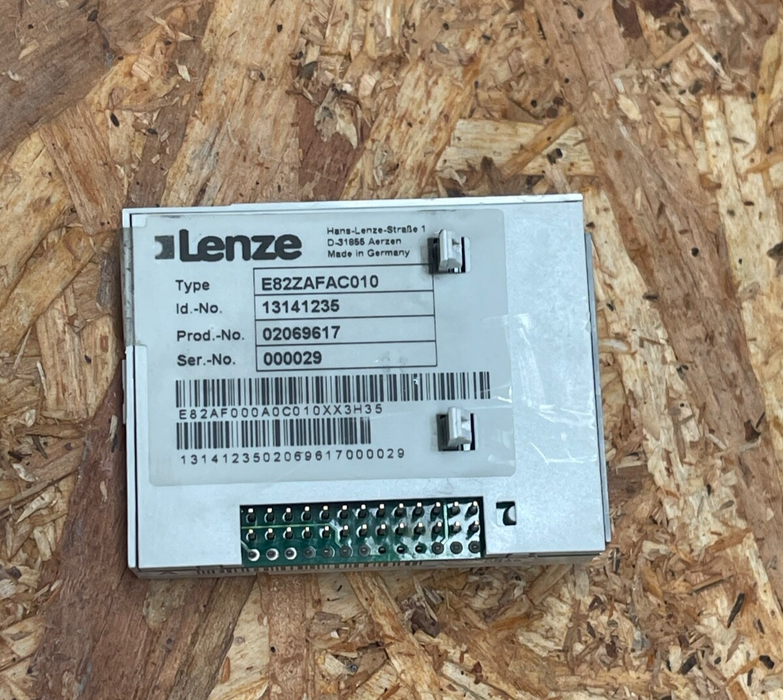

• Model/MPN: E82ZAFAC010

• Module Type: Application I/O electronic module for Lenze 8200 series drives/controllers

• I/O Configuration:

  • 2 analog inputs (10-bit resolution)

  • 2 analog outputs

  • 6 digital inputs

  • 2 digital outputs

• Signal Specs:

  • Analog input resolution: 10-bit

  • Input current spec: 10 mA; output load capacity: 40 mA

  • Input resistance approx. 3.3 kΩ

• Operating Voltage: 24 V DC supply via Lenze controller backplane

• Mounting & Connectivity: Plug-in PT (spring terminal) module; DIN-rail compatible; slim form factor (~0.14 kg)

• Environmental Ranges:

  • Storage temperature: –25 °C to +60 °C

• Status: Discontinued—appears new or refurbished; widely available through surplus suppliers

• Typical Use: Expands 8200 series drive I/O; supports analog and digital control, feedback, and signal interfacing within machine automation systems
