The Lovato LVMP10A240, also referenced as LVM P10 A240, is a modular DIN-rail relay that optimizes motor starter sequences by prioritizing standby motors. Operating at 220–240 VAC, it switches between prime and standby motors automatically upon overload or preset conditions.

Key Features & Specifications

Model / P/N: LVMP10A240 (LVM P10 A240)
Function: Start-up priority change – switches to standby motor on prime motor trip
Supply Voltage: 220–240 VAC ±10 %, 50/60 Hz; power consumption 4.8 VA (3 W)
Relay Outputs:
- 2 × 1 NO (SPST) contacts
- Rated 8 A AC1 @ 250 VAC; max 400 VAC
- Electrical life: 10⁵ cycles; mechanical: 3×10⁶ cycles
Indicators:
- Green LED: Power ON
- Red LED: Relay state
Housing & Mounting:
- Modular DIN-rail format, 3 modules (53.5×104.7×64.9 mm)
- IP40 front, IP20 terminals; self-extinguishing polyamide
Terminals: Screw, conductor range 0.2–4 mm², torque ≤0.8 Nm
Temperature Range: –20 °C to +60 °C; storage –30 °C to +80 °C
Certifications: UL508, IEC/EN 60255-5, IEC/EN 61000-6-2/-6-3, cULus, EAC

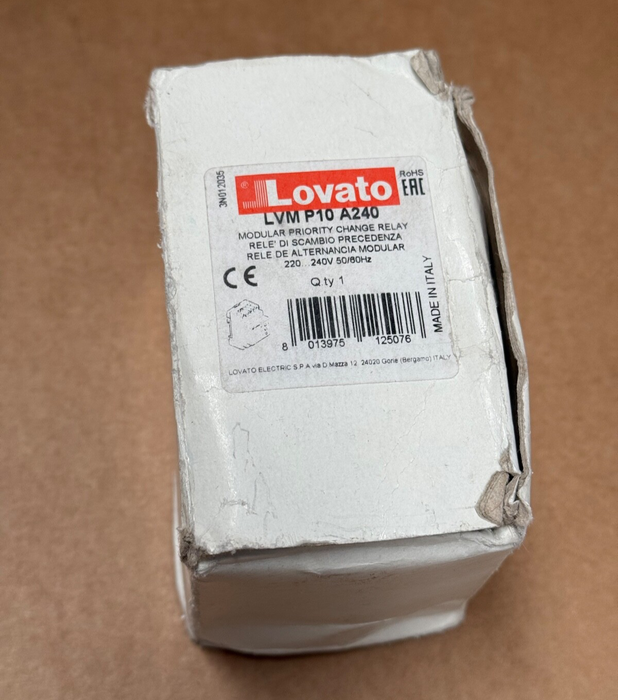

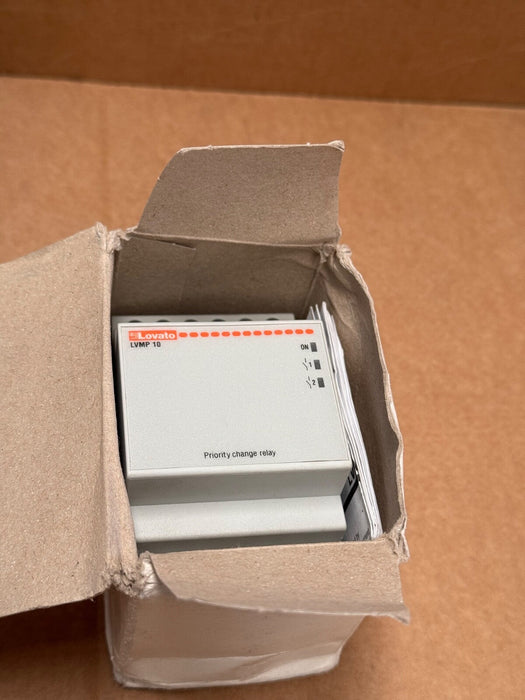

Lovato – LVMP10A240 (LVM P10 A240) – Start-Up Priority Change Relay, 220–240 VAC
