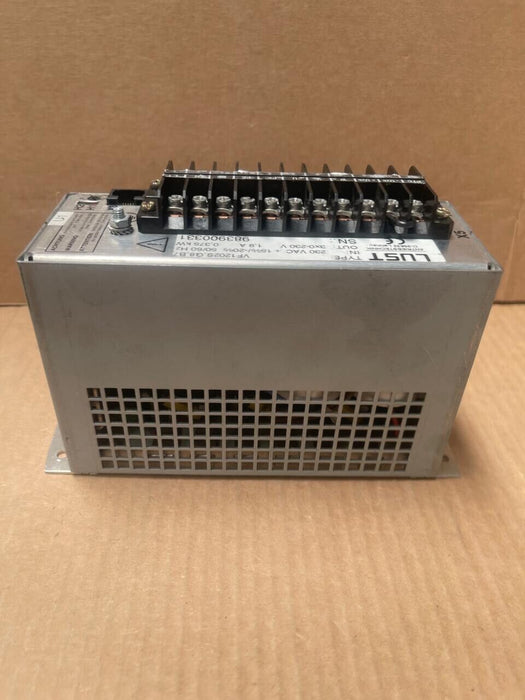

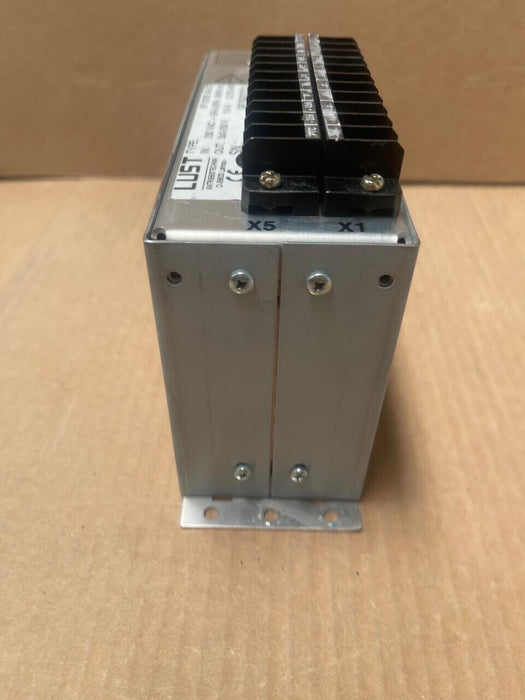

The LUST VF1202S,G8,B7 is a frequency inverter designed for precise control of three-phase AC motors in various industrial applications. Key features include:

• Power Rating: 0.37 kW (0.5 HP), suitable for low-power motor control applications.

• Input Voltage: Single-phase 230 V AC, 50/60 Hz, compatible with standard power supplies.

• Output Voltage: Three-phase 0-230 V AC, providing adjustable voltage to the motor.

• Output Frequency: 0 to 400 Hz, allowing for a wide range of motor speed control.

• Control Inputs/Outputs:

• Analog input for speed reference.

• Digital inputs for start/stop and direction control.

• Relay output for fault indication.

• Protection Features: Overcurrent, overvoltage, undervoltage, and thermal protection to ensure safe operation.

• Dimensions: Approximately 180 mm (Height) x 100 mm (Width) x 150 mm (Depth), facilitating compact installation within control cabinets.

• Operating Temperature: 0°C to +40°C, suitable for standard industrial environments.

• Additional Features:

• Built-in keypad for easy parameter setting and monitoring.

• EMC filter integrated to reduce electromagnetic interference.

• Suitable for applications such as conveyors, fans, and pumps requiring precise motor control.

LUST - VF1202S,G8,B7 - Frequency Inverter, 0.37 kW, 230V AC
