Main Features

Manufacturer: Maxon Motor – EPOS series positioning controllers
Model/MPN: EPOS 24/5, Order No. 275512
Functionality: Compact digital controller for precise positioning of DC or brushless EC motors, with full CANopen and RS‑232 support
Power & Performance:
- Supply Voltage: 11–24 V DC (min/max)
- Continuous Output Current: 5 A; Peak up to 10 A for 1 s
- Power Handling: Motors rated from 5 to 120 W
Interfaces & I/O:
- CANopen DS‑301 & RS‑232 (38 400 baud default)
- 6 digital inputs (configurable, including home/limit switches)
- 2 analogue inputs (0–5 V, 10‑bit resolution)
- 4 digital outputs plus auxiliary 11–24 V, 1.3 A power output
Mechanical:
- Slim module suitable for panel or DIN-rail mounting

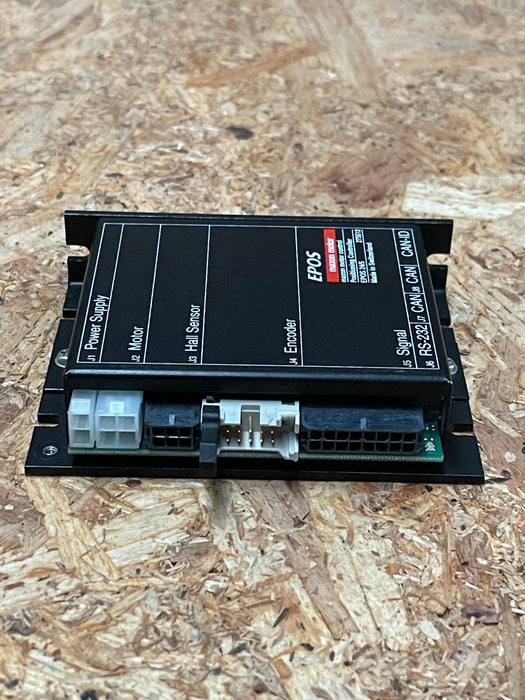

- Compact housing with connectors for J1–J8 and screw terminals
Auxiliary Features:
- Onboard jumper for separate logic power supply
- Built-in motor choke and PWM driver at 50 kHz

Applications:

Designed for compact servo control tasks—ideal in automation, robotic axes, medical devices, and small machine positioning where strong control of DC or brushless motors is critical.
