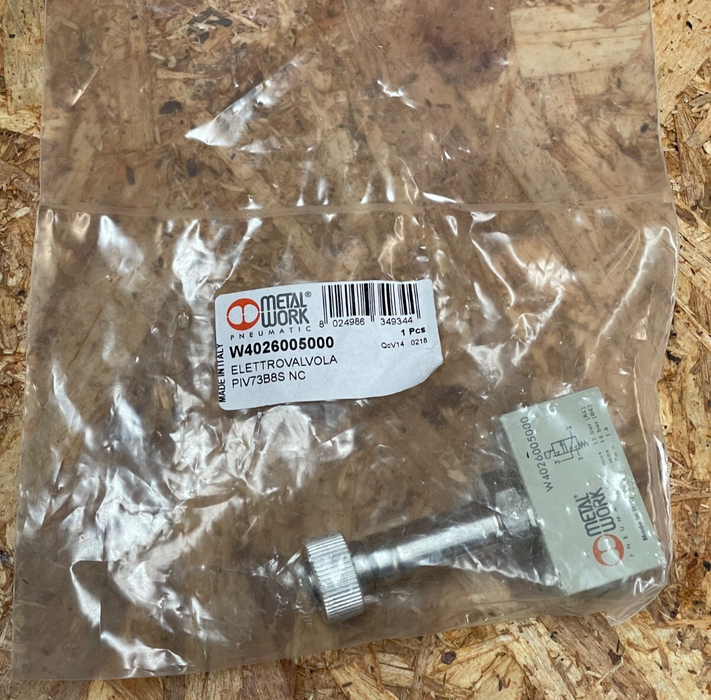

The Metal Work W4026005000 is a compact in-line solenoid valve from the PIV.B series, designed for high-frequency pneumatic applications. Featuring a 3/2-way normally closed configuration with a G1/8” threaded port and a 1.6 mm orifice, this valve ensures reliable and efficient control of air flow in various industrial systems. Its robust aluminum body and steel components provide durability, while the NBR and FKM seals ensure compatibility with filtered, lubricated, or unlubricated air.

Key Features:

Model: W4026005000
Brand: Metal Work
Series: PIV.B
Valve Type: 3/2-way, normally closed
Port Size: G1/8”
Orifice Diameter: 1.6 mm
Kv Factor: 1.4
Operating Pressure: 14 bar (DC), 17 bar (AC)
Body Material: Aluminum
Seal Materials: NBR (Nitrile Rubber), FKM (Fluoroelastomer)
Mounting: In-line
Coil Compatibility: 30 mm DIN 43650 (sold separately)
Protection Class: IP65 (with appropriate connector)
Operating Temperature Range: –15 °C to +50 °C
Applications: Ideal for high-speed pneumatic operations in automation systems, packaging machinery, and industrial process control.
