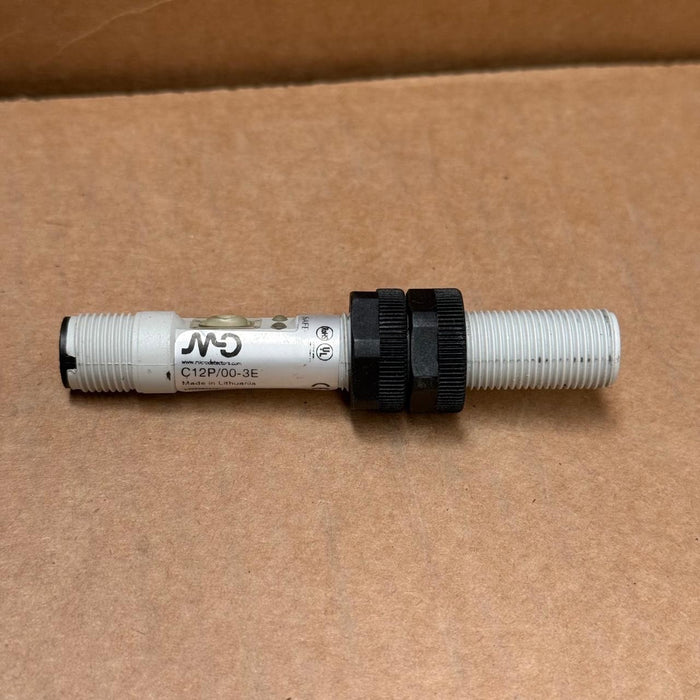

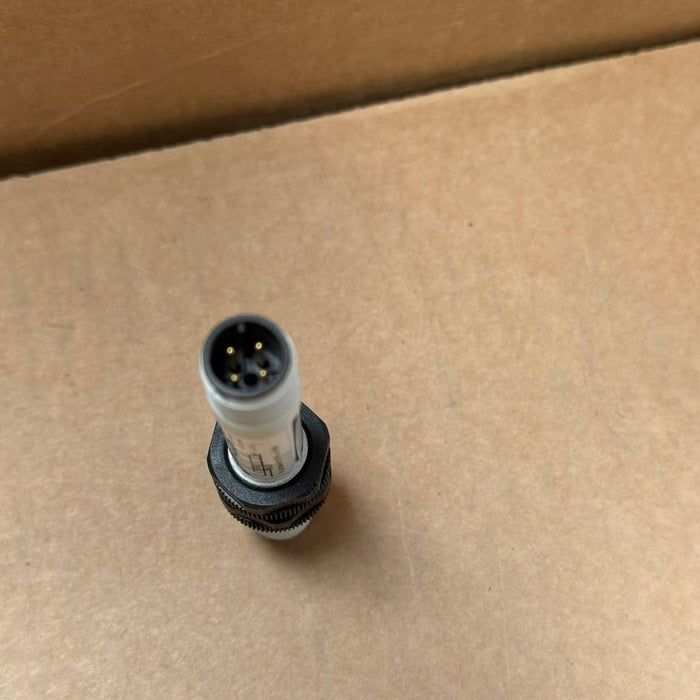

The C12P/00‑3E is a shielded/flush-mount M12 capacitive proximity sensor from Datasensing (formerly Micro Detectors). It features an adjustable auto-teach function and dual NPN/PNP outputs configured for NO and NC operation, offering versatile detection in liquids, plastic, and metal applications.

Key Features:

Model / P/N: C12P/00‑3E
Housing: M12 thread, polyester; length 80 mm; weight ~30 g
Sensing Range: 0.5–4 mm flush, up to 0.5–8 mm non-flush
Outputs: NPN & PNP with NO/NC selection, ≤15 Hz switching
Electrical: 10–40 V DC supply; ≤12 mA idle draw, ≤200 mA load current; ≤2.5 V drop at 200 mA
Indicators: Green LED = power/stability; Yellow LED = output ON
Protection & Durability:
- IP67 sealed
- Reverse polarity and surge protected
- CE and cULus certified
- IEC 60068 shock/vibration rated
Auto-Teach Feature: Hold-to-teach for sensor output and background compensation
Operating Conditions: –35 °C to +85 °C; storage –40 °C to +85 °C
