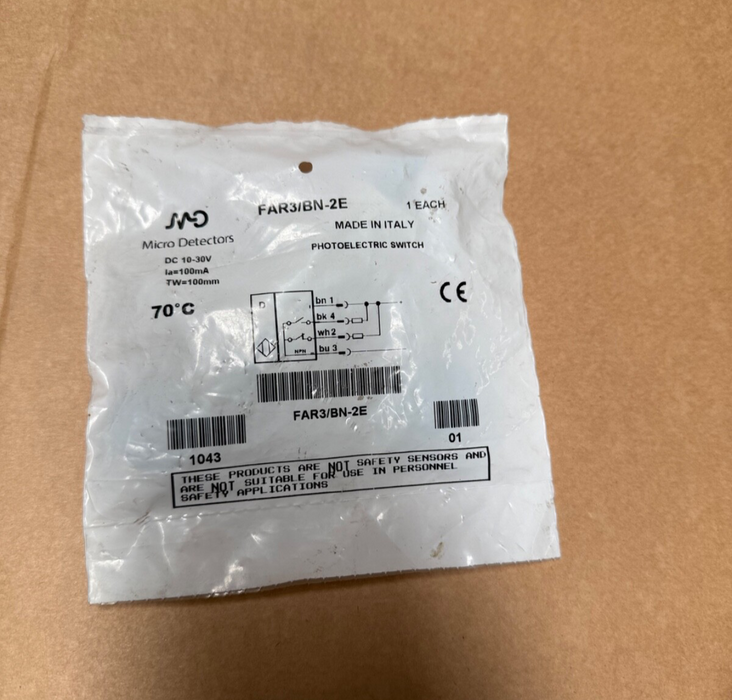

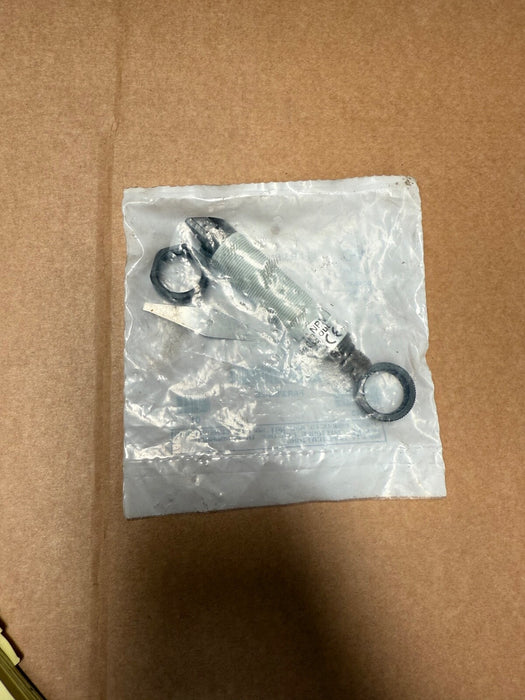

The Micro Detectors FAR3/BN‑2E is an M18-threaded, 90° diffuse (right-angle beam) photoelectric sensor with on-board sensitivity adjustment. It features dual NPN outputs (normally open + normally closed), designed for precise object detection up to 100 mm. Housed in durable plastic with an M12 plug connector, it’s ideal for space-constrained machine vision, packaging, and conveyor systems.

Key Features

Sensing Type: 90° diffuse (right-angle beam); nominal detection at 100 mm on white targets
Output Configuration: Dual NPN outputs (NO + NC); ≤ 100 mA load, ≤ 2 V voltage drop
Power Supply: 10–30 V DC; ≤ 30 mA idle current; ≤ 10 μA leakage
Switching Frequency: 250 Hz; response delay ≤ 200 ms
Ambient Light Immunity: Withstands 3,000 lux incandescent & 10,000 lux sunlight
Size & Housing: M18×92.7 mm plastic bodied; PBT housing with PC lens; M12 4‑pin plastic plug
Environmental Rating: IP67 sealed; resilient to appliances impact, vibration/shock per IEC 60068‑2; operating temp –25 °C to +70 °C
Indicators & Adjustment: Yellow LED for output status; sensitivity set via rear trimmer
Protection Features: Resistant to reverse polarity, electrical transients, short circuits (auto-reset)
Weight & Torque: ~30 g; M18 locknut torque 1 Nm
