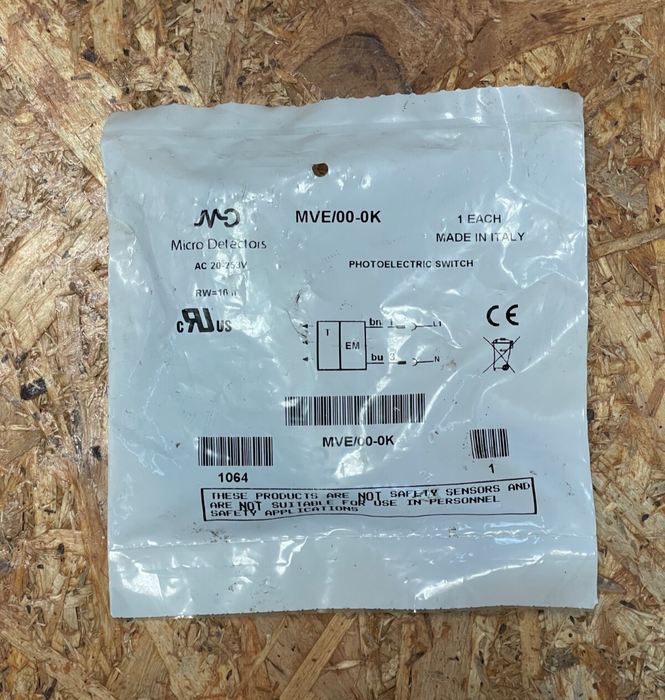

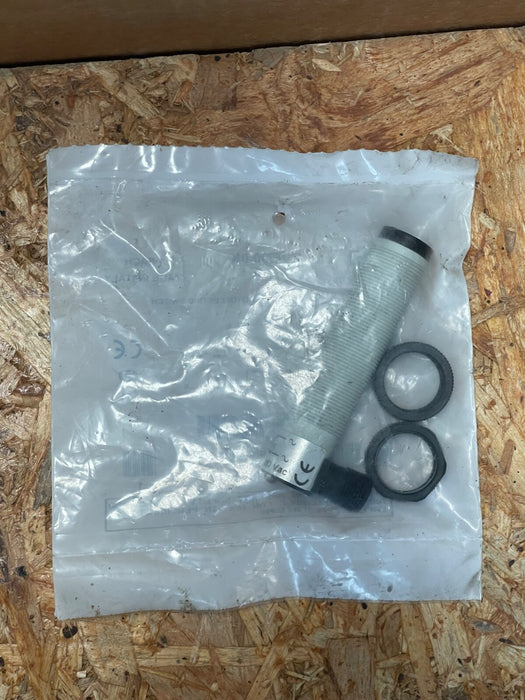

Micro Detectors – MVE/00‑0K – M18 Tubular Through‑Beam Emitter (AC Power)

The Micro Detectors MVE/00‑0K is an AC-powered through-beam photoelectric emitter, designed for long-range object detection in industrial applications. Mounted alongside its matching receiver across up to 16 m, it emits an infrared beam at 880 nm. Ideal for detecting transparent, faint, or distant targets with high reliability.

Key Features:

• Model: MVE/00‑0K (through-beam emitter)

• Sensing Principle: Transmits IR beam (880 nm) to paired receiver – detection up to 16 m

• Operating Voltage: 20–253 V AC, 50/60 Hz

• Current Consumption: ≤ 30 mA RMS

• Load Current Rating: 5–300 mA RMS (receiver side)

• Leakage Current: ≈ 6 mA

• Voltage Drop at Receiver: ≤ 3 V at IL=300 mA

• Residual Ripple: ≤ 10%

• Beam Activation Delay: ~200 ms

• LED Indicator: Red power-on/status LED

• Ambient Light Immunity: Up to 3,000 lux incandescent; up to 10,000 lux sunlight

• Housing: Tubular M18 plastic or optional connectorized variant
