The Micro Detectors SP8/0P‑0E is a rugged M18 tubular diffuse photoelectric sensor with a PNP output. Featuring a 90° (right-angle) optical configuration and a side adjustment potentiometer, it offers up to 800 mm detection range (white target), selectable light‑ON/dark‑ON output, and M12 connector integration—perfect for industrial automation requiring long-range object detection.

Key Features:

• Model: SP8/0P‑0E

• Sensor Type: Diffuse (reflective), 800 mm nominal sensing on white target

• Housing: M18 plastic (PBT), IP67 rated; right-angle optic; active head PMMA

• Voltage Supply: 10–30 V DC; current ≤ 30 mA

• Output: 3-wire PNP, light‑ON/dark‑ON selectable (“0P” designation); load ≤ 100 mA; leakage ≤ 10 µA; voltage drop ≤ 1.2 V @100 mA

• Switching Frequency: 250 Hz

• Indicators: Yellow LED for output state

• Protections: Short‑circuit, reverse‑polarity, impulse overvoltage, EMC EN 60947‑5‑2; resists 3 000 lux incandescent & 10 000 lux sunlight

• Mechanical: Dimensions M18×1, length ~75–78 mm; weight ~30 g; torque 1 Nm

• Operating Temperature: –25 °C to +70 °C

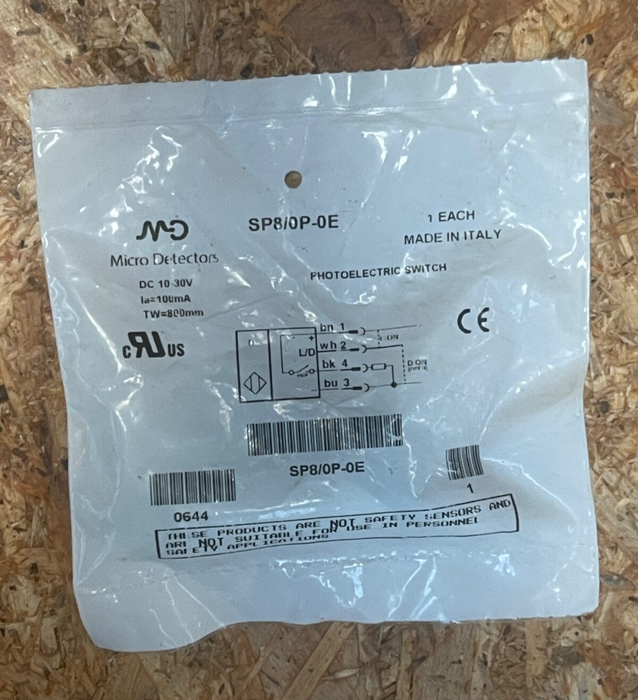

Micro Detectors – SP8/0P-0E – M18 Tubular Diffuse Photoelectric Sensor (PNP)
